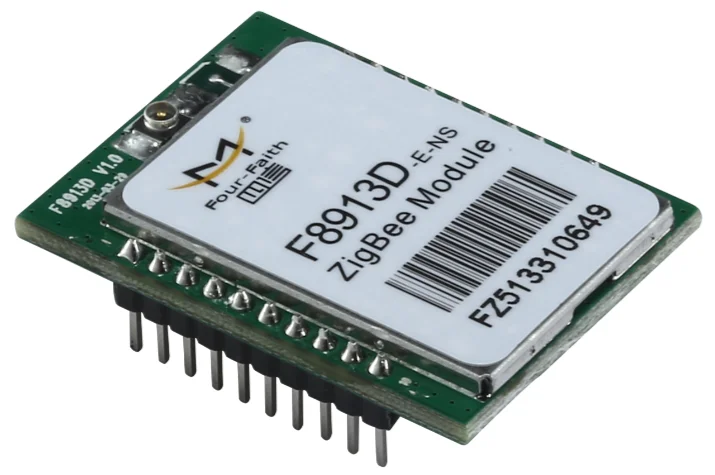

F8913 Smart meter reading using embedded Zigbee Technology
● ZigBee Module Support UART
● ZigBee Module Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest
● ZigBee Module Supply 5 I/O channels,compatible 3 analog inputs and 2 pulse input counters
● ZigBee Module Support ZigBee wireless data transmission
● ZigBee Module Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network
Product Specification
F8913 Model Sheet
Model Content
F8913-N-MS Without PA，SMT
F8913-E-MS With PA，SMT
F8913-N-NS Without PA，DIP
F8913-E-NS With PA，DIP
ZigBee Specification
Item Content
MCU Industrial ZigBee Platform
Communication Protocol and Band IEEE 802.15.4 ISM2.4～2.5GHz
Indoor/Urban Range 30m 90m(With PA)
Outdoor/RF Line-of-Sight Range 500m 2000m(With PA)
Transmit Power 2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA)
RF Data Rate 250Kbps
Receiver Sensitivity -97dBm -103dBm (With PA)
Network Topologies Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Channels 11 to 26
Max serial buffer size 300 Bytes
Interface Type
Item Content
UART
Data bits: 8
Stop bits: 1, 2
Checksum: none,odd,even
Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps
Antenna U.FL RF connector, impedance 50 ohm
Package Support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous
Power Input
Item Content
Recommended Power DC 3.3V/0.1A
Power Range DC 2.0~3.6V
Physical Characteristics
Item Content
Dimensions 37.5 x 22.1 x 2.8 mm
Weight 3.5 g
Environmental Limits
Item Content
Operating Temperature -40~+85ºC (-104~+185 ºF)
Storage Temperature -40~+125ºC (-104~+257ºF)
Operating Humidity 95% ( unfreezing)




Environmental Adaptability.Designed for harsh and unattended environment.



ZigBee Module Small Size, Easy to Embed.
ZigBee Module Small size, light weight, easy for embedded development. Support UART hole, SMT hole, DIP hole..
Low Power Consumption, Long Continuous Working Time.Supports multi-sleep and trigger modes, power consumption of deep sleep is less than 0.5uA.


2KM Communication Distance.
Point to point communication of ZigBee module is up to 2KM, support multi-level relay route, is helpful for creating large networking of long distance.




Large Network Capacity.Network capacity up to 65,000 nodes, hardened steel consumption monitoring, agricultural irrigation and other large projects application.




Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work.Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work.





Compatible with a Variety of Industrial Applications Protocols.Support for smart home, digital oilfield industry and other rich application protocols.


Strong Project Adaptable, Flexible in Use.Integrated transparent transfer, API, AT mode, working mode of ZigBee module can be configured according to the project needs.
Support analog and digital data automatic acquisition and reported, no need for secondary development, shorten the project development cycle.
