Medical Zigbee module
F8913D-E-NS ZigBee module is a kind of data terminal device that provides data transfer function by ZigBee network.
The product uses high-performance industrial-grade ZigBee solution, support transparent data transmission function;
low power consumption design, the lowest working current can less than 1uA; supply 5 I/O channels, compatible 3 analog inputs and 2 pulse input counters.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance,
POS, water supply, environment protection, post, weather, and so on.

SPEC Spec
F8913DModel Sheet
Model
Content
F8913D-N-NS
Without PA,DIP
F8913D-E-NS
With PA,DIP
ZigBeeSpecification
Item
Content
MCU
Industrial ZigBee Platform
Communication Protocol and Band
IEEE 802.15.4
ISM2.4~2.5GHz
Indoor/Urban Range
30m
90m(With PA)
Outdoor/RF Line-of-Sight Range
500m
2000m(With PA)
Transmit Power
2.82 mw (+4.5dBm)
100 mw (+20dBm) (With PA)
RF Data Rate
250Kbps
Receiver Sensitivity
-97dBm
-103dBm (With PA)
Network Topologies

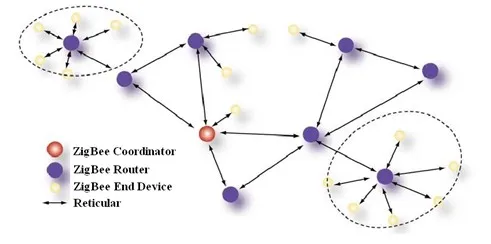

Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Channels
11 to 26
Max serial buffer size
300 Bytes
InterfaceType
Item
Content
UART
Data bits: 8
Stop bits: 1, 2
Checksum: none,odd,even
Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps
Antenna
U.FL RF connector, impedance 50 ohm
Package
Support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous
PowerInput
Item
Content
Recommended Power
DC 3.3V/0.1A
Power Range
DC 2.0~3.6V
Features
Design for Industrial Application
High-powered industrial ZigBee chip Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest Support UART Power range: DC 2.0~3.6VStability and Reliability
Support hardware and software WDT Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
High-performance
Support ZigBee wireless data transmission Support repeater and end-device function Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network Support 65000 nodes Support center node, route node and terminal node F8913D Zigbee Switch Module for ZigBee Medical Care Application Support broadcast and target address transfer Wide communication range Supply 5 I/O channels, compatible 3 analog inputs and 2 pulse input countersStandard and Convenience
Adopt a miniature package, support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous Support intellectual mode, enter into communication state automatically when powered, support several work modes., Convenient configuration and maintenance interface Support for serial software upgrades
Detailed Images

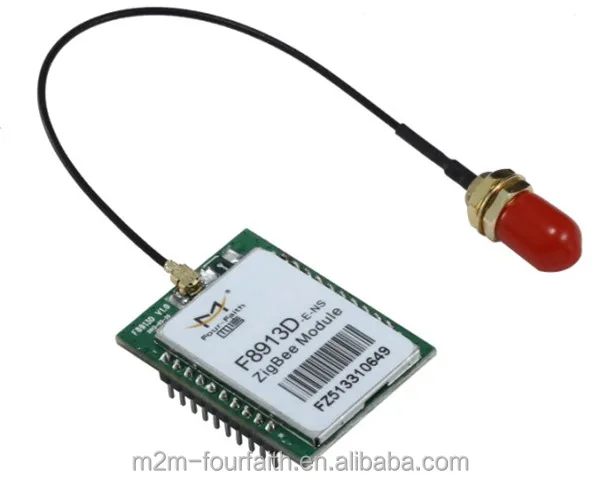

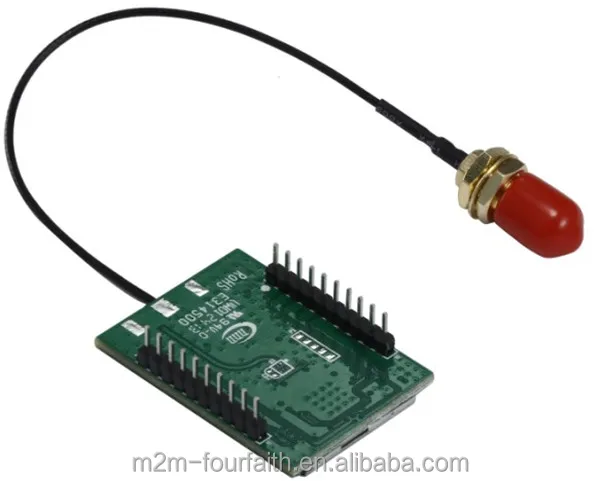

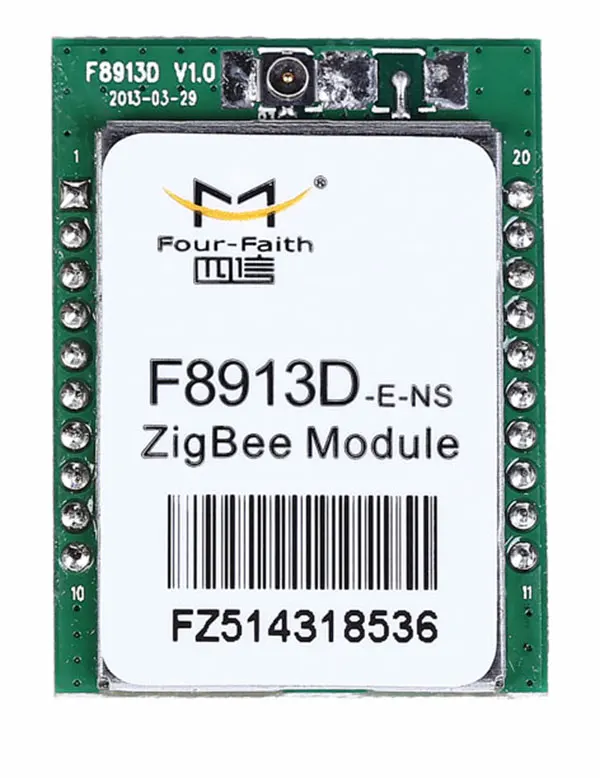

Product Images


Configuration Panel

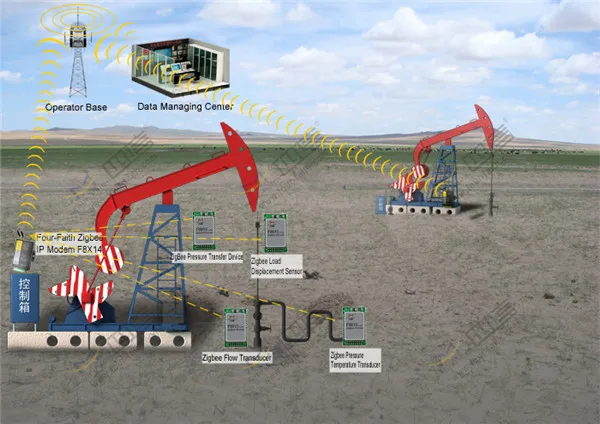

Onsite Image
