F8434 ZigBee Module 3g wcdma wifi router for Heavy Industrial Energy Consumption m

F8434 ZigBee+WCDMA WIFI ROUTER is a kind of cellular terminal
device that provides data transmission function by public
WCDMA/HSDPA/HSUPA/HSPA+ network. Also, it supports ZigBee
function.
It adopts high-powered industrial 32-bits CPU and embedded real time
operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI
port that can conveniently and transparently connect one device to a cellular
network, allowing you to connect to your existing serial, Ethernet and WIFI
devices with only basic configuration. Also, it supports ZigBee function.
It has been widely used on M2M fields, such as intelligent
transportation, smart grid, industrial automation, telemetry, finance, POS,
water supply, environment protection, post, weather, and so on.
Product highlightsDesign for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
High-powered industrial ZigBee module
Support low-consumption mode, including sleep
mode, scheduled online/offline mode, scheduled
power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~35V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including
online detect, auto redial when offline to make
router always online
Ethernet port: 1.5KV magnetic isolation
protection RS232/RS485/RS422 port: 15KV ESD
protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage
protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422),
Ethernet and WIFI port that can connect to serial,
Ethernet andWIFI devices directly
Support standard WAN port and PPPOE protocol
that can connect to ADSL directly
Support intellectual mode, enter into
communication state automatically when
powered Provide management software for remote
management
Support several work modes
Convenient configuration and maintenance
interface(WEB or CLI)
High-performance
Support multiple WAN access methods, including
static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.
Support ZigBee function
Support double link backup between WCDMA and
WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN,
IPSEC and GRE)(only for VPN version)
Support VPN server(PPTP, L2TP, OPENVPN,
IPSEC and GRE)(only for VPN version)
Support local and remote firmware upgrade,import
and export configure file.
Support NTP, RTC embedded.
Support mulitiple DDNS provider service.
Support VLANs, MAC Address clone, PPPoE
Server WIFI support 802.11b/g/n. support AP, client,
Adhoc, Repeater, Repeater Bridge and
WDS(optional) mode.
WIFI support WEP,WPA,WPA2
encryption,Support RADIUS authentication and
MAC address filter.
Support multi online trigger ways, including
SMS, ring and data. Support link disconnection
when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT,
DMZ host , URL block, QoS, ttraff,statistics,
real time link speed statistics etc.
Full protocol support , such as TCP/IP, UDP,
ICMP, SMTP, HTTP, POP3, OICQ, TELNET,
FTP, SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and
Offline,etc.
ProductSpecification Cellular Specification
Cellular Module Industrial cellular module
Standard and Band UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional)
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12
Bandwidth HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+:
21Mbps(Download speed)
TX power <24dBm
RX sensitivity <-109dBm
ZigBee Specification
Item Content
ZigBee Module Industrial ZigBee Platform
Standard and Band IEEE 802.15.4
ISM 2.4 ~2.5GHz Indoor/Urban Range 30m
90m(With PA)
Outdoor/RF
Line-of-Sight Range
500m
2000m(With PA)
Transmit Power
2.82 mw (+4.5dBm)
100 mw (+20dBm) (With PA)
Bandwidth 250Kbps
Receiver Sensitivity
-97dBm
-103dBm(With PA)
Network Topologies Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels 16 Direct Sequence Channels
Channel 11 to 26
Max packge size 300Bytes
WIFI Specification
Item Content
Standard IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security WEP, WPA, WPA2, etc.
WPS (optional)
TX power 21.5dBm(11g),26dBm(11b)
RX sensitivity <-72dBm@54Mpbs
Hardware System
Item Content
CPU Industrial 32bits CPU
FLASH 8MB(Extendable to 64MB)
SDRAM 64MB
Interface type
Item Content
WAN 1 10/100 MbpsWAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps
Indicator "Power", "System", "Online", "ZigBee", " Local Network ", "WAN", " WIFI ", "Signal Strength"
Antenna Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)
ZigBee: standard SMA female interfaces, 50 ohm, lighting protection(optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset Restore the router to its original factory default settings
Power supply
Item Content
Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <480mA (12V)
Physical Characteristics
Item Content
Housing Iron, providing IP30 protection
Dimensions 206x135x28 mm
Weight 790g
Environmental Limits
Item Content
Operating
Temperature
-35~+75ºC(-31~+167℉)
Storage
Temperature
-40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)

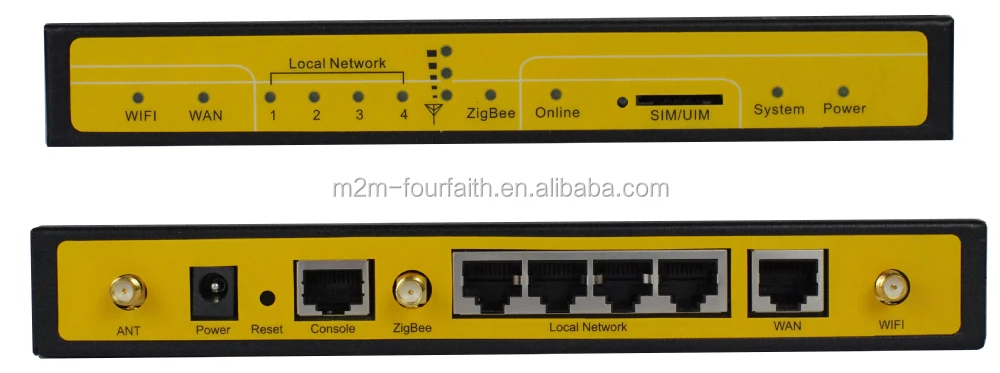

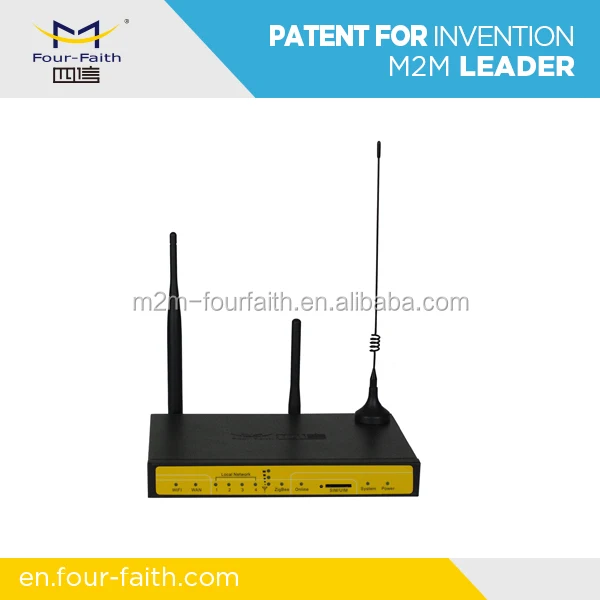

interface Images
