F8414 ZigBee+WCDMA/HSDPA/HSUPA IP MODEM is a kind of data terminal device that provides data transfer function by public WCDMA/HSDPA/HSUPA and ZigBee network.
It adopts highpowered industrial 32 bits CPU and embedded real time operating system. It supports RS232, RS485 (or RS422) and ZigBee port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and ZigBee devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.

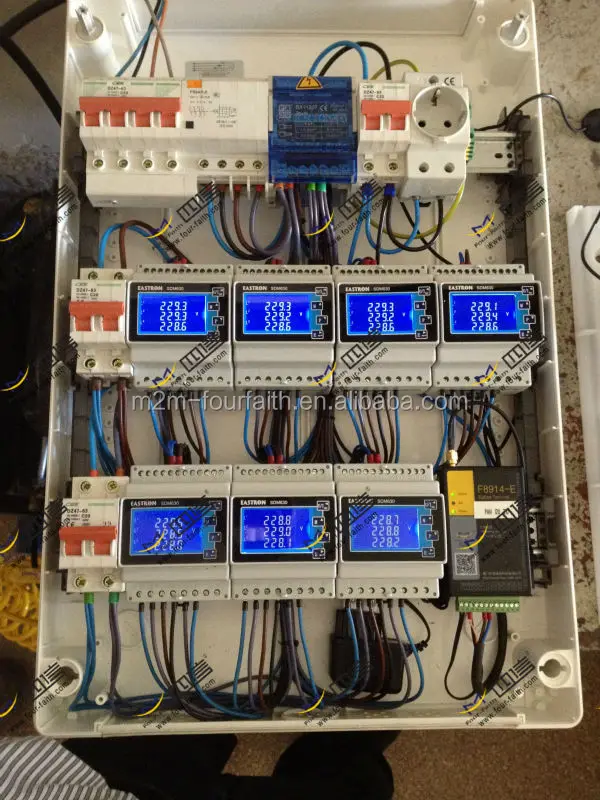

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on
Product highlights Design for Industrial Application
u High-powered industrial cellular module
u High-powered industrial ZigBee module
u High-powered industrial 32 bits CPU
u Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
u Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
u Housing: iron, providing IP30 protection
u Power range: DC 5~35V
u Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
u RS232/RS485/RS422 ports:15KV ESD protection
u SIM/UIM port: 15KV ESD protection
u Power port: reverse-voltage and overvoltage protection
u Antenna port: lightning protection(optional)
Standard and Convenience
u Adopt terminal block interface, convenient for industrial application
Stability and Reliability
u Support hardware and software WDT
u TTL logic level RS232 interface can be customized
u Support intellectual mode, enter into communication state automatically when powered
u Provide management software for remote management
u Support several work modes
u Convenient configuration and maintenance interface
High-performance
u Support data transfer by cellular and ZigBee network
Support TCP server and support multi TCP client connection(optional)
u Support standard RS232, RS485(or RS422) and ZigBee port that can connect to serial and ZigBee devices directly
u Support double data centers, one main and another backup
u Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
u Support multi data centers and it can support 5 data centers at the same time
u Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
u Support dynamic domain name(DDNS) and IP access to data center
u Design with standard TCP/IP protocol stack
Support APN/VPDN
ProductSpecification Cellular Specification
Item
Content
Cellular Module
Industrial cellular module
Standard and Band
UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional)
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12
Bandwidth
HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)
TX power
<24dBm
RX sensitivity
<-109dBm
ZigBee Specification
Item
Content
ZigBee Module
Industrial ZigBee module
Standard and Band
IEEE 802.15.4
ISM 2.4 GHz
Indoor/Urban Range
60m
90m(for enhanced version)
Outdoor/RF Line-of-Sight Range
1200m
3200m(for enhanced version)
Transmit Power
3.1 mw (+5dBm) /Normal mode, 6.3 mw (+8dBm)/Boost mode
63 mw (+18dBm) (for enhanced version)
Bandwidth
250Kbps
Receiver Sensitivity
-102dBm
Network Topologies
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels
16 Direct Sequence Channels
15 Direct Sequence Channels (for enhanced version)
Channels
11 to 26
11 to 25 (for enhanced version)
Interface Type
Item
Content
Serial
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator
"Power", "ACT", "Online", "ZigBee"
Antenna
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
Terminal block interface, reverse-voltage and overvoltage protection
Power Input
Item
Content
Standard Power
DC 12V/0.5A
Power Range
DC 5~35V
Power Consumption
Working States
Power Consumption
Communication
50-85mA@12VDC;115-160mA@5VDC
Standby
25mA@12VDC;45mA@5VDC
Sleep
8mA@12VDC;18mA@5VDC
Timing Power Off
0.6mA@12VDC;1mA@5VDC
Physical Characteristics
Item
Content
Housing
Iron, providing IP30 protection
Dimensions
91x58.5x22 mm
Weight
210g
Environmental Limits
Item
Content
Operating Temperature
-25~+65ºC (-13~+149℉)
Extended Operating Temperature
-30~+75ºC (-22~+167℉)
Storage Temperature
-40~+85ºC (-40~+185℉)
Operating Humidity
95% ( unfreezing)
