F8134 4 LAN port RJ45 Ethernet GPRS wifi ZigBee Gateway for Street Light Control
SPEC Product Specification
Wireless Specification
Item
Content
Cellular Module
Industrial cellular module
Standard and Band
EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
Bandwidth
85.6Kbps
TX power
GSM850/900: <33dBm
GSM1800/1900: <30dBm
RX sensitivity
<-107dBm
WIFI Specification
Item
Content
Standard
IEEE802.11b/g/n
Bandwidth
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security
WEP, WPA, WPA2, etc.
WPS (optional)
TX power
21.5dBm(11g),26dBm(11b)
RX sensitivity
<-72dBm@54Mpbs
ZigBee Specification
Item
Content
ZigBee Module
Industrial ZigBee Platform
Standard and Band
IEEE 802.15.4
ISM 2.4 ~2.5GHz
Indoor/Urban Range
30m
90m(With PA)
Outdoor/RF Line-of-Sight Range
500m
2000m(With PA)
Transmit Power
2.82 mw (+4.5dBm)
100 mw (+20dBm) (With PA)
Bandwidth
250Kbps
Receiver Sensitivity
-97dBm
-103dBm(With PA)
Network Topologies
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels
16 Direct Sequence Channels
Channel
11 to 26
Max packge size
300Bytes

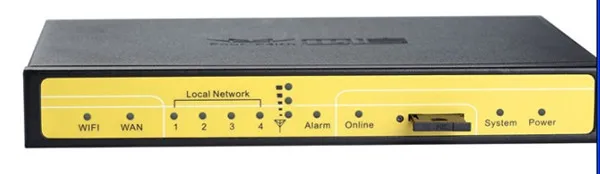

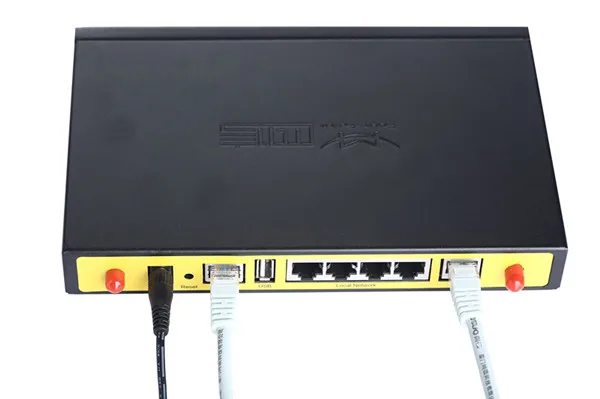

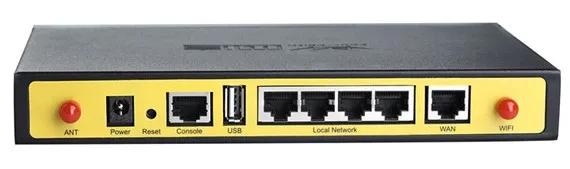

Detailed Images

Features
Design for Industrial Application
High-powered industrial cellular module High-powered industrial 32bits CPU High-powered industrial ZigBee module Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional) Housing: iron, providing IP30 protection. Power range: DC 5~35V
Stability and Reliability
Support hardware and software WDT Support auto recovery mechanism, including online detect, auto redial when offline to make router always online Ethernet port: 1.5KV magnetic isolation protection RS232/RS485/RS422 port: 15KV ESD protection SIM/UIM port: 15KV ESD protection Power port: reverse-voltage and overvoltage protection Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and ZigBee port that can connect to serial, Ethernet and ZigBee devices directly Support intellectual mode, enter into communication state automatically when powered Provide management software for remote management Support several work modes Convenient configuration and maintenance interface(WEB or CLI)High-performance
Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.Support ZigBee functionSupport double link backup between GPRS and WAN(PPPOE, ADSL) (optional)Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)Support local and remote firmware upgrade,import and export configure file.Support NTP, RTC embedded.Support mulitiple DDNS provider service.Support VLANs, MAC Address clone, PPPoE Server WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeoutSupport APN/VPDNSupport DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.Schedule Reboot, Schedule Online and Offline,etc.
Application
