GSX8-LS Low Power GPRS Modbus data logger water pump remote control
Product specifications
Product Model
GSX8-LS
Temperature range
-55 ~ 125 C
Power Rating
< 10 uA, sleep mode
Humidity Range
0 - 99%RH
Analog Channel
4~20mA
Product Feature
8 Temperature Sensors , portable
Digital Input
Dry Contact
security
anti explosive
Analog Channel
public
Product basic information
Product detail

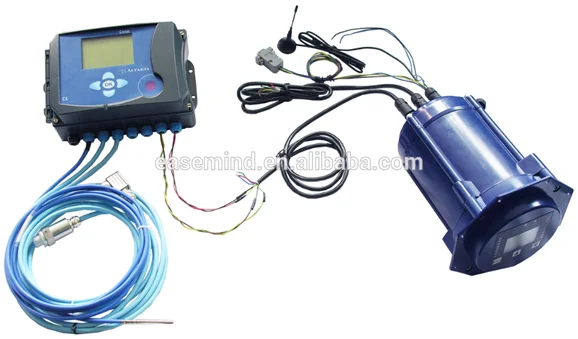

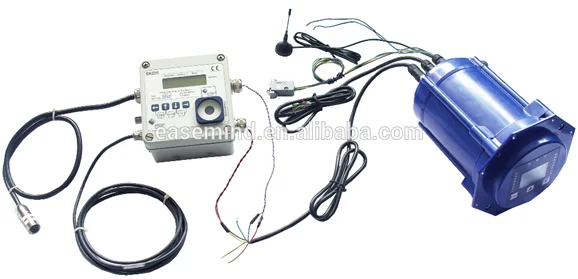

It is a Low Power GPRS Modbus data logger water pump remote control with numerous Input and Outputs.
Its sleep mode provides average 2 years non-stop operation with internal battery.
Product Overview
* RS232/485 Modbus Interface
* 1 Temperature Sensor
* 2 Analog Channels
* 4 Digital Inputs
* 4 Pulse Channels
Data is logged from Modbus Meter and uploaded via GPRS or SMS.
Its internal 64KB memory logs more than a year data for one record each day.
Data can be uploaded to server at once a day to save power.
Flexible data logging interval starts from 1 minute up to 24 hours.
Product Features
1) Real Time GPRS and SMS Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via RS232 by PC software
6) Remote Setup by SMS or GPRS
7) RS232/485 Port support data capturing from Modbus devices
8) Support Dynamic Domain Name or Fixed IP, UDP / TCP protocol data transmission
9) Internal high capacity battery
ProductFree Software
[1] Data Logger Setup software is bundled for routine configuration via SMS remotely, or via RS232 port locally
[2] Data Logger Centre software is also provided for receiving data via GPRS.
[3] UDP/TCP Testing Tool is provided for easy communication testing and user development
ProductApplications
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial Equipment Monitoring
* rural Equipment Monitoring e.g. Power Plant
* measuring equipment data capture and report via SMS/GPRS
* Food, storage, transport industry, building management
* Agricultural, laboratory, medical industry



Software
(1) Setup Software
Free and User-Friendly Setup Software for Windows provides a user-friendly graphics interface of configuring the Smart Data Logger.
It allows user to save, export and import the configuration file.
(2) Centre Software
Free Centre Software is a small tool to receive data via GPRS, Ethernet or Wi-Fi for testing purpose.
(3) NET Client App for Windows, iPad, Android
Free NET Client accesses the live data or logged data from Smart Data Logger directly. It then displays the sensor readings in graphics modes on PC, iPad or Android tablet.
It allows user to monitor the real time sensor reading in graphics chart or HMI.
(4) Ultimate Server Client Software Package [Optional]
Ultimate Server is designed to manage a large number of Smart Data Loggers. It handles the data receiving via GPRS, Ethernet, Wi-Fi and SMS in both UDP and TCP protocol simultaneously. It manages the database of incoming data, data loggers and remote client users.
Ultimate Client allows user to monitor both real time data and historical data in graphics chart or HMI.
