Energy saving city public outdoor IP66 50W 60W led street light with smart control system

LED street light meet the following industry standards:
1.IESNA Illuminating Engineering society of North America – Lighting Handbook.
2.IES LM-80-08: Approved Method for Measuring Lumen Maintenance of LED Light Sources.
3.IEC 60598-2-3: Luminaires – Particular requirements - Luminaires for road and street lighting.
4.IEC 60529 :Degrees of protection provided by enclosures (IP 66) .
5.IEC 62262 :Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK08) .
60W LED street light product features:

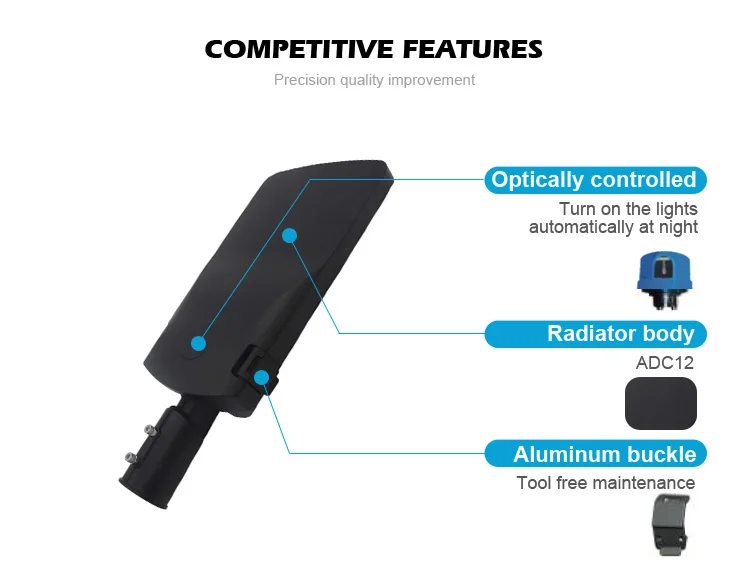

1.Great structure with slim and compact design - Fine surface treatment
2.Anti-aging powder coating - High shock and impact resistant
3.Low color shifting and low light decay

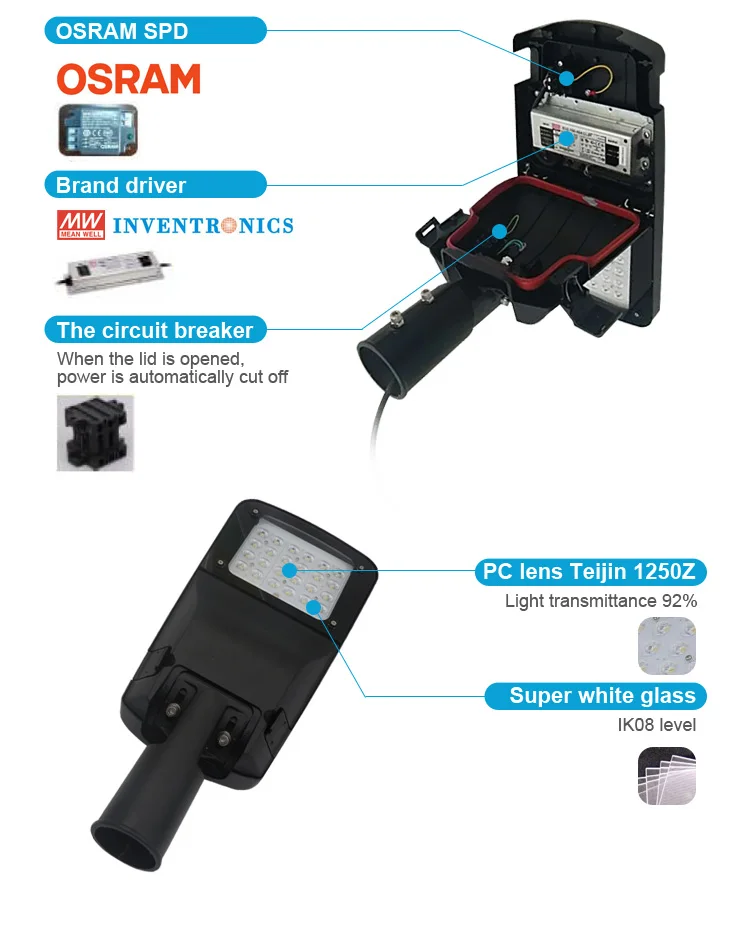

4.Adopting Taiwan Meanwell® or the same standard IP67 waterproof power supplies, providing better electronic performance.
5.High purified aluminum heat sink,Advanced heat conduction providing long life of the LEDs
60WLED Street Light Advantage:
1.This street light paramters and function meet the demands of build a modern intelligent city.
2.It have a modular design to upgrade / replace with new LED modules or LED drivers at site.
3.The luminaires be fully compatible with future LED upgrades when they become available.
Product Parameters
Item
2
3
3
4
5
Rated Power
50w
60w
70w
80w
100w
LED Qty
60pcs
60pcs
96pcs
96pcs
128pcs
Net Weight
7.6kg
7.9kg
7.8kg
7.9kg
7.9kg

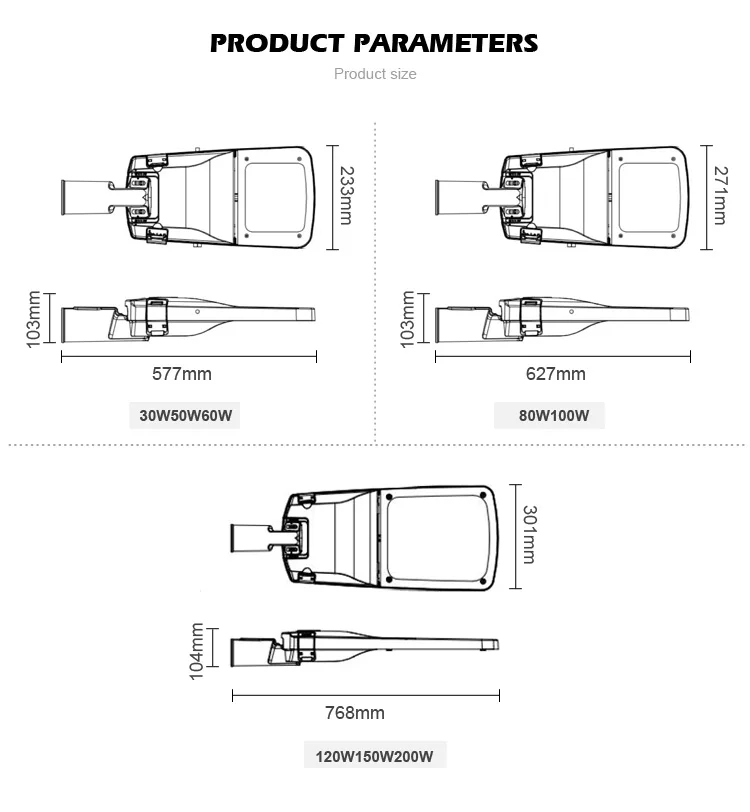

Product Size (mm)
570*240*103
570*240*103
630*271*103
630*271*103
768*300*104
Input Voltage
220-240V AC
Efficiency
>125lm/W
CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI
>75Ra
Power Supply Efficiency
>95%
Power Factor
>0.95 at full load

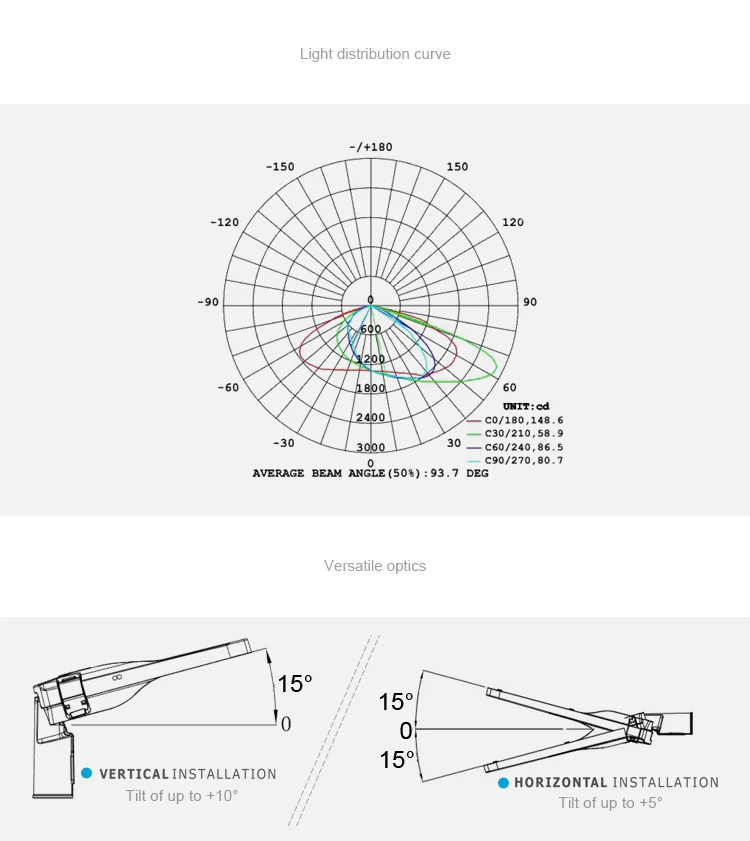

6Beam Angle
80°*150°
Control Options
-Automatic Time Dimming(6 Time Phase) ;
-Control Options Photocell ;
-Intellectual Control System ;
Lens Materials
PC
Lamp Materials
Aluminum
Working Temp.
-40°C - 50°C
Working Humidity
10%-90%
Installation
Side Bracket Installation (40-60mm)
Protection Grade
IP66
