Puncture-mounted power meters can measure single-phase or three-phase loop power grid parameters, The meter adopts the open current transformer access method, which supplies power to the entire instrument and measures the full power parameter through the puncture method. The product can be installed without interrupting power.
Product name
Elecnova SDT13 Puncture-mounted LoRa/RS485 AC kwh meter digital 3 phase with rs485
Data refresh time
1s
Accuracy
Voltage 0.5Current 1
Frequency ±0.01Hz
Power, power factor 1
Parameter measurement
voltage, current, power, frequency, energy, demand, limits, total harmonic distortion, 2-31 harmonic content, voltage and current imbalance and other parameters
Communication interface
RS485, Modbus-RTU protocolLoRa wireless

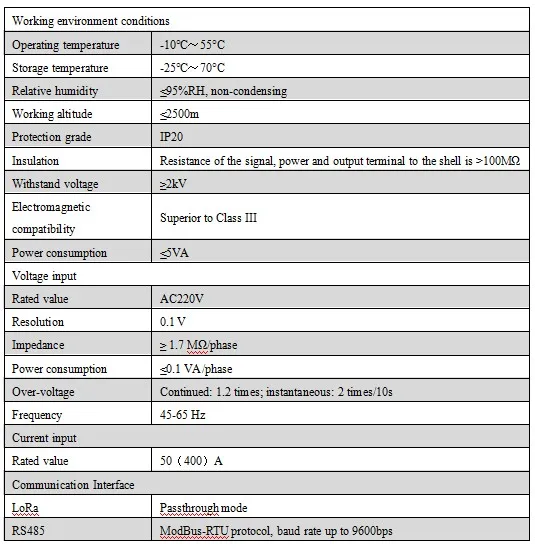

Tech specification

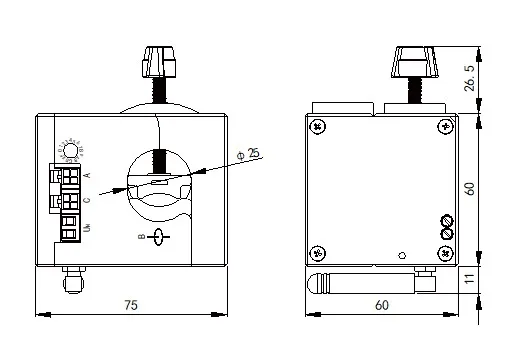

Size

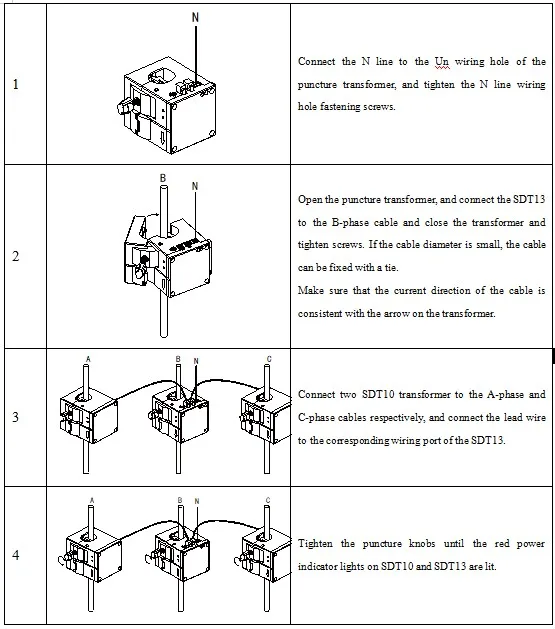

Installation

Packing & Delivery



Air bag protection
Inner box for each
Master carton box

Delivery and Shipment
Delivery time: 5-7days after sales confirmation
Transportation: By Air or by Sea
Port of laoding: Shanghai port, or Any port of China
Product guaranty: 2 years
