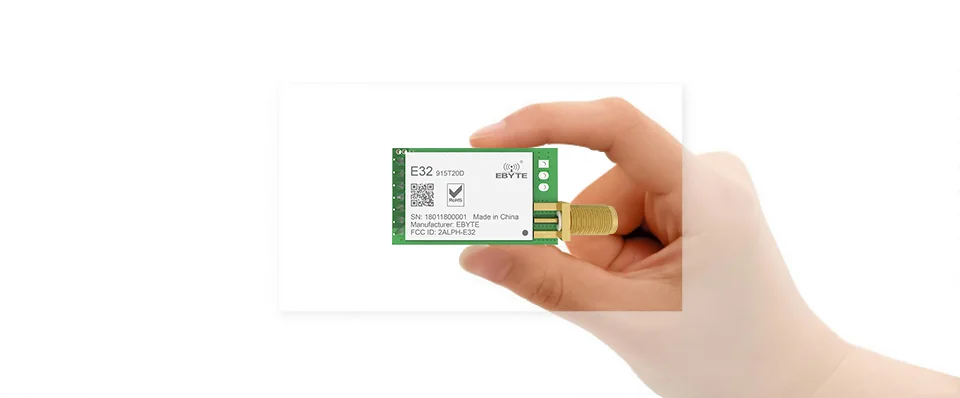

Ebyte E32-915T20D lora 20dBm lora 915MHz SX1276 uhf transmitter and receiver
Brand
Ebyte
IC
SX1276
Model
E32-915T20D
Interface
UART
Power
20dBm
Distance
3000m
RF connector
SMA-K
Frequency
915MHz (900-931MHz)
E32-915T20D is a 100mW wireless transceiver module with LoRa spread-spectrum technology, operates at 900~931MHz (Default: 915MHz), based on originally imported RFIC SX1276 from SEMTECH, transparent transmission is available, TTL level. The module adopts LoRa spread-spectrum technology, which means the transmitting distance is much longer than before. The advantages of this module is more concentrated power density and better anti-interference performance.



Electrical parameter
General parameters
Antenna type
SMA-K
50Ω characteristic impedance
Operating temperature
-40 ~ +85
-
Operating humidity
10% ~ 90%
Relative humidity,No condensation
Storage temperature
-40 ~ +125
-
Size
21*36mm
-
Weight
6.7g
Average weight
Connector
1*7*2.54mm
Plug-in
Operation Range
About 3000m
Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 2.4kbps
Communication interface
UART
8N1, 8E1, 8O1,Eight kinds of UART baud rate, from 1200 to 115200 bps
Driving mode
UART
Can be configured to push-pull/high pull, open-drain
Transmitting length
512 bytes buffer
58 bytes per package
Receiving length
512 bytes buffer
58 bytes per package
Electrical parameters
Frequency Band 900 - 931MHz Default: 915MHz, channel:32
Supply voltage 2.1 - 5.5V DC 5V (recommended)
Communication voltage
Maximum 5.2V
-
Transmitting power 20dBm Can be configured to 20, 17, 14, 10dBm
Air data rate 2.4kbps 6 optional level(0.3, 1.2, 2.4, 4.8, 9.6, 19.2kbps)
Standby current 3.0uA M1=1, M0=1 ( Mode 3 )
Transmitting current 120mA@20dBm >300mA
Receiving current
14mA
Mode 0,Mode 1
Sensitivity
-138dBm/0.3kbps Sensitivity has nothing to do with baud rate or timing
Pin definition

PinA No.
Pin item
Pin direction
Pin application
1
M0
Input
(weak pull-up)
Work with M1 & decide the four operating modes.
Floating is not allowed, can be ground.
2
M1
Input
(weak pull-up)
Work with M0 & decide the four operating modes.
Floating is not allowed, can be ground.
3
RXD
Input
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input, see more in parameter setting.
4
TXD
Output
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output,see more in parameter setting.
5
AUX
Output
To indicate module"s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output (floating is allowed).
6
VCC
Input
Power supply refers to 2.1V-5.5V DC
7
GND
Input
Ground
8
Fixing hole
Fixing hole
9
Fixing hole
Fixing hole
10
Fixing hole
Fixing hole
