Ebyte E18-MS1-PCB Zigbee 2.4ghz cc2530 module with a pcb antenna
[ Model ]:E18-MS1-PCB
[ Interface ]:SPI(SMD)
[ Power ]:4dBm
[ Distance ]:200m
[ Antenna type ]:PCB Antenna
[ Frequency ]:2.4GHz(2405 ~ 2480MHz)
[ Feature ]:E18-MS1-PCB is based on original imported RF chip CC2530 form TI in American. The IC chip is integrated with 8051 microcontroller and wireless transceiver inside, which is applicable to Zigbee design and 2.4GHz IEEE 802.15.4 protocol. All the IO ports are led out by the module, which means that multi-aspect development is realizable.

Electrical parameter No.
Parameter item
Parameter details
Description
1
RF IC
CC2530
TI
2
Size
23 * 14.1mm
Whole
3
Weight
1.2g
Whole
4
Frequency
2405 ~ 2480MHz
2.4GHz IEEE 802.15.4 protocol
5
Production process
4 layer
SMT, ENIG Lead-free n
6
Connector
3 * 8 * 1.27mm
SMD
7
Supply voltage
2.0 ~ 3.6V DC
Notes: the voltage higher than 3.6V is forbidden
8
Communication level
0.7VCC ~ 5V
VCC refers to the supply voltage
9
Operation Range
200m
Test condition: Clear and open area, 4dBm,antenna gain: 5dBi ,height: 2m,Air date rate: 250kbps
10
Max Power
Maximum 4dbm
About 2.5mW
11
Air data rate
250kbps
12
Sleep current
1.2uA
MCU in sleep,wireless closed,VCC=3.3V
13
Transmitting current
28mA@4dBm
The largest emission current
14
Receiving current
27mA
Receives an average current
15
Communication interface
I/O
See details in Pin definition
16
Transmitting length
1~103 bytes
For one package
17
Receiving length
1~103 bytes
For one package
18
RSSI support
Available
19
Antenna type
PCB
Default: PCB (50 ohm characteristic impedance)
20
Operating temperature
-40 ~ +85
Industrial-grade
21
Operating humidity
10% ~ 90%
Relative humidity, without condensation
22
Storage temperature
-40 ~ +125
Industrial-grade
23
Sensitivity
-97dBm@250kbps
See more details in CC2530 datasheet

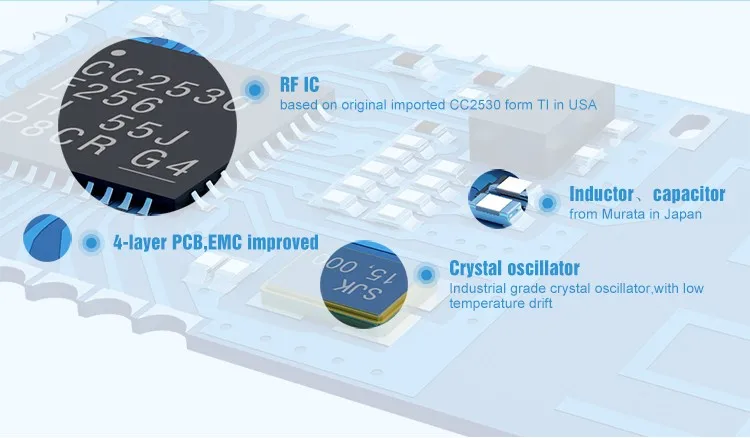

Product Feature

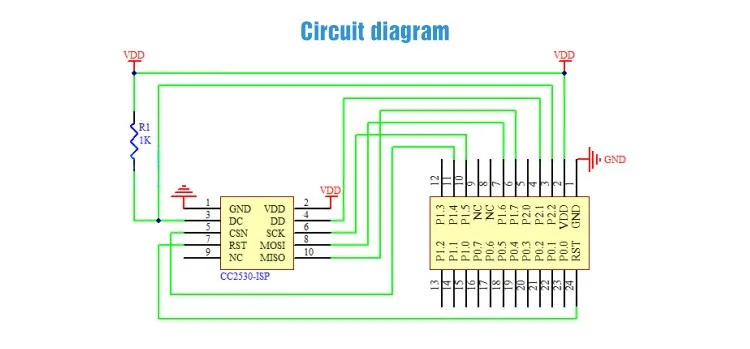

Pin Definition

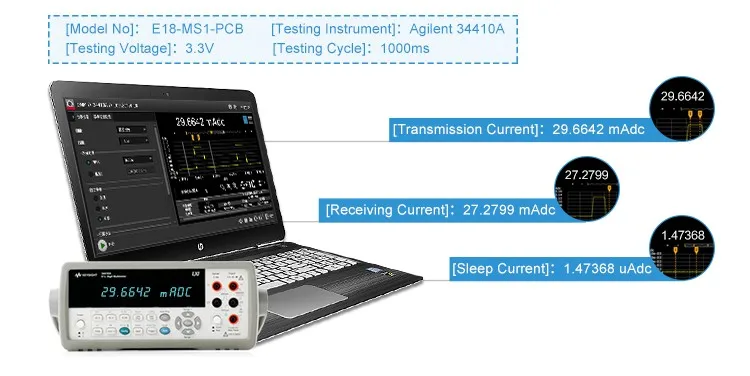

Test Report
