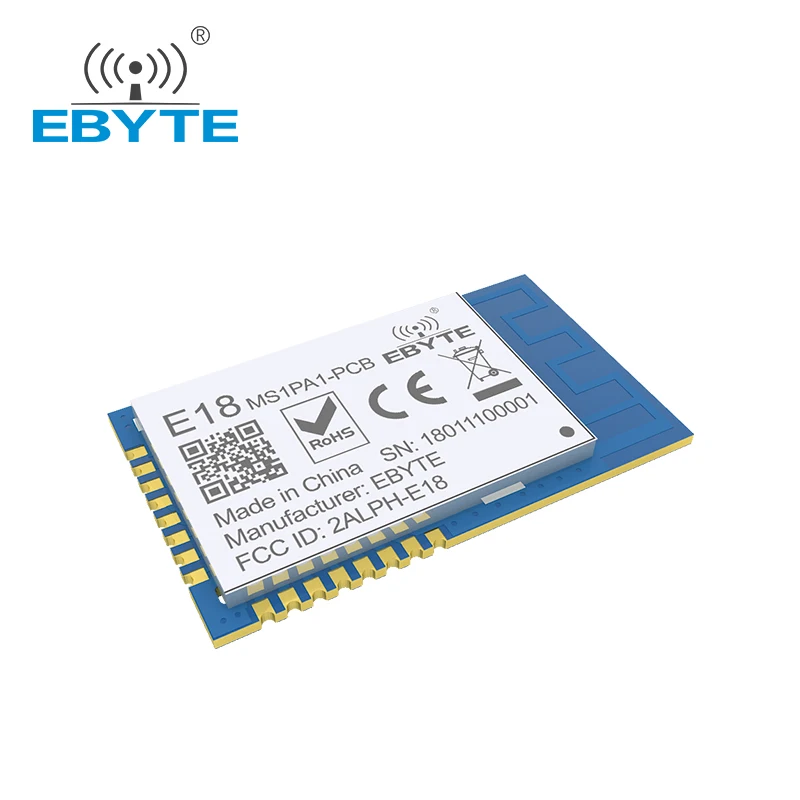

E18-MS1PA1-PCB 1km CC2530 PA+LNA 2.4GHz zigbee transmitter and receiver moduleE18-MS1PA1-PCB 1km CC2530 PA+LNA 2.4GHz zigbee transmitter and receiver module


[ Model ]:E18-MS1PA1-PCB
[ Interface ]: SPI
[ Power ]:20dBm
[ Distance ]:1000m
[ Antenna type ]:PCB Antenna
[ Frequency ]:2.4GHz(2405 ~ 2480MHz)
[ Feature ]:E18-MS1PA1-PCB is based on original imported RF chip CC2530 form TI in America. The IC chip is integrated with 8051 microcontroller and wireless transceiver, which is applicable to Zigbee design and 2.4GHz IEEE 802.15.4 protocol. and equipped with power amplifier chip CC2592, the transmitting range is much longer than before.

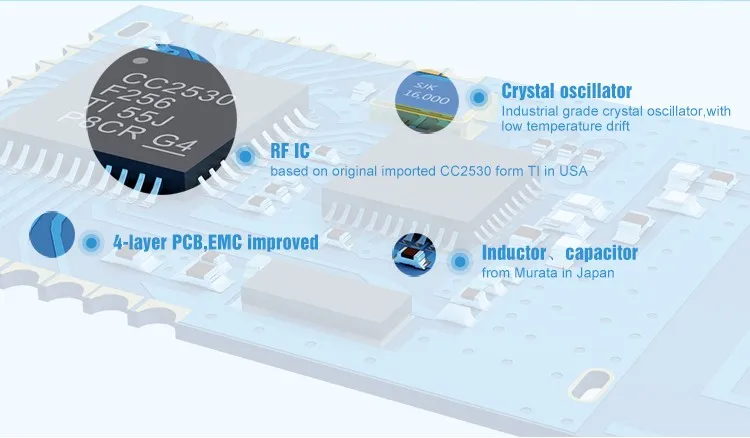

Products feature

Applications

Electrical parameter
No.
Parameter item
Parameter details
Description
1
RF IC
CC2530
TI
2

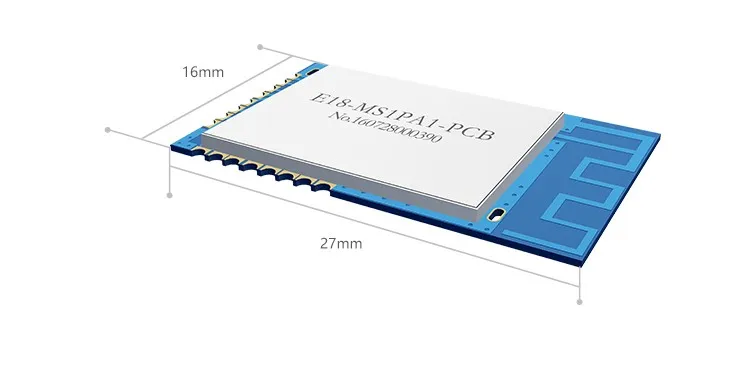

Size
22.5 * 16mm
Without antenna
3
Weight
1.46g
Without antenna
4
Frequency
2405 ~ 2480MHz
2.4GHz IEEE 802.15.4 protocol
5
PCB Technology
4 layer
ENIG,Lead-free
6
Connector
3 * 8 * 1.27mm
SMD
7
Supply voltage
2.0 ~ 3.6V DC
Notes: the voltage higher than 3.6V is forbidden
8
Communication level
0.7VCC ~ 5V
VCC refers to the supply voltage
9
Operation Range
1000m
Test condition: Clear and open area, 4dBm,antenna gain: 5dBi ,height: 2m,Air date rate: 250kbps
10
Max Power
Maximum 20dbm
About 100mW
11
Air data rate
250kbps
12
Sleep current
1.2uA
MCU in sleep,Wireless closed,VCC=3.3V
13
Transmitting current
140mA at 20dBm
Power supply capacity must be greater than 300mA
14
Receiving current
42mA
Receives an average current
15
Communication interface
I/O
See details in Pin definition
16
Transmitting length
1~103 bytes
For one package
17
Receiving length
1~103 bytes
For one package
18
RSSI support
Available
19
Antenna type
PCB
20
Operating temperature
-40 ~ +85
Industrial-grade
21
Operating humidity
10% ~ 90%
Relative humidity, without condensation
22
Storage temperature
-40 ~ +125
Industrial-grade
23
Sensitivity
-97dBm at 250kbps
More detailes please see CC2530 datasheet
Pin Definition

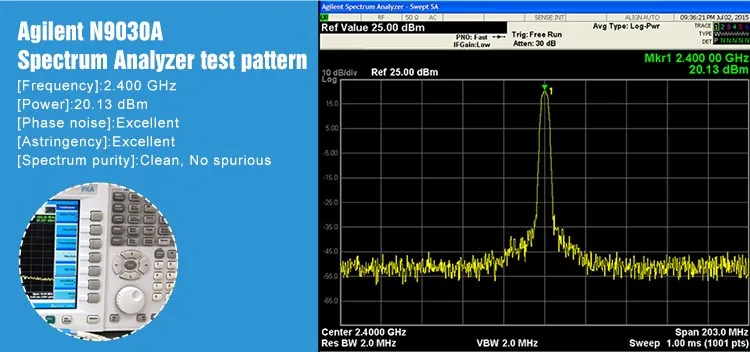

Test Report
