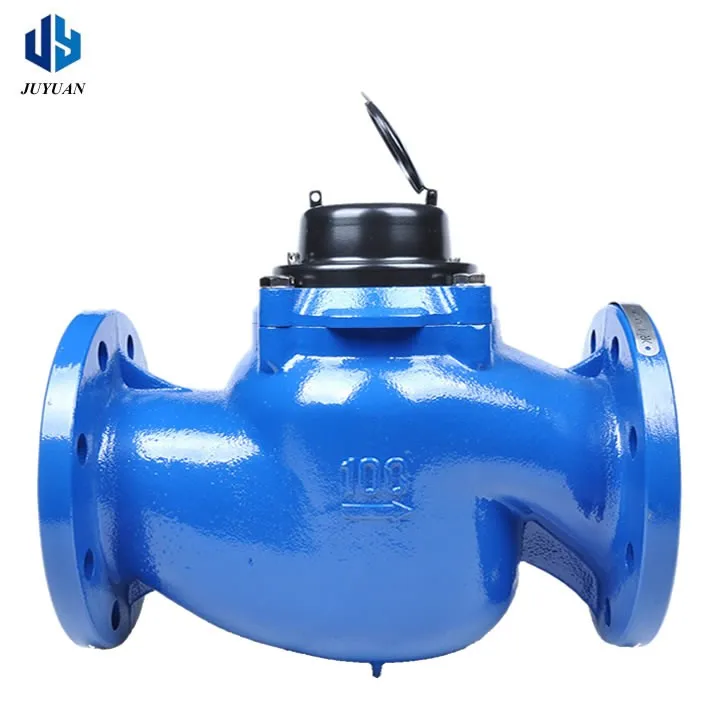

Vertical Screw Wing Series Water meter Product introduction
Vertical Screw Wing Series is a detachable vertical screw-wing water meter with direct reading and remote transmission technology. It has the advantages of high measuring accuracy, wide measuring range, large circulation capacity and long service life. This series of products adopt multi-seal structure: Firstly, the seal counter is designed as mechanical seal, which effectively avoids the pressure difference between inside and outside of vacuum seal and many unfavorable factors. At the same time, in order to prevent the condensation phenomenon of the residual air in the seal counter caused by mechanical seal during the alternation of cold and heat, it will produce to the circuit. Components cause certain damage, the sealed counter is equipped with a desiccant as a two-way waterproof and moisture-proof way, which effectively protects the circuit components; secondly, in order to prevent the sealed counter from entering the sealed counter due to external water pressure or humid air, the mechanical seal structure is also used for the outer part of the sealed counter and the remote transmission line part. At the same time, in order to remove the residual air brought by the external seal, two special spaces for drying agent are designed inside the flange as external waterproof and moisture-proof methods. This sealing structure will seal all possible inlets of water and moisture inside and outside the sealed counter. The dust-proof and water-proof grade reaches IP 68. Even if immersed in water for a long time, it will not affect the normal reading and remote signal output. The transparent cover of the sealed counter adopts the structure design with amplification function, which makes the reading easier to read. The machine core is designed as a detachable structure, so that the water meter does not need to be removed from the road, and the machine core can be taken out for repair or replacement and maintenance.

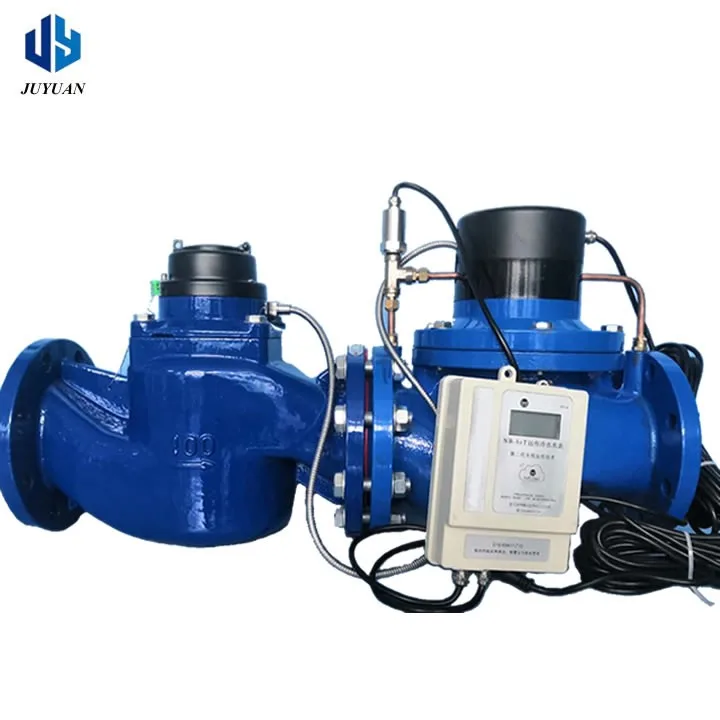

Vertical Screw Wing Series can add valves, increase pressure sensing, support IC card, LoRa, NB-IOT, photoelectric transmission, etc.

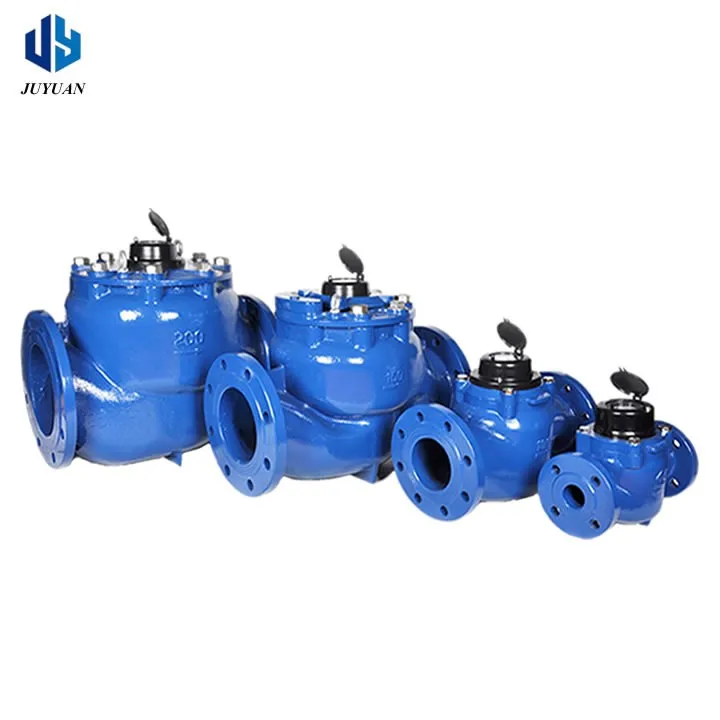

Product parameters of vertical screw-wing water meter
Model
WS-50
WS-80
WS-100
WS-150
WS-200
Diameter (mm)
50
80
100
150
200
Range ratio
R200
Q4(m3/h)
50
80
125
312
500
Q3(m3/h)
40
63
100
250
400
Q2(m3/h)
1.25
2.0
3.12
7.88
12.5
Q1(m3/h)
0.2
0.32
0.5
1.25
2
Min reading (m³)
0.0005
Max reading (m³)
999999
Working water pressure
0.05MPa---1.6MPa
Ambient temperature
0.1-50
Pressure loss grade
≦0.05MPa
Installation mode
Horizontal(H)
Working temperature
Cold water meter:T40 Hot water meter:T90
Indicative error
Low area:≦±5%(cold,hot) High area:≦±2%(cold)≦3%(hot)
Accuracy grade
2 Grade
Protection Level
IP68
Service life
10 Years
Communication interface
RS-485,MBUS,LoRa,NB-Iot
Battery model
ER18505M-3.6V
Battery life
6 Years
Number of Valve Opening and Closing
More than 15,000 times
Working condition
No vibration phenomenon

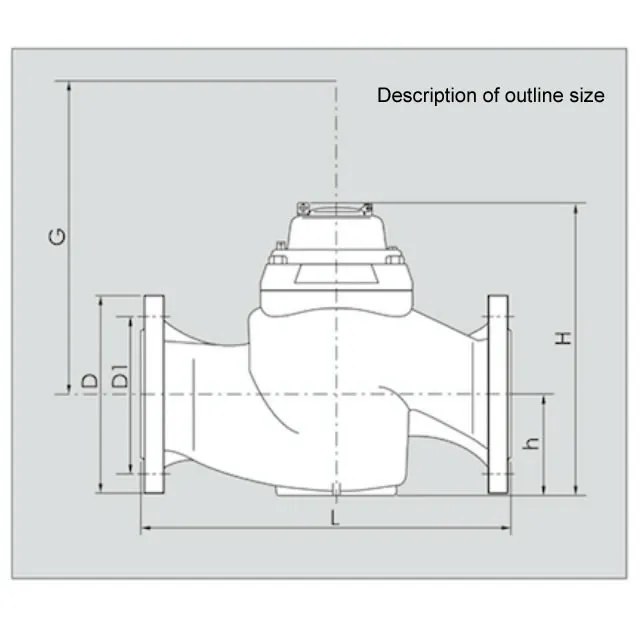

Diameter (mm)
Length
(mm)
Height
(mm)
Flange size
(mm)
Weight
L
H
h
G
D
D1
Bolt(pic)
kg
50
280
228
85
268
165
125
4×M16
12
80
370
282
103
344
200
160
4×M16
21.3
100
370
303
114
350
220
180
8×M16
25
150
500
430
155
565
285
240
8×M20
68.2
200
500
505
190
681
340
295
8×M20
99.8
Main Performance Characteristics
1.Vertical screw-wing water meter concentrates the advantages of horizontal screw-wing water meter and rotary-wing water meter. Using full flow detection, the measured water flow is axial flow, low in and out, and the measurement accuracy is very high, especially at low flow, the accuracy is higher than other types of water meter.
2.In the structure design of vertical screw-wing water meter, the turbo-scroll transmission mechanism is cancelled, and the counter is driven directly by the impeller, so the initial flow rate is very low.
3.Vertical screw-wing water meter uses built-in stainless steel filter to ensure long-term stability of the product.
WS Vertical Wing Watermeter Classification
1. RS-485 wired remote water meter
2. M-BUS wired remote water meter
3. Lora wireless remote water meter
4. NB-Iot Wireless Remote Water Meter
Installation and Use of Vertical Screw Wing Water Meter
1. Choosing the caliber of water meter should be based on the caliber of pipeline and the flow rate equal to or less than the common flow rate of water meter.
2. When the water meter is installed and used, the upstream valve should be opened slowly to avoid the phenomenon of water hammer caused by rapid opening, which will cause serious damage to the water meter.
3. Installation location should avoid exposure, freezing and flooding, and facilitate disassembly, assembly and meter reading. During the freezing period, besides wrapping the water meter and water pipe, close the water meter inlet valve when not in use, and open the water outlet valve and faucet to prevent the water meter from being damaged by frozen expansion.
4. The water meter must be installed horizontally (vertically) so that the surface is literally upward and the arrow on the case is in the same direction as the flow.
5. The newly installed pipeline must wash the stones, mud and silk debris in the pipeline before installing the water meter, so as to avoid causing water meter malfunction.
6. Water meters should not be directly connected with pipelines. There should be flexible joints between water meters and pipelines (pipe joints, connecting nuts, nozzle sealing gaskets). When disassembling and assembling the water meter, it must not be hard pulled to avoid damaging the water meter.
7. If the cold water meter is installed at the inlet pipe of the boiler, it should prevent the hot water reflux from burning the water meter.
8. When the water meter is used for a long time, impurities and rust in the pipeline will block the filter screen or enter the meter, which will increase the error of the water meter or affect its normal operation. Therefore, it is necessary to clean the water meter every other time and recalibrate it quickly or slowly, but it is not allowed to disassemble and assemble it by itself.
9. When not in use, for example, the small fluctuation of the water meter is caused by the unstable flow pressure in the pipeline or other reasons;
In order to measure accurately, the installation of horizontal installation water meter outlet pipeline should be no less than 0.5 meters higher than that of water meter.
