1. Adopt convex surface resin antifreeze glass, effectively prevent the glass from cracking at low temperature.
2. LCD function: LCD screen real-time displays of the remaining amount of water, current consumption, signal strength, previous consumption, previous accumulated amount, current unit price, billing type, valve status, at the same time reserves the mechanical display way, convenient for users to view the status of the meter in real time.
3. Low power consumption and long service life: adopting industrial ultra low power NB-IoT/LoRa module and large-capacity lithium batteries, the battery life is more than 6 years and the data can be stored for up to 30 years.
4.Easy installation, no collector and concentrator, no wiring(NB-IOT water meter).

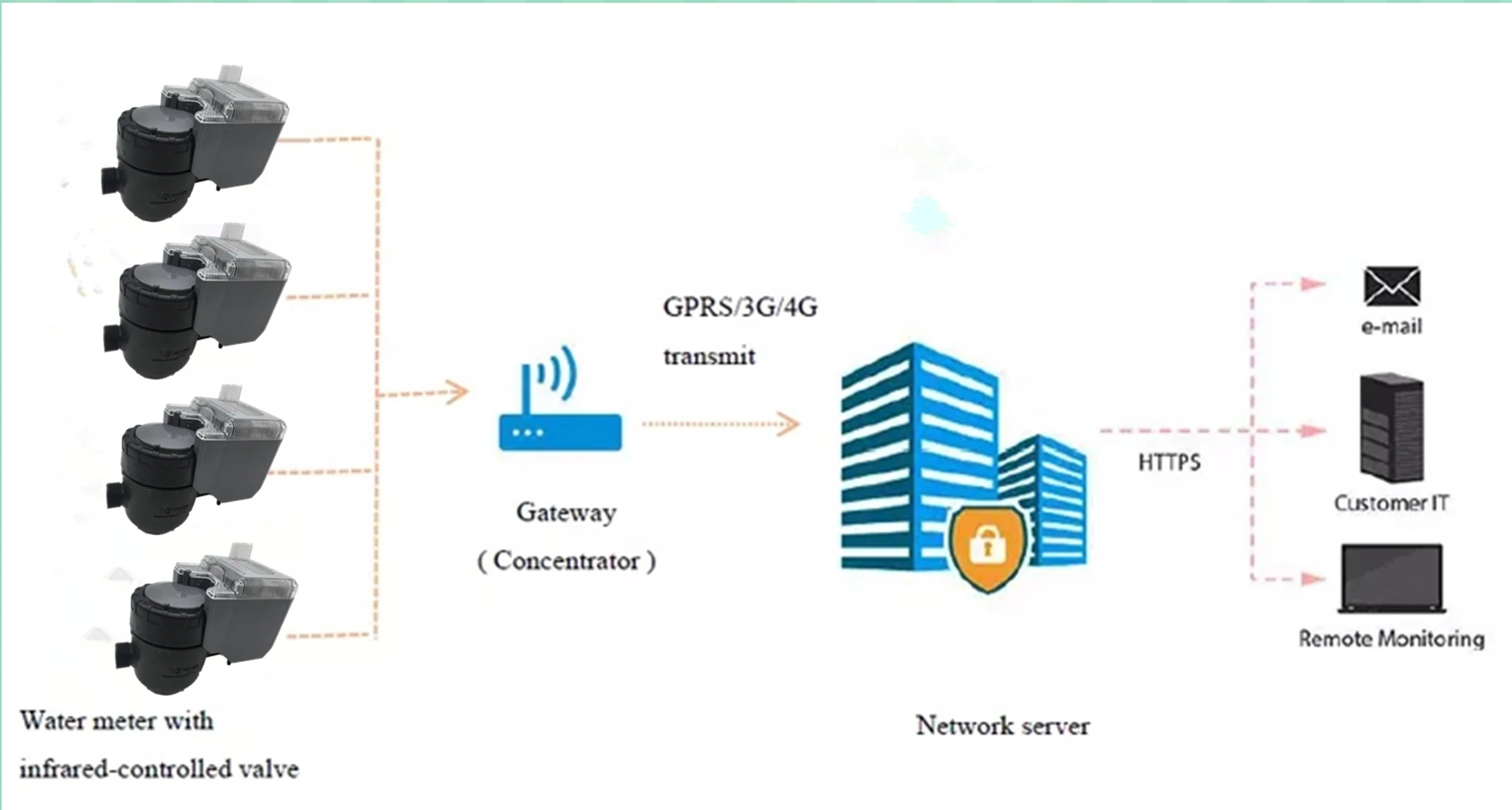

Communication mode

Description and featureApplication:Used to meter and control the total volume of water flowing through tap water pipes.
Working principle:The Internet of things water meter is a water metering instrument which is comprised of ordinary mechanical water meter as the base meter, together with metering and acquisition part, control circuit and wireless communication module.
The Internet of things water meter can be used as NB-IoT and LORA communication mode, and can be adopted as two forms of water meter with valve control and without valve control.
1.Smart set up function;
2.Signal transmission stability;
3.Multiple anti-stealing function;
4.Valve maintenance function;
5.A variety of charging methods;
6.A variety of payment methods;
7.Inquiry by Wechat public platform function;
8.Short message remind function.
Parameters and flow rangeSize(DN)
15mm
20mm
25mm
Common Flow Rate Q3
2.5m³/h
4.0m³/h
4.0m³/h
6.3m³/h
Q3/Q1
80/100/125/160
Q2/Q1
1.6
Minimum reading
0.0001
Maximum reading
9999.9999
Working pressure
Max 1.0Mpa
Medium temperature range
Cold water meter 0.1-30, hot water meter 0.1-90
Protection class
IP65/IP68
Accuracy
2.0 grade
Working voltage
3.6/2.4Ah lithium battery
Static power supply
Max 20 uA
Display resolution
0.01m³
Swiping card method
Non-contact
Communication mode
NB-IoT,LORA,LORAWAN
Dimentions
Size DN
TTL/mm
L/mm
W/mm
H/mm
Connection Thread
DN15
255
165
95
150
R1/2
G3/4
DN20
295
195
95
150
R3/4
G1
DN25
341
225
95
150
R1
G1 1/4
The product parameters and pictures are for reference only. If the product parameters are changed or the pictures are slightly different from the physical object, the physical objects shall prevail. The Company reserves the right of final interpretation of all products.
Other shells optionable:
