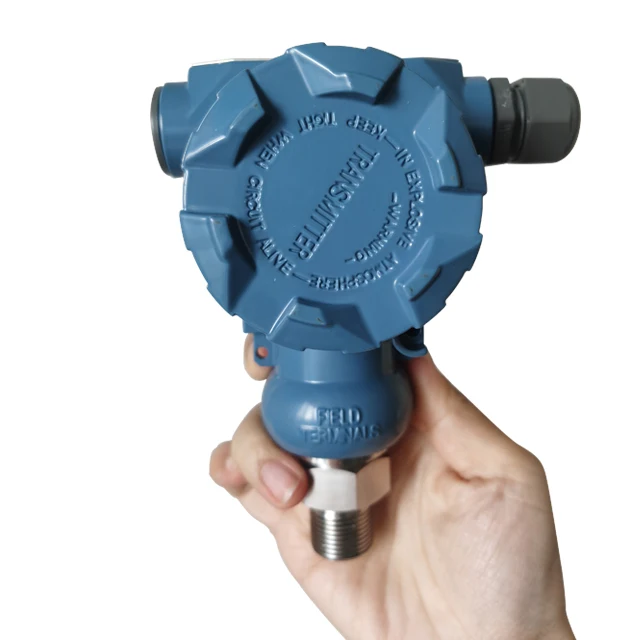

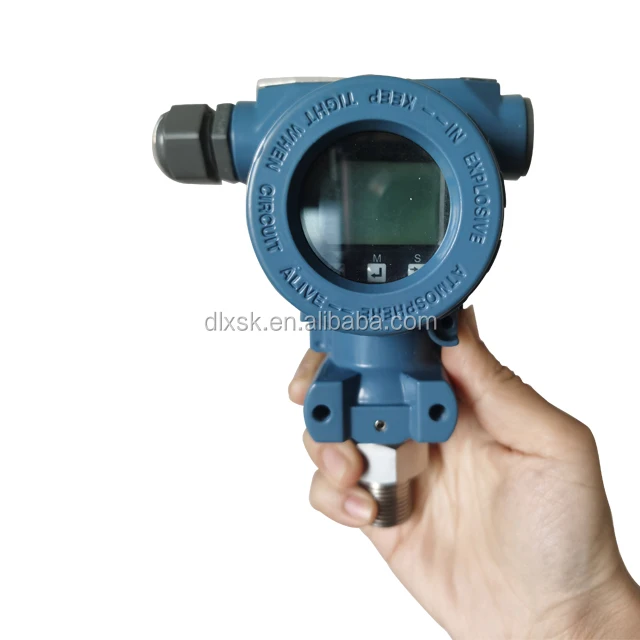

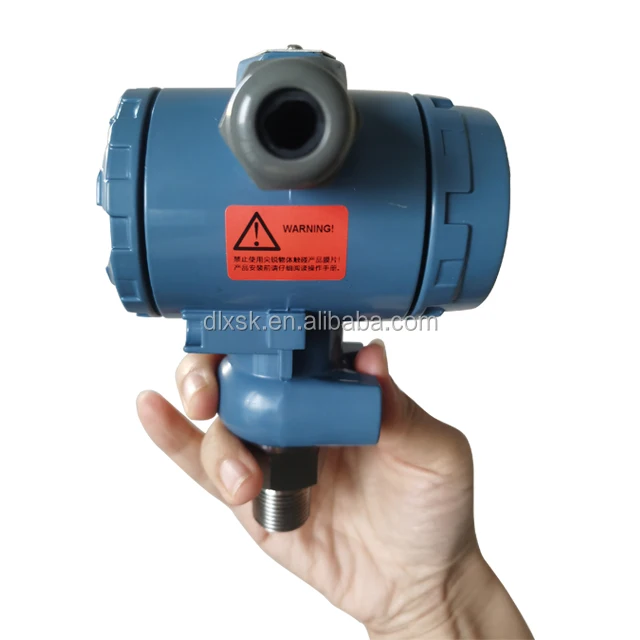

I.Name of product: Digital Pressure Sensor Output 4~20MA DC Ceramic Capacitive High Quality transmitterIndustrial pressure transmitter is a high performance pressure transmitter with international leading technology meticulously designed.Using the world's most advanced monosilicon pressure sensor technology and patent encapsulation technology. sensor locates on the top of the metal body and stay away from the medium interface to realizes
mechanical isolation and thermal isolation. Glass sintering sensor wire realizes high strength electrical
insulation of metal base and improves the capability of flexibility of electronic circuit and transient voltage
resistance protection. All these original encapsulation technologies enable AR3051S GP to easily cope with
extreme chemical occasion and mechanical load, and own strong resistance to EMI, sufficient to respond to
the most rigorous industrial environment applications, which are the genuine invisible instruments.
II. Product details and Features:1.With current limiting protection and reverse polarity protection
2.Safety design
3.Compliance with EMC standards,EN61000-6-2:2005 AND EN61000-6-4:2007+A1:2011Specification:
1 Output signal: 4-20MA DC; (2-lineS)
2 Accuracy rating:: ±0.25FS
3 Power voltage: 11~28V DC
4 Working environment: Temperature explosion-proof: (-20~+70);
Temperature of medium contacting with diaphragm <100(high temperature medium can be introduced via pressure lead-in pipe aftertemperature drop)
5 Pressure overload: ≤2FS (max measurement range)
6 Measuring range: -0.1MPA--0MPA~0.01MPA-100MPA
More technical indicators:1 Output signal: 4-20MA DC; (2-lineS)
2 Accuracy rating:: ±0.25FS
3 Power voltage: 11~28V DC
4 Working environment: Temperature explosion-proof: (-20~+70);
Temperature of medium contacting with diaphragm <100(high temperature medium can be introduced via pressure lead-in pipe after
temperature drop)
5 Pressure overload: ≤2FS (max measurement range)
6 Measuring range: -0.1MPA--0MPA~0.01MPA-100MPA

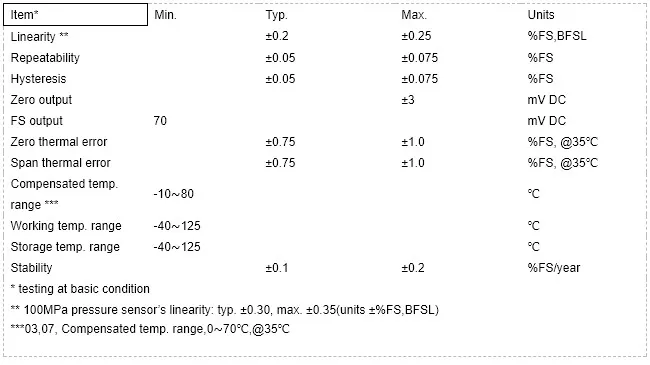

Specification details :
