The product has stable performance, high precision and can work continuously for a long time.
Product DetailProduct Overview PCM-60 is a high-precision recording digital pressure gauge with built-in high-precision pressure sensor, which can accurately display pressure in real time, collect data regularly, store data and support USB data export, and has the characteristics of high accuracy and long-term stability.
The digital pressure gauge is equipped with large LCD display, which has many functions such as zero clearing, backlight, switch, unit switching, low voltage alarm and so on. It is easy to operate and easy to install.
The product adopts 304 stainless steel shell and joint, which has good seismic resistance and can measure the corrosion-free medium of gas, liquid, oil and other stainless steel.
Features
USB Data Export Function and Access Software
Can store up to 10,000 pieces of data
Pressure scale, indicating current pressure percentage
Zero clearing error with one key and unit switching

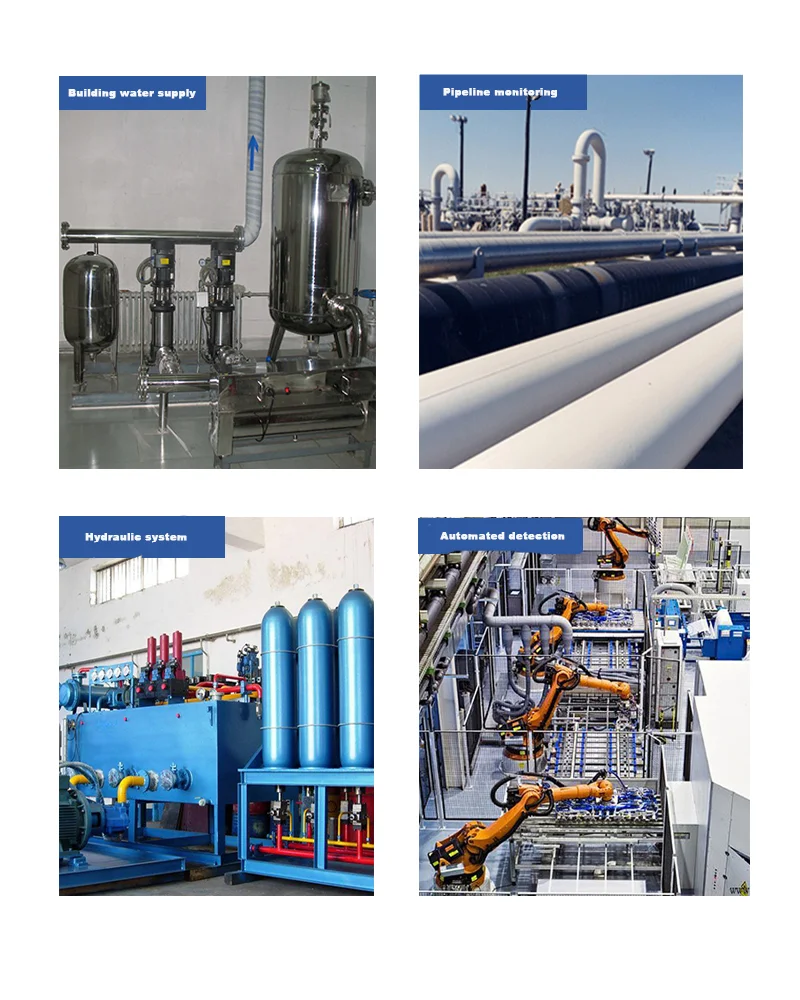

Application
Machinery and electronics
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation
Performance parameters
Pressure range
-100kPa...0~10kPa...100MPa
Pressure reference
Gauge pressure, Absolute pressure, Sealed gauge pressure
Accuracy
0.5%FS
Backlight color
Blue
Operating temp.
-10~70鈩?/SPAN>
Compensated temp.
0~60鈩?/SPAN>
Electric protection
Anti electromagnetic interference design
Sampling frequency
5/sec
Overpressure
150%FS
Long term stability
±0.2%FS/year (typical)
Supply battery
2 Triple A batteries
Material
Stainless steel for shell, 316L for isolation diaphragm
Medium compatibility
All media compatible with stainless steel 316
