Application
Measuring the volume of cold potable water passing through the pipeline
Work Conditions
Water temperature : 0.1- 40
Water pressure : ≤1.0 Mpa
Brief Introduction

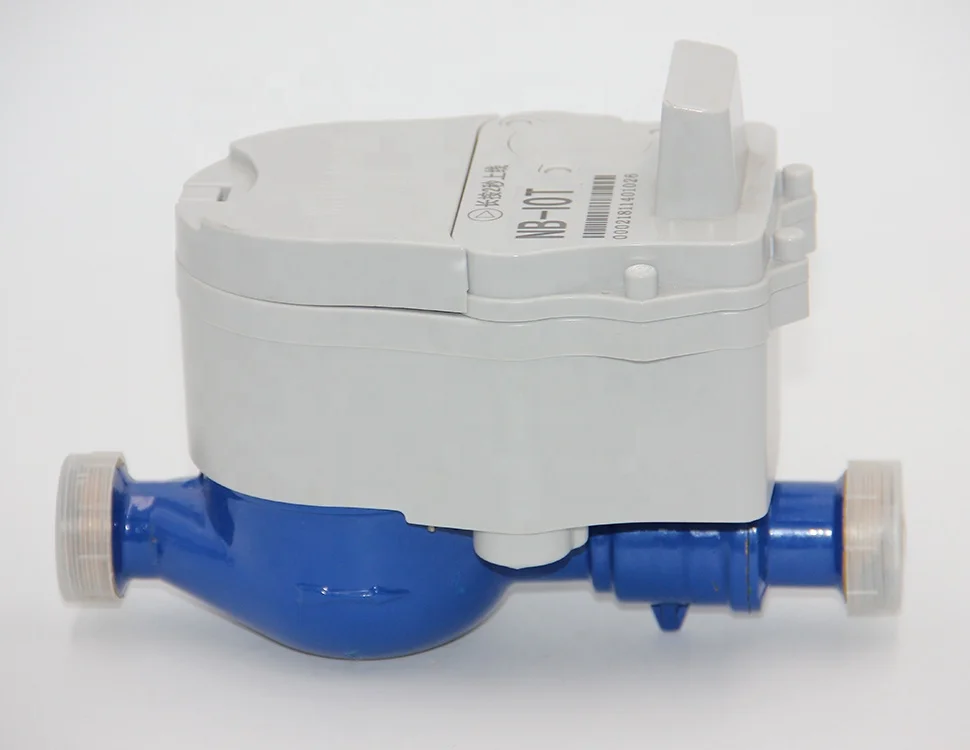

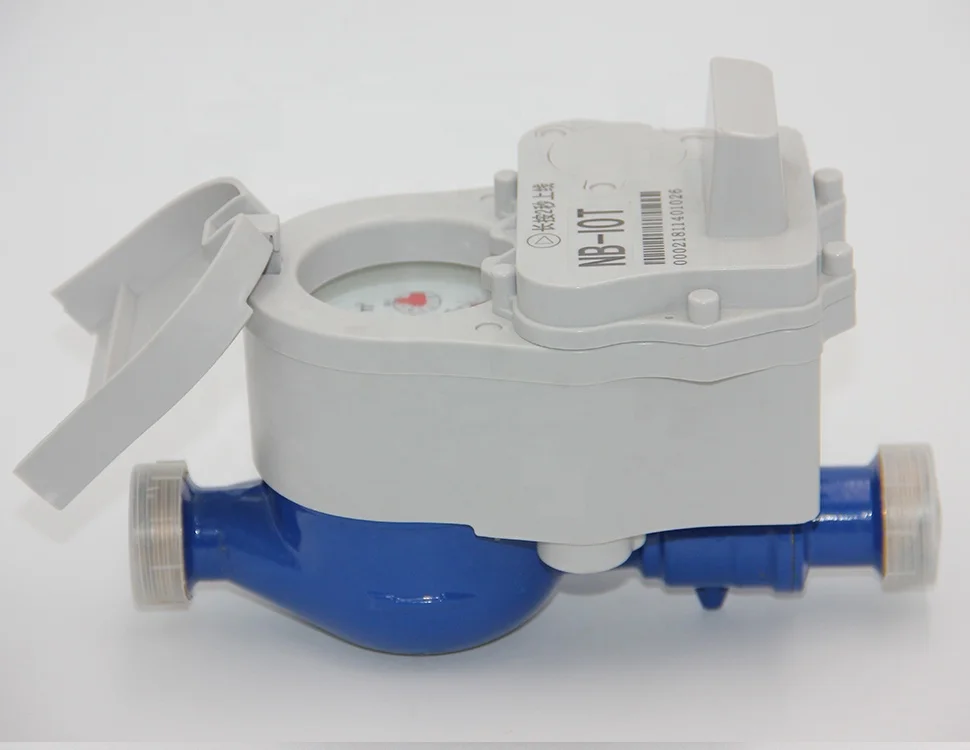

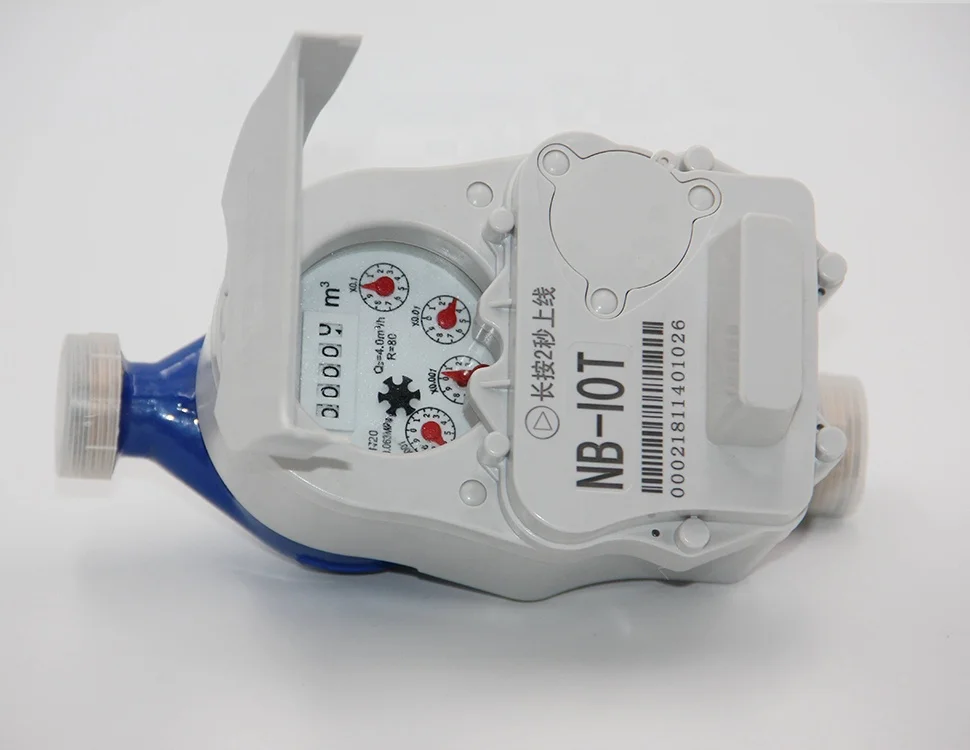

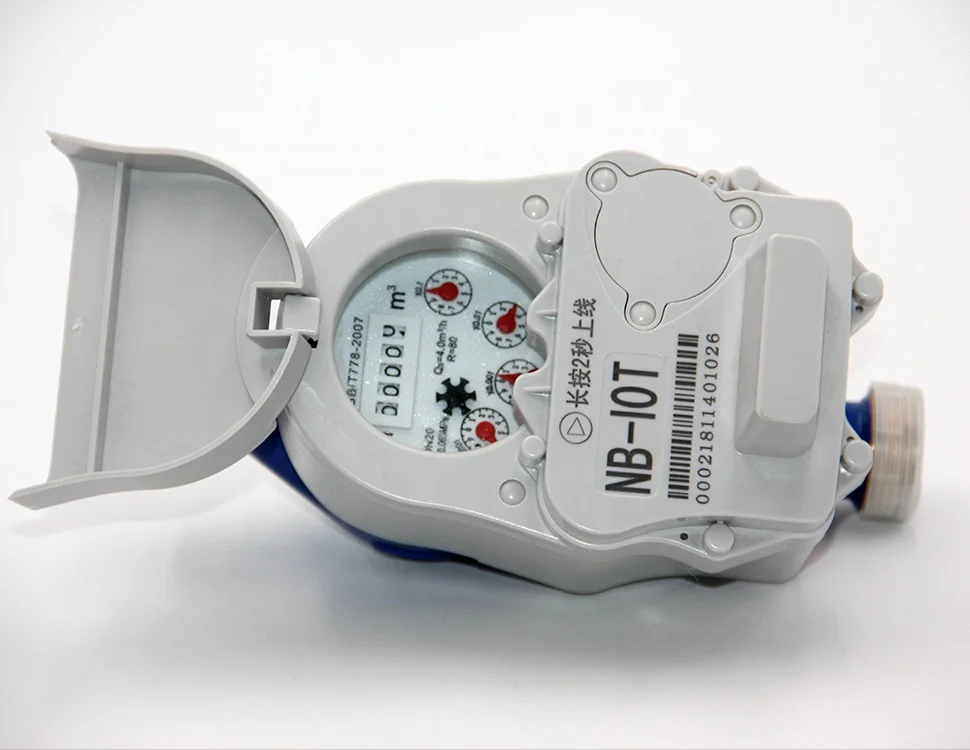

RF Card Prepaid Water Meter is developed from WET-type basic water meter,
composed of microchip module, controlling valves, LCD display,RFCard & card reader, and accounting management syste
★ The figure of water volume is displayed directly on screen
★ The water using could be controlled as prepaid method
Main technical data
DN(mm) Q4 (m3/h) Q3 (m3/h) Q2(m3/h) Q1(m3/h)
Overload flow-rate Permanent flow-rate Transitional flow-rate Minimum flow-rate
15 3.125 2.5 0.050 0.032
20 5.000 4.0 0.080 0.050
25 7.875 6.3 0.126 0.079
★ Technical standards: ISO9001:2008,ISO14001:2004,GB/T778,JB/T8802,JJG686,CJ/T133
★ Valve Life :>5,000 times
★ RF Card Life :>100,000 times
★Power Supply : 3.6V lithium battery, life>6 year
★Security : Unique Card per Meter, uncopiable
★ Static Working Current (μA):≤6
Maximum permissible error
From the minimum flow rate Q1 to the lower zone of the transitional flow rate Q2 :≤±5%
From the transitional flow rate Q2 to the high zone of the maximum flow rate :≤±2%
Dimensions
Installation requirements
★ Clean the foreign matter from the inside pipe.
★ This kind of water meter couldnt be spoiled in the hot sun,humid, freeze,chemistry,electronic pollution, easy for dismantle,reading, and credit the user card.
★ Horizontal install, the direction mark should in accordance with the flow direction. Leave length about 6-12 times of the pipe diameter at the front of the water meter, and length about 4-6 times of the pipes diameter at the back of the water meter for the accuracy measurement.

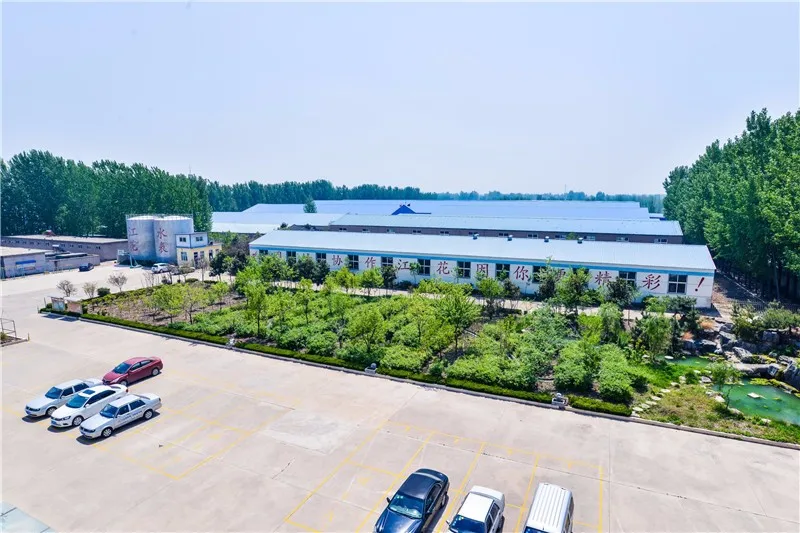

Our CompanyFactory

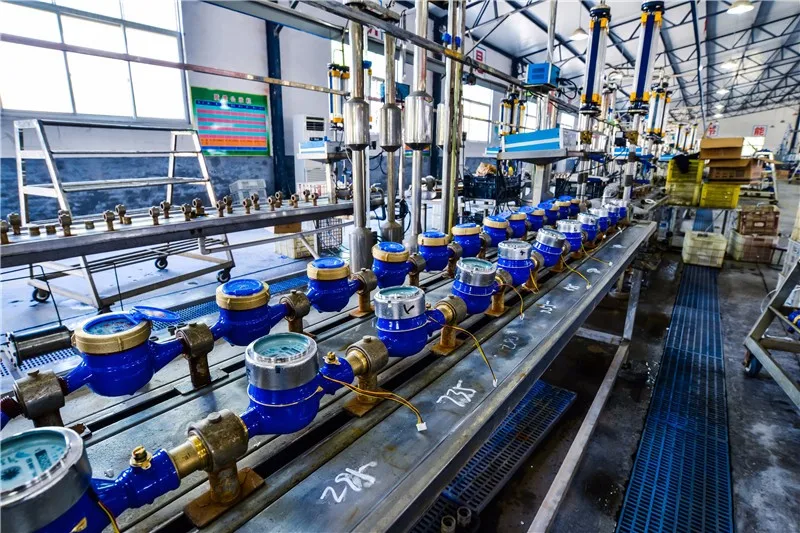

Workshop

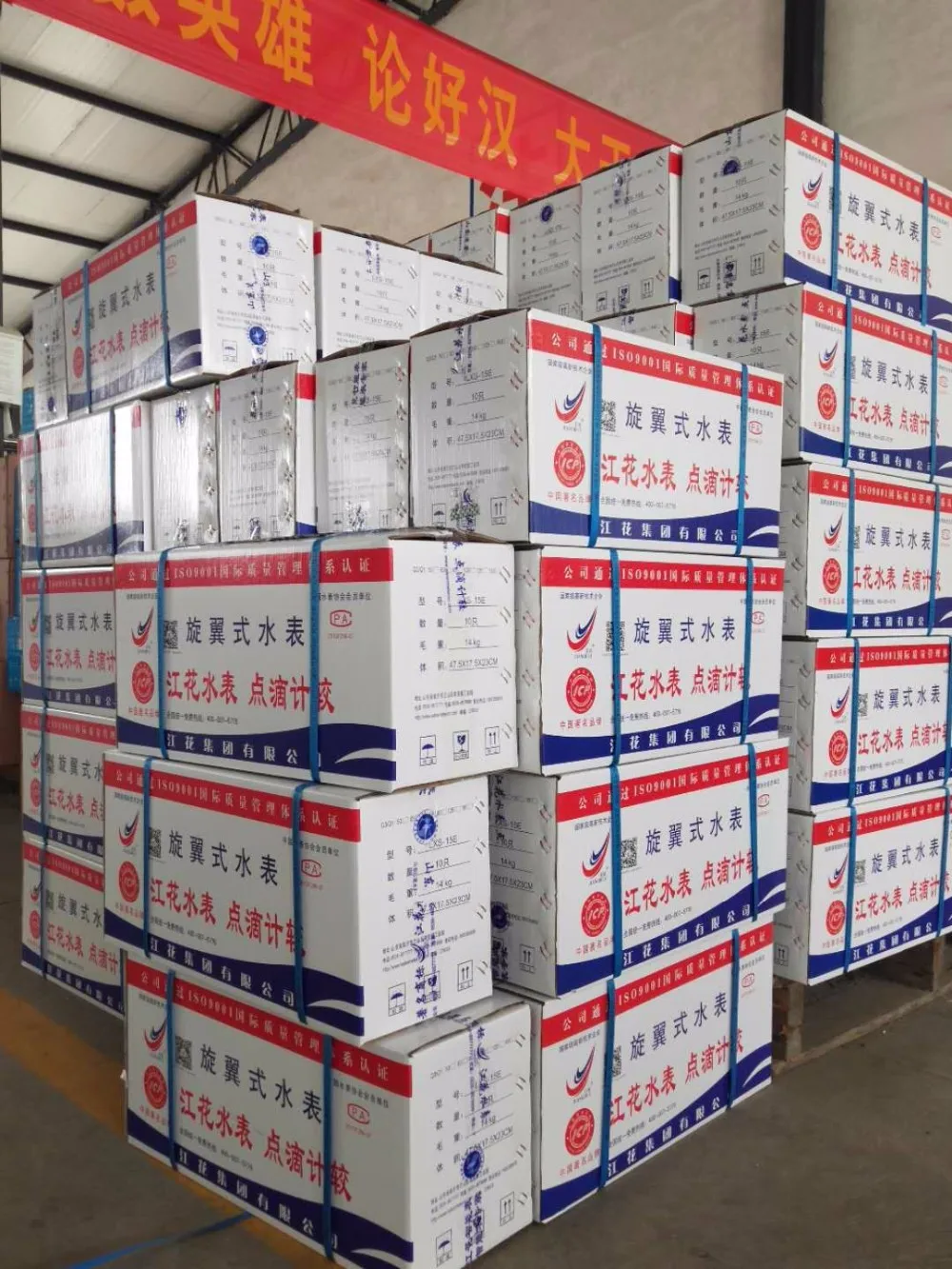

WarehouseTeam
