DC3V lithium battery operated NEMOTO sensor CO alarm CO detector
Sensitivity:
30ppm 120 minutes alarm
50ppm 60-90 minutes alarm
100ppm 10-40 minutes alarm
300ppm alarm within 3 minutes
Features:
1. Low consumption Zigbee module
2. Zigbee HA1.2 alliance protocol
3. Low consumption design, long battery use life
4. Delicate and luxury design
5. Low battery warning
6. Adpots NEMOTO electrochemistry sensor
Specification:
Model Number HS1CA
Working voltage DC3V lithium battery
Static current 10uA
Alarm current 60mA
Sound Alarm 85dB/3m
Networking Zigbee or Zwave
Dimension 54*54*45mm

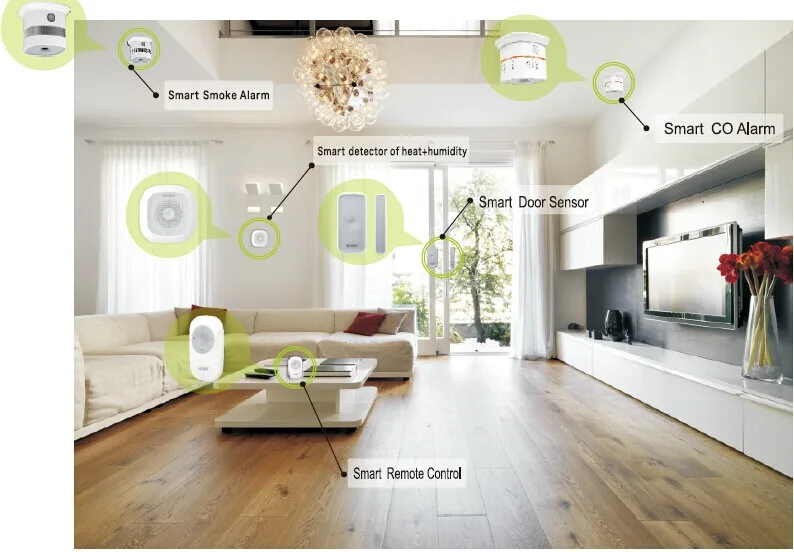

Photo for zigbee or Zwave CO detector:

Installation
1. Anticlockwisely rotating smart home smoke alarm from the base, remove the battery insulation piece to make smart smoke alarm on power.

2. Click "Add device" on the APP, enter networking stage;

3. According to the tips on APP, quickly press networking button three times, when green light flash quickly, join the networking successfully and APP show tips. ( The bule point in this picture is the "networking button", green circle in this picture is the position for indicator light.)

4. Remove the double-sided adhesive back membrane, install the smart home smoke alarm into the base.

5. Press the test button (3 seconds) to test the detector. Suggest test weekly.

APP Interface
