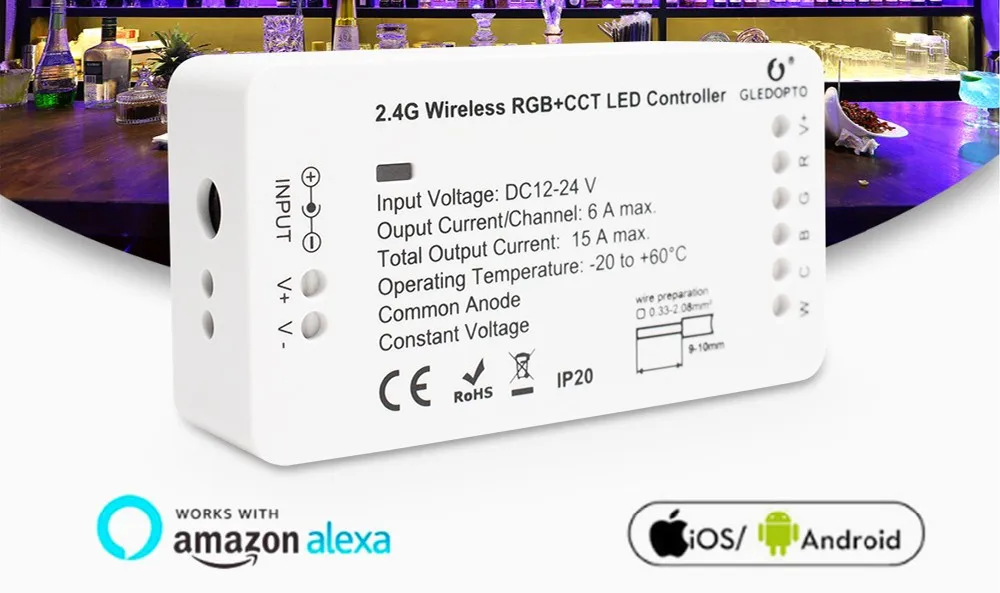

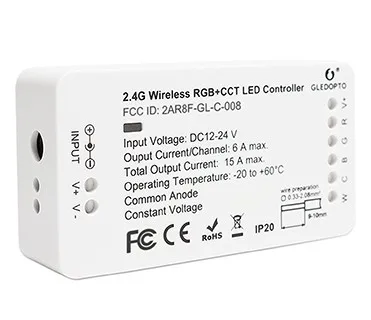

SpecificationsMain Specs of DC12-24V ZigBee LED Strip Controller
Input Volt. 12V ~24V DC
Output Current Total 15A max.
Common Anode
Yes
Control Tech. ZigBee 3.0
Lighting Color RGB+CCT
Remote Distance ≤30Meter
Shelf Material ABS
Working Temp. -20C~60C
Product FeaturesZigBee RGBW/RGB+CCT LED Strip Controller is a newly developed LED controller. This LED controller is designed by a delicate & fashionable ABS housing body; based on ZigBee 3.0 protocol, which compatible to ZLL gateways such as Philips Hue, Amazon Echo Plus, Ikea Tradfri, etc.
for common LED lighting with RGB color change, RGB + WW, RGB + CCT, CCT and single color LED lighting to 12V or 24V DC voltage.
Main Functions of RGB+CCT LED Controller△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately
△ Set the Scene, Scenes that automatically adjustto the lights in your room according to environment
△Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home
△Wake up, set time to turn on light gently, to wake you up in the morning
△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes
Easy Guide to Connect with Gateways1. Connect the LED product to the controller see section "wire connection".
2. Start the device searching on the ZigBee Light Link Gateway, it could take some time. If the Gateway does not find the device, plug power off/on or make a reset.
3. The Gateway found your device and you can assign it to the different rooms/zones/groups.
4. Now you can use the device.
NotesThe controller is available in 1ID or 2ID version design, and the preset version is 1ID from us.
1ID - will show 1ID on the APP, easy to manage the lights and can control the Color light (RGB) or white light separately.
2ID - will show 2IDs in the App, Color light (RGB) can work with white light together or separately.
To help you to confirm which ID version is best suitable, we suggest to tell us what brand of Gateway/Hubs you are using firstly.
What You Can Do by Using GLEDOPTO®ZigBee LED Controllers & Lamps
Quick Start of Using Our ZigBee serie Wireless Controlled LED Lamps & Controllers
Installation ProcessSimilar RGBW/WW&CW/Single Color ZigBee LED Flexible Strip Controllers
Item No. #GL-W-001Z #GL-C-006 #GL-C-007 #GL-C-009
Input Volt. AC 100~240V DC 12~24V DC 12~24V DC 12~24V
Control Tech. ZigBee protocol compatible to ZLL gatways, e.g. Philips Hue, Amazon Echo Plus, Ikea Tradfri, ..
Lighting Color on/off function RGBWW/CW RGBW Single Color Dimmer
Applications CasesGledopto ZigBee LED Strip Rope String Light Controller Packing Details
Certifications
