Ultrasonic Water Meter

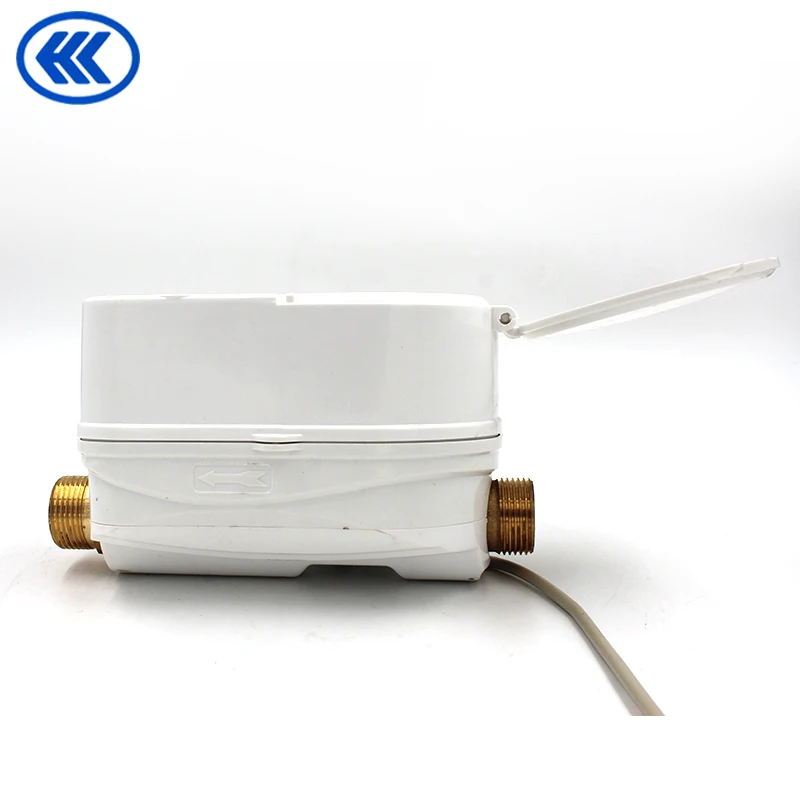

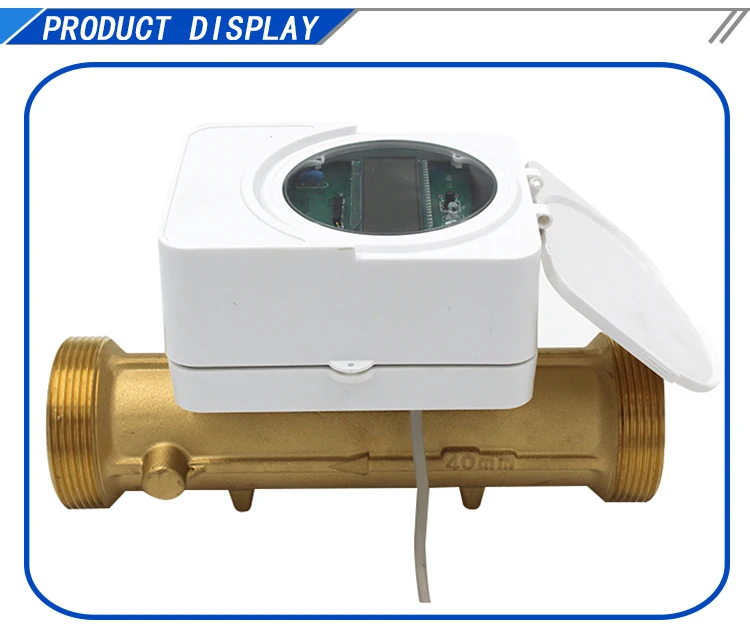

It is an advanced and highly accurate ultrasonic water meter. With no moving parts, used for measurement of cold water consumption for residential applications.
The ultrasonic water measurement is based on the transit time method, and all measurements, references, readings, calculations and data communication is controlled by an advanced specially designed electronics circuit.
The meter has no moving parts, presents an IP68 register, and with big and full information LCD, easy to read the data and see the alarms.
Technical Specification of Smart Ultrasonic Water Meter
parameter unit Datavalue
Nominal Diameler DN15 DN20 DN25
Start flow rate m3/h 0.003 0.003 0.005
Qmin(Q1) m3/h 0.010 0.010 0.016
Qtransitional(Q2) m3/h 0.016 0.016 0.025
Qmax/permanent(Q3) m3/h 2.5 2.5 4.0
Qoverload(Q4) m3/h 3.125 3.125 5.0
Range ratio=Q3/Q1 250 250 250
Metrology accuracy 2 class 2 class 2 class
Q1-Q2 error <3% <3% <3%
Q2-Q4 error 2% 2% 2%
Max working pressure MPa 1.6MPa 1.6MPa 1.6MPa
Pressure loss KPa <25KPa <25KPa <25KPa
temperature °C 4°C-65°C 4°C-65°C 4°C-65°C
humidity range %RH <95 <95 <95
channel length mm 110 130 160
maximum registration(LCD) M3 99999.999
Min instant-flow reading(LCD) M3/h 0.001
Max instant-flow reading(LCD) M3/h 9.999
Smart function
communication M-bus/impulse output
Temperature compensation YES
Mechanics
channel maternal brass body
Water & dust proof IP68
thread pattern mm 33*2.309 33*2.309 33*2.309
