Chinese solar garden light with lora control technology for pc control system

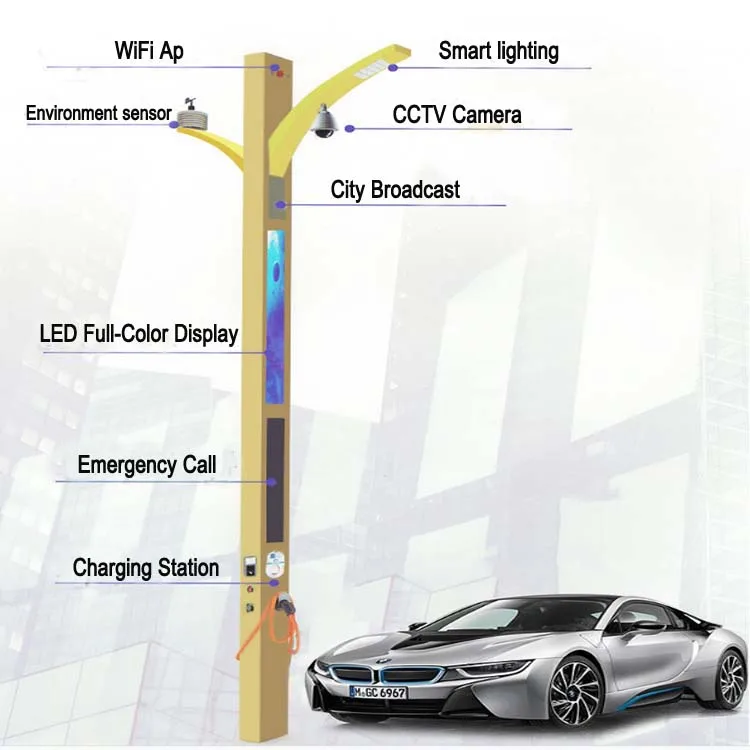

Smart street lights can be integrated into the monitoring system of information interaction system and urban network management. Street lights can be extended to public safety monitoring network, WiFi hotspot access network, electronic screen information release, road congestion monitoring network, parking integrated management network, environmental monitoring. charging pile network and more. Smart city integrated carrier and smart city integrated management platform that realizes widely network integration
Devices
parameter
Pole
3-12meter
LED lamp
30-180W
Communication way
Zigbee /Lorawan/NB-lot

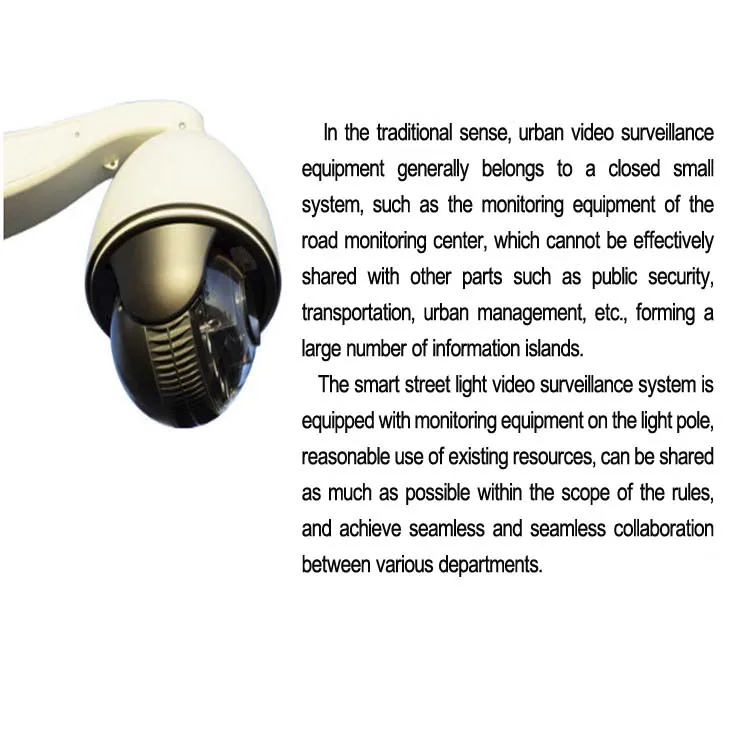

Camera
3-inch hemisphere, 300W pixels
Supports maximum 2048 * 1536@30fps hd picture output
Support h. 265 efficient compression algorithm, can save more storage space
Support area intrusion detection, border detection, mobile detection and other intelligent detection functions
Supports 350 ° horizontal rotation, vertical direction 0 ° to 90 °
Lightning protection,surge protection, IP66 protection level
Software
Street light control system and custom for other all devices

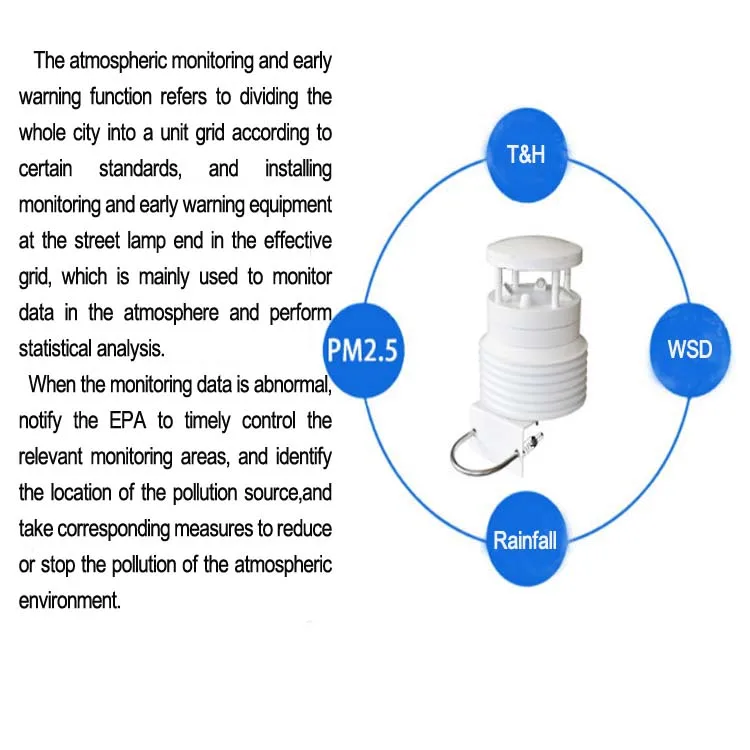

Atmospheric Sensor
Seven in one: Humidity, Air Pressure, Wind Speed, Wind Direction, Temperature, PM2.5, PM10
WiFi-Ap
2.4GHz/5G
300Mbps
Cover 100 meters and connect to 100 points
Support 2 N-port antenna interfaces
WiFi-Ac
Centralized control of up to 128 APs
architecture to achieve high-speed forwarding of multiple services.
Support IEEE802.11a/b/g and IEEE802.11n standards
Implement centralized access and centralized deployment of APs

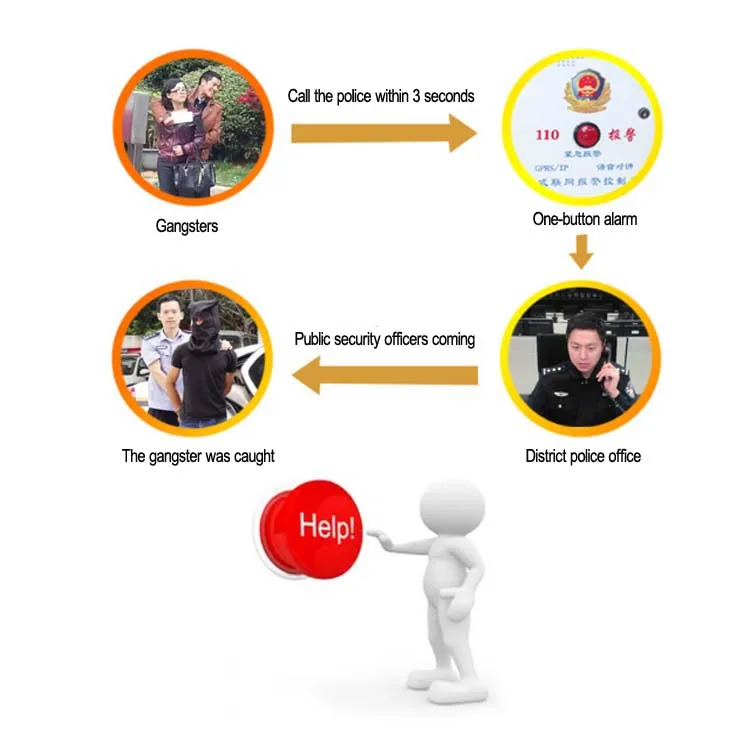

One key calls the terminal device
Hd camera, active real-time surveillance,720P CMOS camera
Full duplex voice intercom, audio coding: g.711, G713, PCM
3 m distance intercom, speaker: 8 Ω 3 w
Dynamic noise reduction, clear sound pickup, SNR >85db
Outdoor rainproof, IP52.
RJ45 interface, support TCP/IP, DHCP
Voice box
Rated input Voltage:110V
Sensitivity:85dB
Frequency:70Hz~15Khz
Network Interface:RJ45/10M/100M
Protocol:TCP/IP/UDP
Audio format:MP3/MP2
Speaker unit:3"*3
Dimension:437*107*73mm
Microphone
For network call microphone input

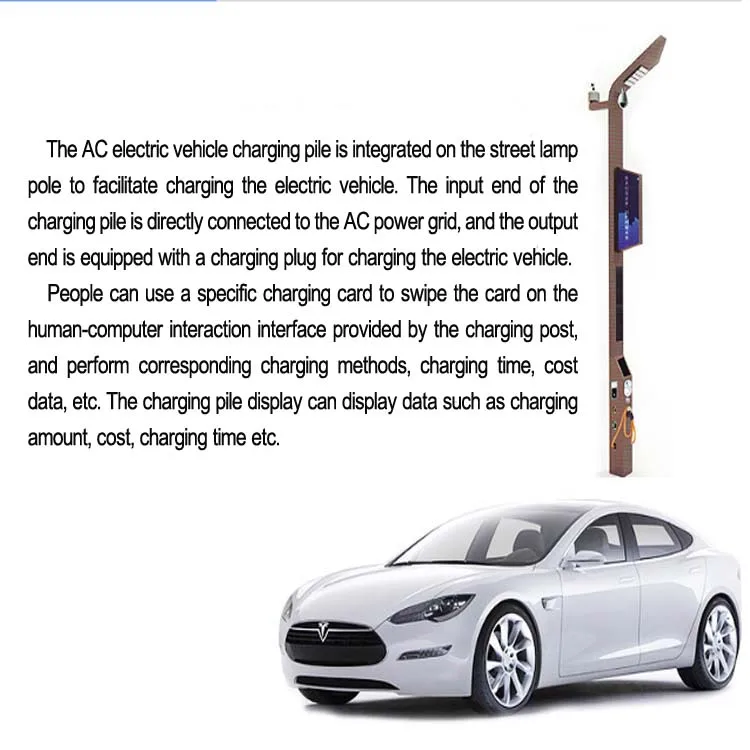

Charging Station
Input voltage: AC220V plus or minus 10%;Charging mode: single charge
Total power: 7kW;
Whole machine performance: the efficiency is greater than 99%
Start mode: swipe card, APP scan code: protection level is greater than or equal to IP54

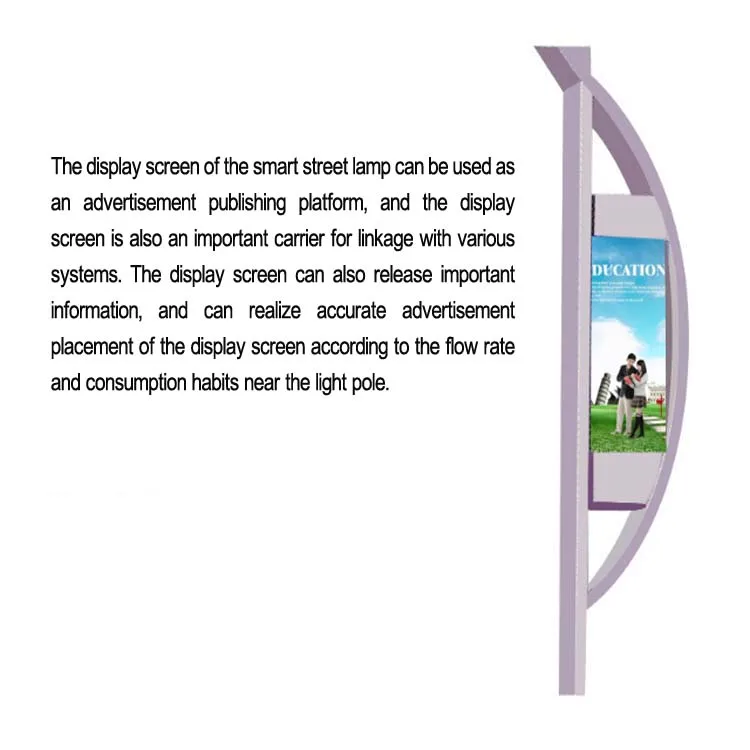

LED full-color display
Frame frequency: >60hz/s
Refresh frequency:>3500hz/s
Brightness:>6500cd/sq.m
Storage temperature: -40°C~+85°C
Operated temperature:-20°C~+55°C
Malfunction dot rate:<0.0001
Life:>10,000hours
