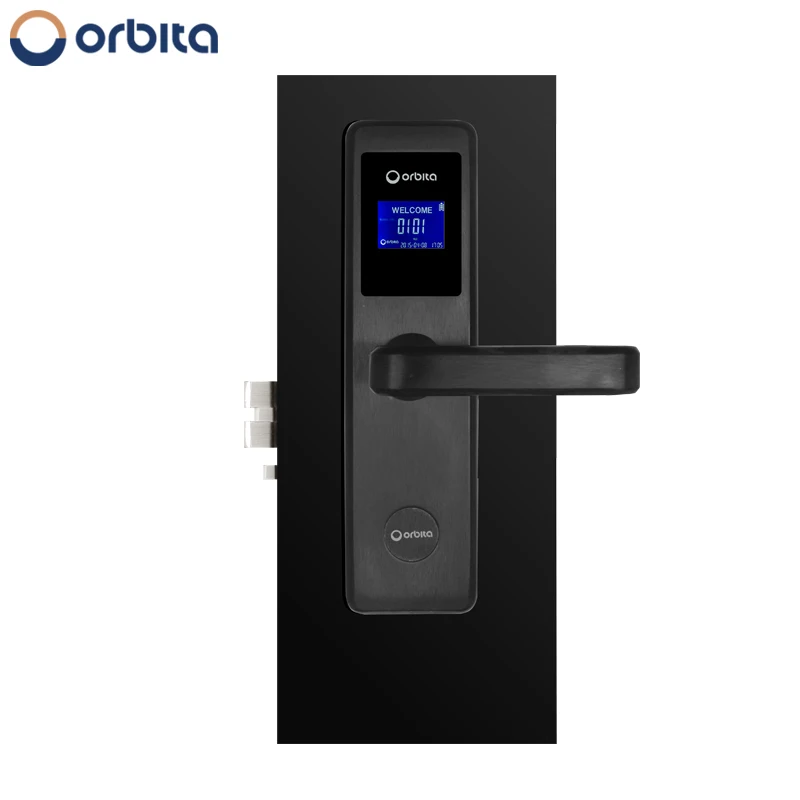

China factory supplied top quality sensor door lock
As a Teenage, Orbita is energized in creativity,
determined in developing hospitality facilities.
Maybe you haven"t know about ME-- Orbita,
but you might have used the products made by ME.

RF swipe swipe key card door lock system LCD entry RFID door lock kit
Specifications:
1.ANSI 5-latch standard mortise
2.RFID MF technology
3.Low Battery Voltage warning
4.CE/FCC/ROHS etc
5.Top Class Quality
6. Brushed stainless steel 304

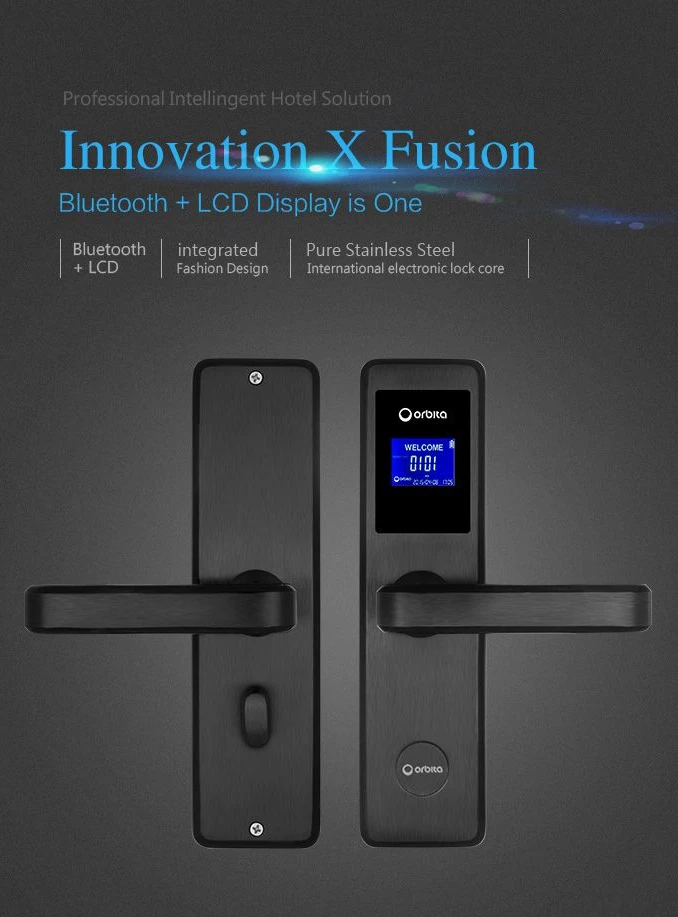

Digital Ansi standard LED Display hotel lock on promotion
Features:

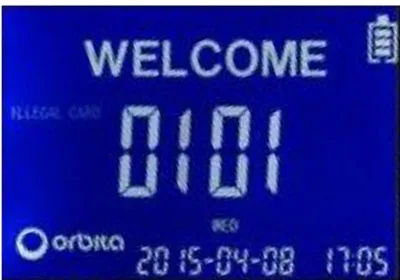

1. Brushed stainless steel panel plus LED screen showing date,
time, room no. and battery status etc. (see figure on the right -->)
2. Low consume,high sensitive RFID Technology PCB board.
3. PCB board built-in buzzer and self-detect light.
4. RFID MF 1K technology, contactless working
5. Low Battery Voltage warning(beep and red light)
6. 5 latch mortise model-K2S
7. Free-engage handle;
8. Powered by AA battery x 4PCS for 10-12 months life
9. MF1K S50 card required,100,000 times write life.
10. Audit trail records the latest 800 lock transactions.
11. Passage mode activate by passage card for meeting case
12. Our own Hotel lock system(free) required
13. 40mm-50mm thickness door
RF swipe swipe key card door lock system LCD entry door lock

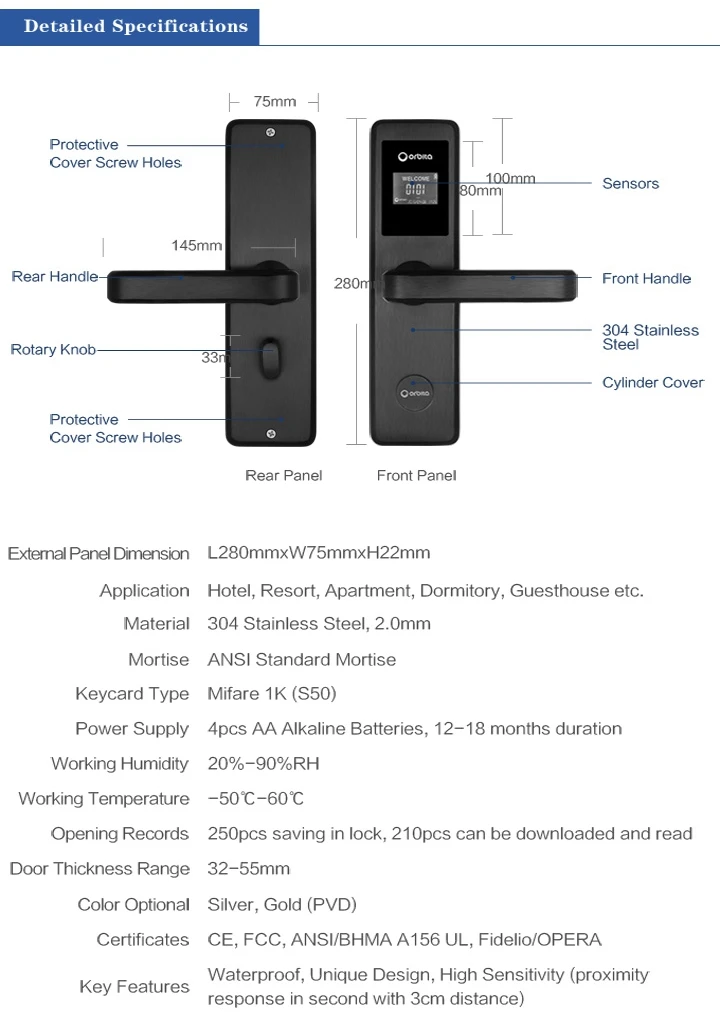

Parameters:
Power supply 4pcs (LR6) AA alkaline batteries
Improper closing alarm the lock will beep in low alarm if door wasnt closed/locked properly
Low alarm voltage 4.8V
Communication 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Working Tempareture 0 ~ +60 celsius
Working humidity 15~85%RH
Static currency < 30uA
Working currency < 150mA
Memory/ Opening records 800 transactions, including Time, Date, Day, Card ID, Card type, Room ID etc.
Locking system software Self-developed Hotel lock system TM
Grooss weight 3.3KG
Mechanical key 2 pieces
Contents Front and back panel, handle, mortise, cylinder, battery-pack, strike,override etc
without battery, without key cards.
Delux LED Display Ansi standar hotel lock on promotion
Operation Indication:
1. Guest card: Reception complete program Guest card by give a begin and expiry date for
room(rooms). Guest accesses room by reading this card to the lock
2. Master card:Hold by housekeeping to access to all rooms of hotels
3. Floor card: Hold by clean staff to enter the rooms in one floor.
4. Building card: Hold by manager to enter the rooms in one building
5. Passage card: Once this card been read on one door, this door could be acceessed by
without reading any keycard;
6.Emergency card: Enter the all rooms
7. Blocking card: to block the lock from unlocking.
Details:


Ansi Standard Mortice

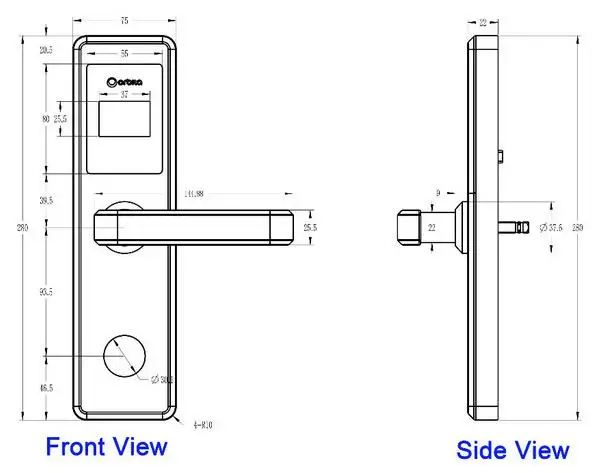

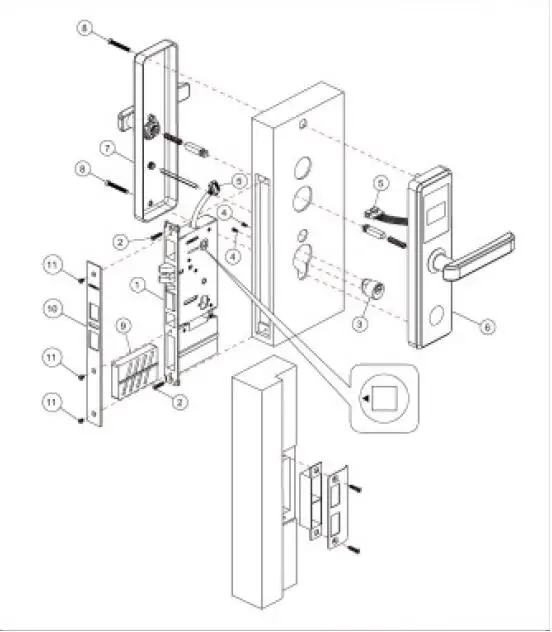

ASSEMBLY

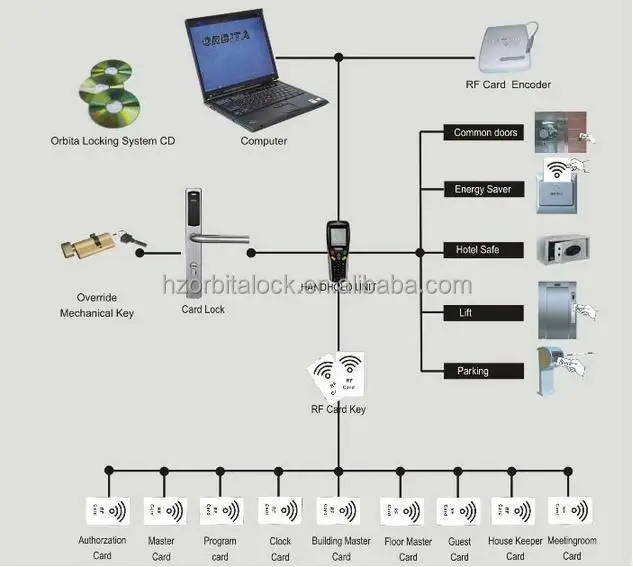

One Card Locking System

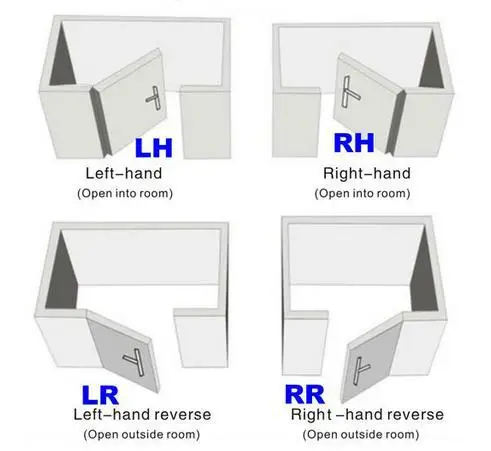

Indication of left handle, right handle

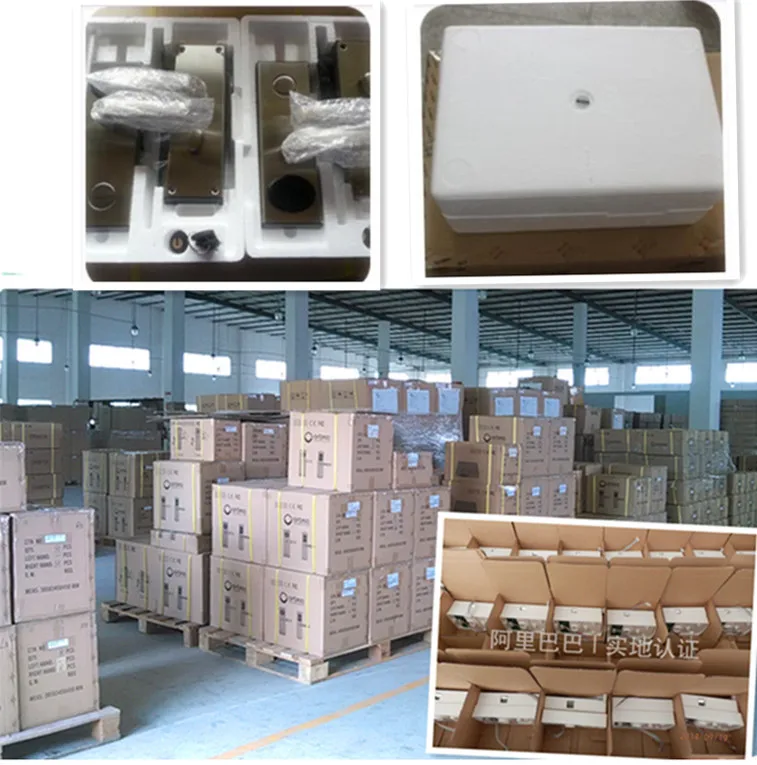

Packaging
All products are firstly packed in airbags, then place into foam boxes,delivery cartons,which properly prevents the parts scratching each other.For screws and bolts, strikes, they are properly packed in a polybag and delivered with each lock. The inner boxes are separated from each other to avoid rubbing.The shape of the box is designed in rectangle. As we have more than 10 years hotel lock experiences, this kind of packing is good for transportation, storage. For more details, please refer below pictures.

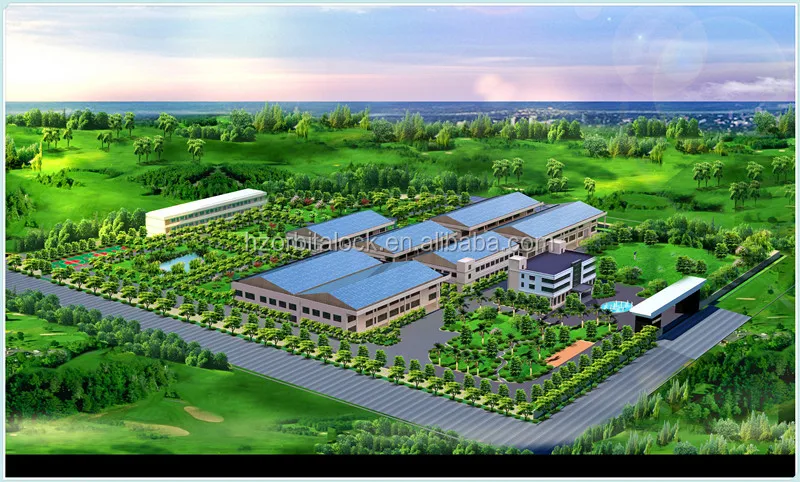

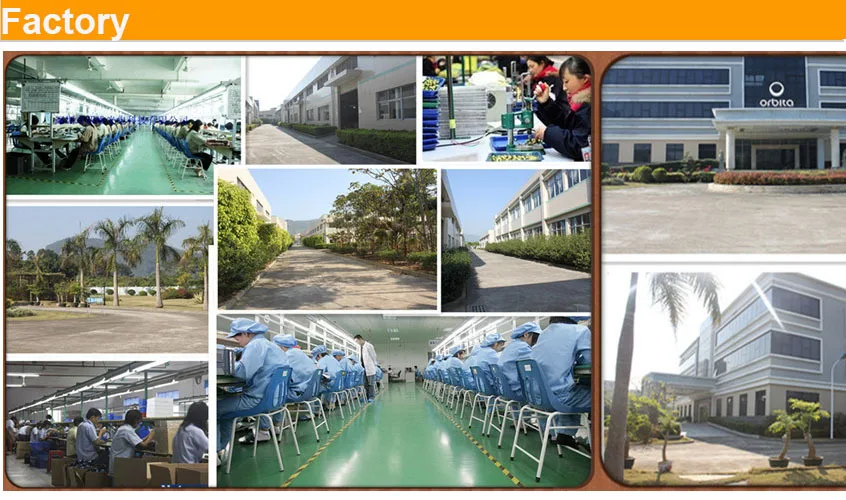

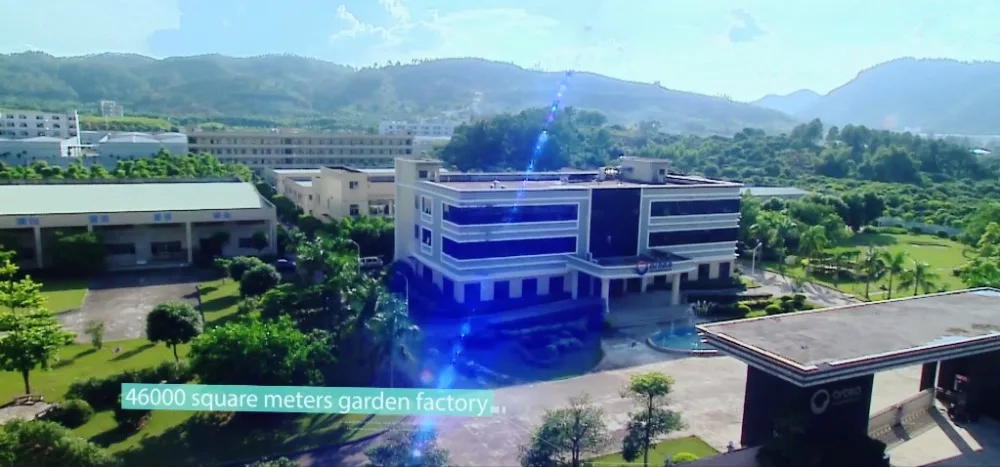

Orbita Huizhou Manufacturing Base

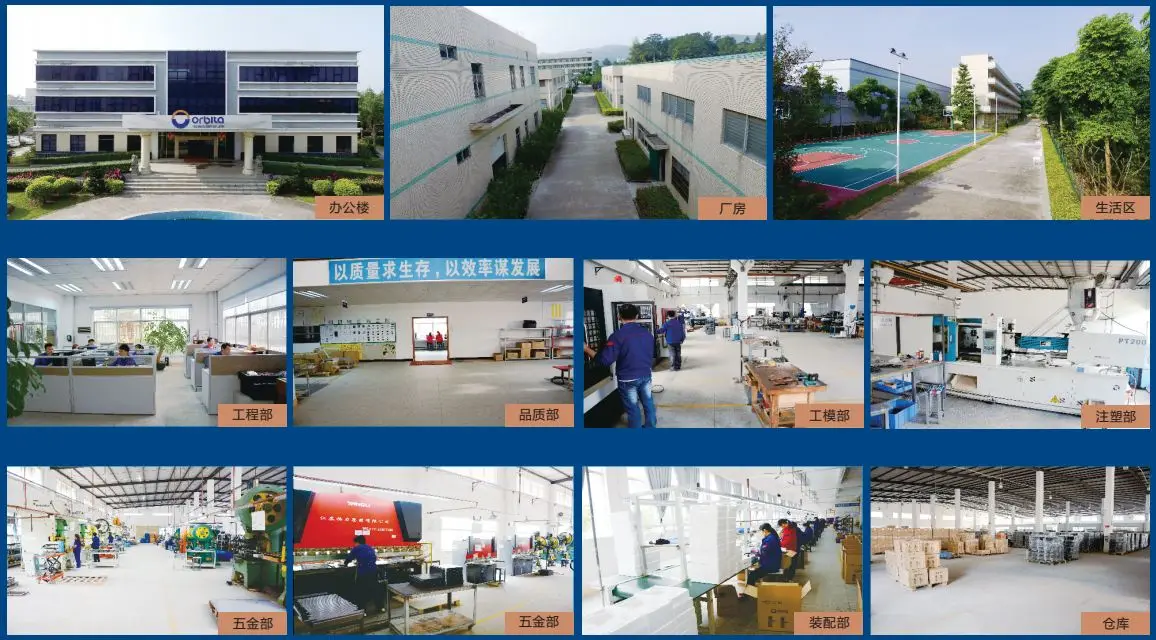

Orbita Huizhou Manufacturing Base
With over a decades professional developing history, 45,000+m2 floorage,
We, Orbita people, are ready to be your ideal OEM partner.
Whoever you are, whenever you come
I am here
Waiting for you.
