Specification
China factory 300w solar led street light with 7 pin nema connector

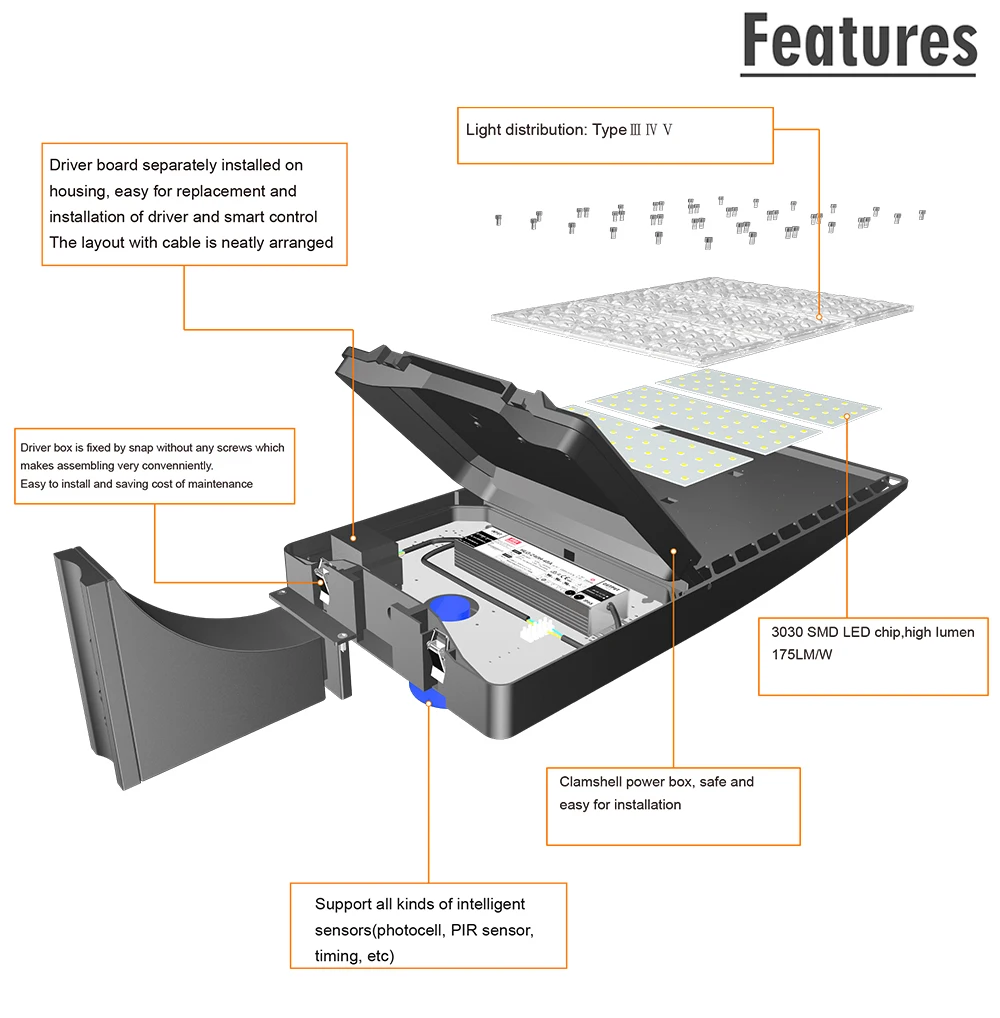

Unique Design Features of 300w led street light1).Hollow Out Heat Sink Design Makes The Lamp Lighter And Better At Heat Dissipation
2).High Efficiency Lumileds/Cree SMD3030 Chip 175lm/w 300w led street light
3).Snap-In Power Cover.Easier and Faster for Installation of 300w led street light
4).10Kv Surge Protection Integrated Led Shoebox Fixture
5).100W 150W 200W 250W 300W Optional 300w led street light
6).High Quality 7 Years Warranty 300w led street light

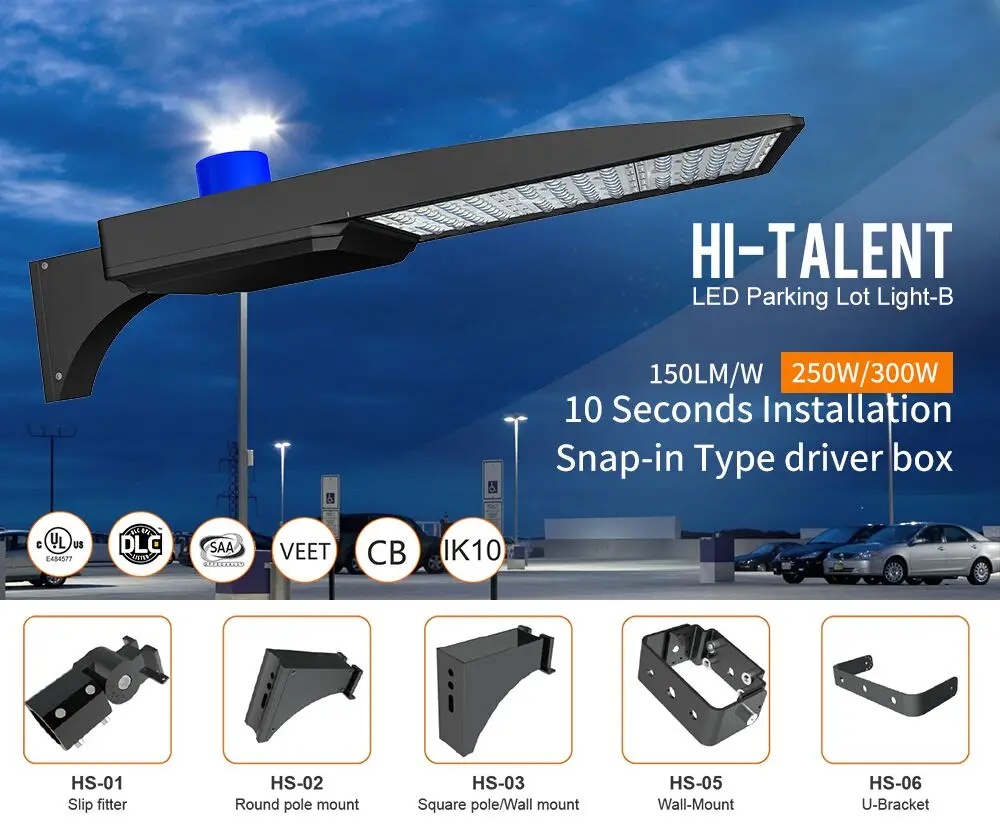

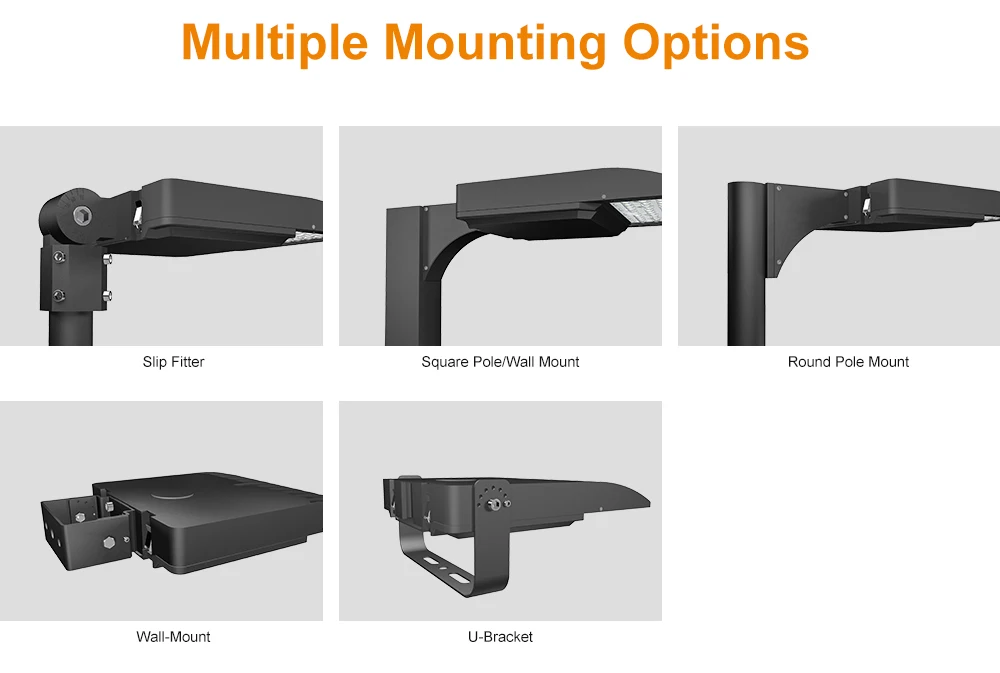

7).Varieties Of Mounting Bracket for different application 300w led street light

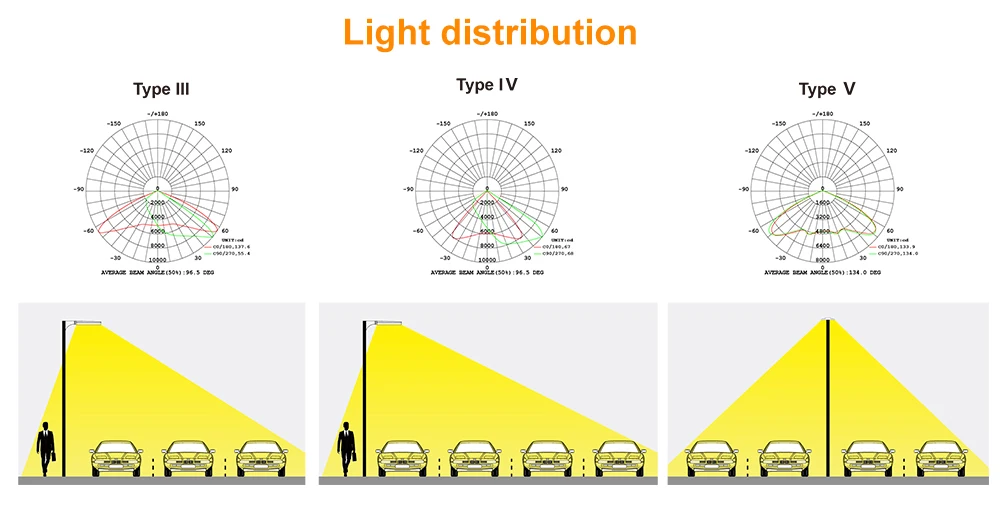

8).Type Ⅲ ,Ⅳ ,Ⅴ Lighting Distribution Optional

8 Seconds Install of Hishine Parking Lot Light-B, Shoebox Light, Street Light

Easy Replacement of Hishine Parking Lot Light-B, Shoebox Light, Street Light

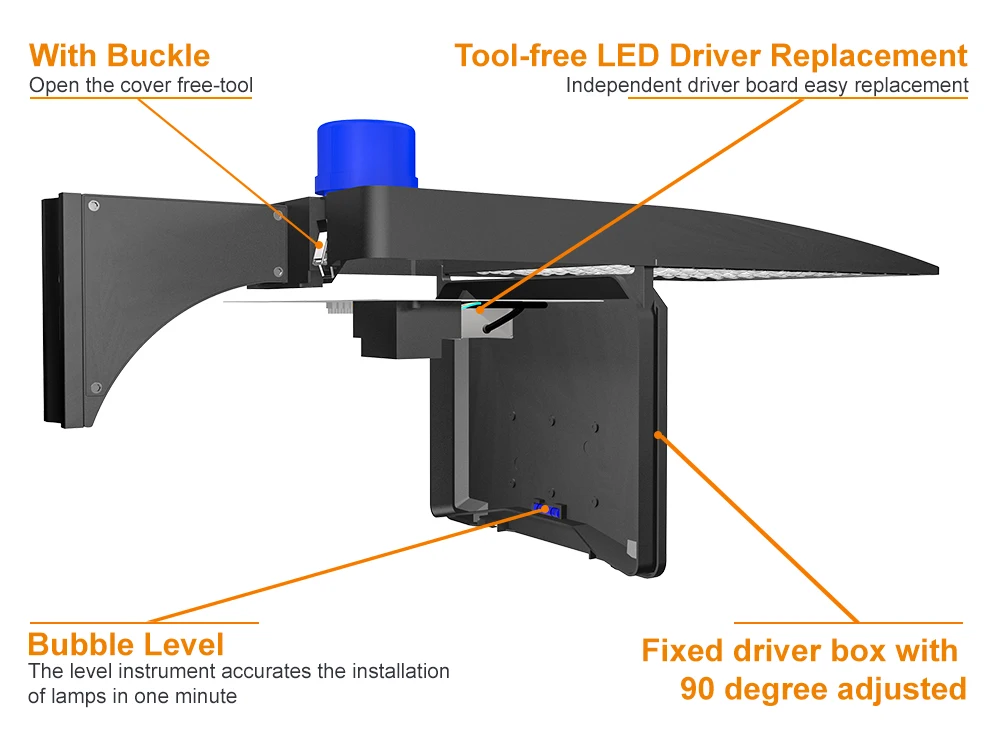

90 Degree Adjustable Driver Box of Hishine Parking Lot Light-B, Shoebox Light, Street Light

180 Degree Adjustable Mounts of Hishine Parking Lot Light-B, Shoebox Light, Street Light
High Efficient Heat Dissipation of Hishine Parking Lot Light-B, Shoebox Light, Street Light
Name
100W shoebox led light
150W shoebox led light
200W shoebox led light
250W shoebox led light
300W shoebox led light
product No.
HS-PL100W-B
HS-PL150W-B
HS-PL200W-B
HS-PL250W-B
HS-PL300W-B
Power
100W
150W
200W
250W
300W
Input Voltage
AC100-277V/347V/480V
Led Source
Lumileds SMD3030
LED Qtys
144PCS
288PCS
288PCS
432PCS
432PCS
Luminous Flux.
17000LM
34000LM
51000LM
42500LM
51000LM
CRI
80RA
CCT
3000-6500K
Operation Temperature
-30-50degree
Lens
Roadway Type Ⅰ, Ⅱ , Ⅲ ,Ⅳ ,Ⅴ Lighting Curve
Housing Material
Die-casting Aluminum
Material Usage
UL DLC SAA compliant,No mercury
IP Rating
IP66
Warranty
7Years
Installation Process


Applications
Widely Used to Outdoor Parking Lot,Square,Large Area,Street,Roadway,Walkway,it can be used as flood light too to light up signs,and can be used as wall pack too to light up area under walls.
