Cheap ZIGBEE wireless water tank level sensor

Introduction of wireless water tank level sensor
The "Liquid height and temperature measuring system in ZIGBEE communicate mode", which include "Liquid height measuring terminal equipment in ZIGBEE communicate mode", "Server Management Software"," GX-iCN-01A Communications Coordinator" and "Configuration Line". It is used for timing measure liquid height value, temperature value and show these value in the "Server Management Software".
Notice 1: The "Liquid height measuring system in ZIGBEE communicate mode" for short "System" as following description.
Notice 2: The "Liquid height measuring terminal equipment in ZIGBEE communicate mode" for short "Terminal" as following description.
Notice 3: The "Server Management Software" for short "Software" as following description.
Notice 4: The "Configuration Line" for short "Line" as following description.
The "Terminal" is used for timing measure liquid height value and temperature value, and transmit these measuring value to the "Software" in ZIGBEE communicate mode, the user can use "Software" to see the liquid height value and manage these "Terminal". The user can set the density of the liquid on the server management software, according to the density value set by the use, the data can be automatically converted into the liquid pressure and liquid level value is displayed.
GX-iCN-01A communications coordinator is connected to the RS232 serial communication interface of the server computer, with 12VDC power adapter for receiving ZIGBEE wireless temperature and pressure measuring terminal transmitted monitoring information.
Server management software "LLMServer" is developed by our company, ZIGBEE terminal control management software, which features are comprehensive, ZIGBEE terminal device can perform basic control and management.
The configuration cable to connect the RS232 serial communication interface of PC and the ZIGBEE wireless temperature and pressure measuring terminal, only on ZIGBEE wireless temperature and pressure measurements when using terminal base configuration before use.
Parameter of wireless water tank level sensor
1. Measure Range: 0~3m diesel.
2.Measure Precision: 0.5%F.S.
3. Power Supply Way: 3.6VDC battery and 10VDC~35VDC external power supply.
4.Defend Grade: IP65.
5. Work Temperature: -25°C~85°C.
6.Storage Temperature: -25°C~85°C.
7.Communication Frequency: 2.405GHz~2.480GHz
8. Interface Type: NPT1.
9.Timing Work Time: 3 minute ~ 1000 minute(can set).
10.Append Function: LCD, key-press, GPS.
11."Terminal" battery use time limit: for example, use number one battery "ER34615", its capacity is 19AH, the "System" work frequency is work once per hour: The GXPS609 terminal can work about 1800 days.
12.Battery model select: recommend use number one battery "ER34615". If user want select battery by self, please according to the battery standard as following. battery voltage: 3.0VDC~3.6VDC; max continue output current: more than 0.3A; pulse output current capacity: more than 0.5A.
13. Power supply use illuminate: the "Terminal" can use battery or external power supply. See the terminal structure drawing, the position of external power supply in the "External Electrical Interface", in the interface, "1" is anode, "2" is cathode.

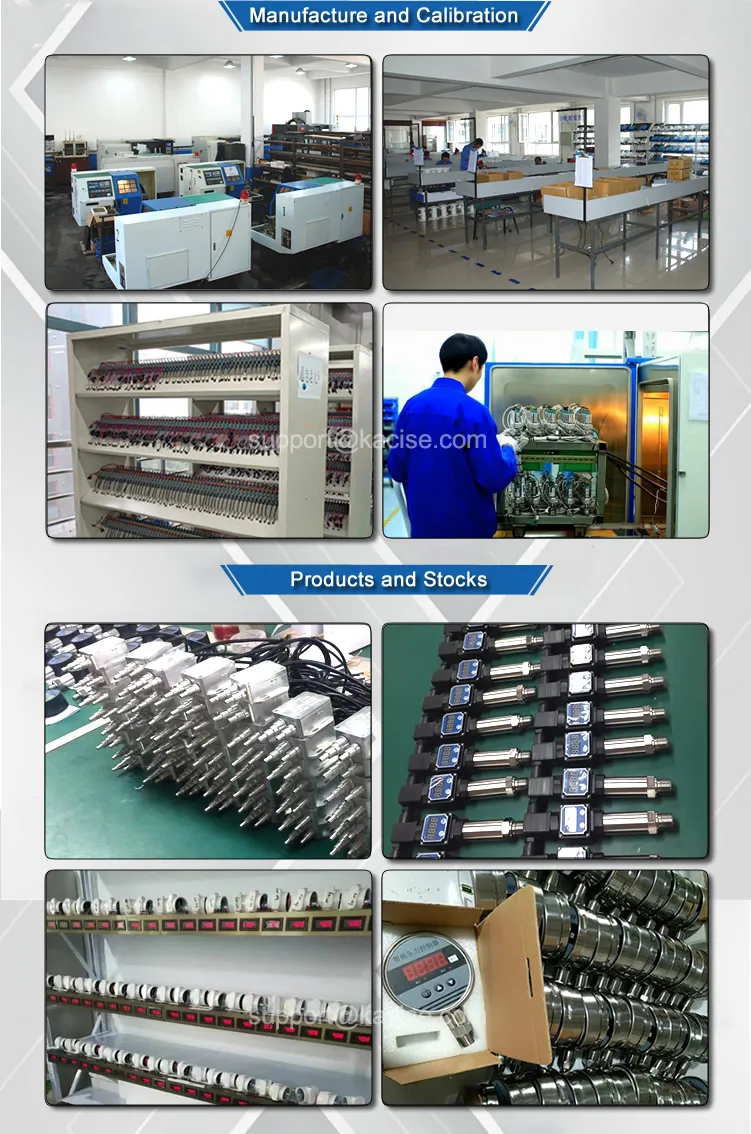

Production Flow
Packaging & Shipping

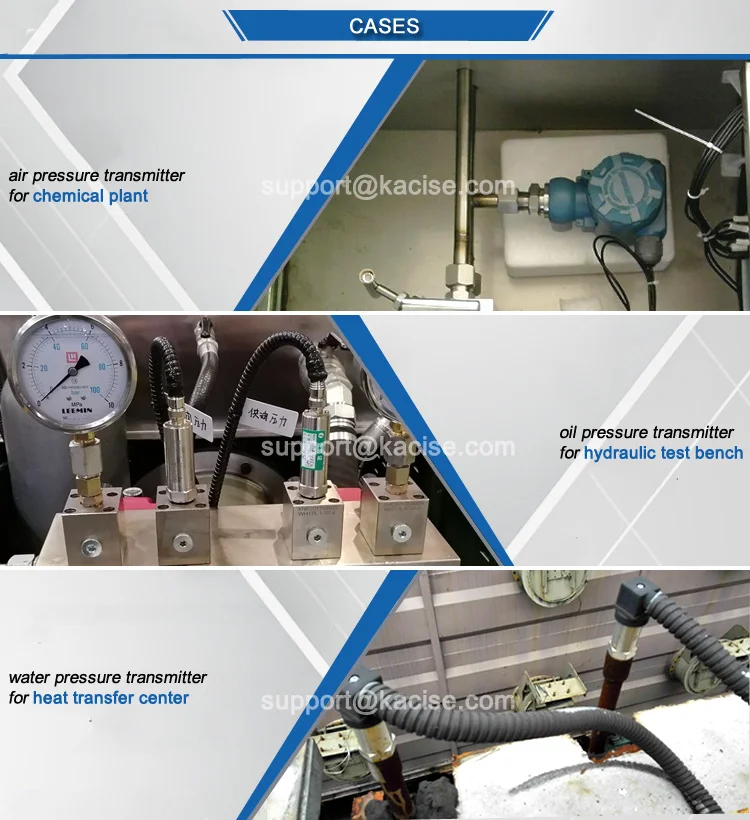

Cases
