Bluetooth 4.0 Low Energy Ti cc2640 rf Module pcb ic chip for iot

IoT / ZigBee

Low cost BLE4.1 CC2640-S1 module, TI CC2640 module
Description:
Radioland would like to announce a low-cost and low-power consumption module which has all of the Bluetooth Smart 4.1 functionalities. The RL-CC2640-S1 module fully supports the single mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. RF Core"s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory for custom applications.
Features:
Built in CC2640F128 Bluetooth Smart (BLE 4.1) System-On-Chip (SOC) 128 kB Flash / 20 kB SRAM RF Output Power: +5 dBm RF Receive Sensitivity: -96 dBm Size: 11.8mm x 15.8mm Operating Voltage: 1.8V to 3.8V Operating Temperature: -40 to +85C 8.4 mA Transmit Mode (+5 dBm) 7.4 mA Receive Mode 1μA Standby (SRAM/CPU retention and RTC running) with quick 100 μs start up 200nA Shutdown 61μA/MHz Active CPU Current Drivers, Bluetooth Low Energy Controller, and bootloader in ROM Flexible peripheral set On board 32 kHZ and 24 MHz Crystals Worldwide Acceptance Pictures:
Bluetooth 4.0 Low Energy Ti cc2640 rf Module pcb ic chip for iot - ANKUX.COM

Bluetooth 4.0 Low Energy Ti cc2640 rf Module pcb ic chip for iot - ANKUX.COM

Application fields:
Consumer electronics Mobile phone accessories Sports & Fitness equipment HID applications Home and Building Automation, Lighting Control, Alarm and Security Electronic Shelf Labeling, Proximity Tags
Packing detail:
Poly bag, card board package
Delivery Time:
Samples: 1-2 days after comfirm an order, bulk order: 5-10 days
Delivery
Bluetooth 4.0 Low Energy Ti cc2640 rf Module pcb ic chip for iot - ANKUX.COM

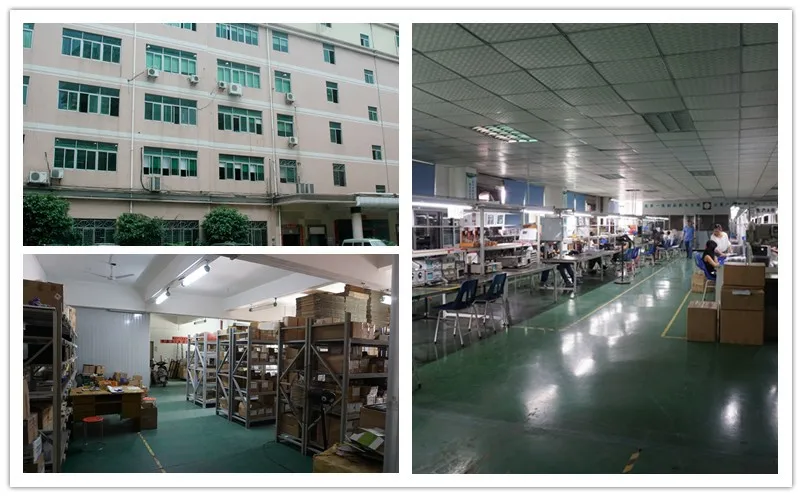

Factory

OEM Service
1. Sample can be provided , lead time : 3 days , Sample Charge Can be Refund After Confirm an order !
2.Customized color and size are available, OEM orders are welcomed!
Warranty
1. All products and accessories have been tested by 3 times before ship out.
2. All products have 2 months warranty, If there is no man-made problem, we will provide free technical services or change the new product to customers.
3. We own the best after-sale service, any problems, Our team will do our best to solve problems for customer.
