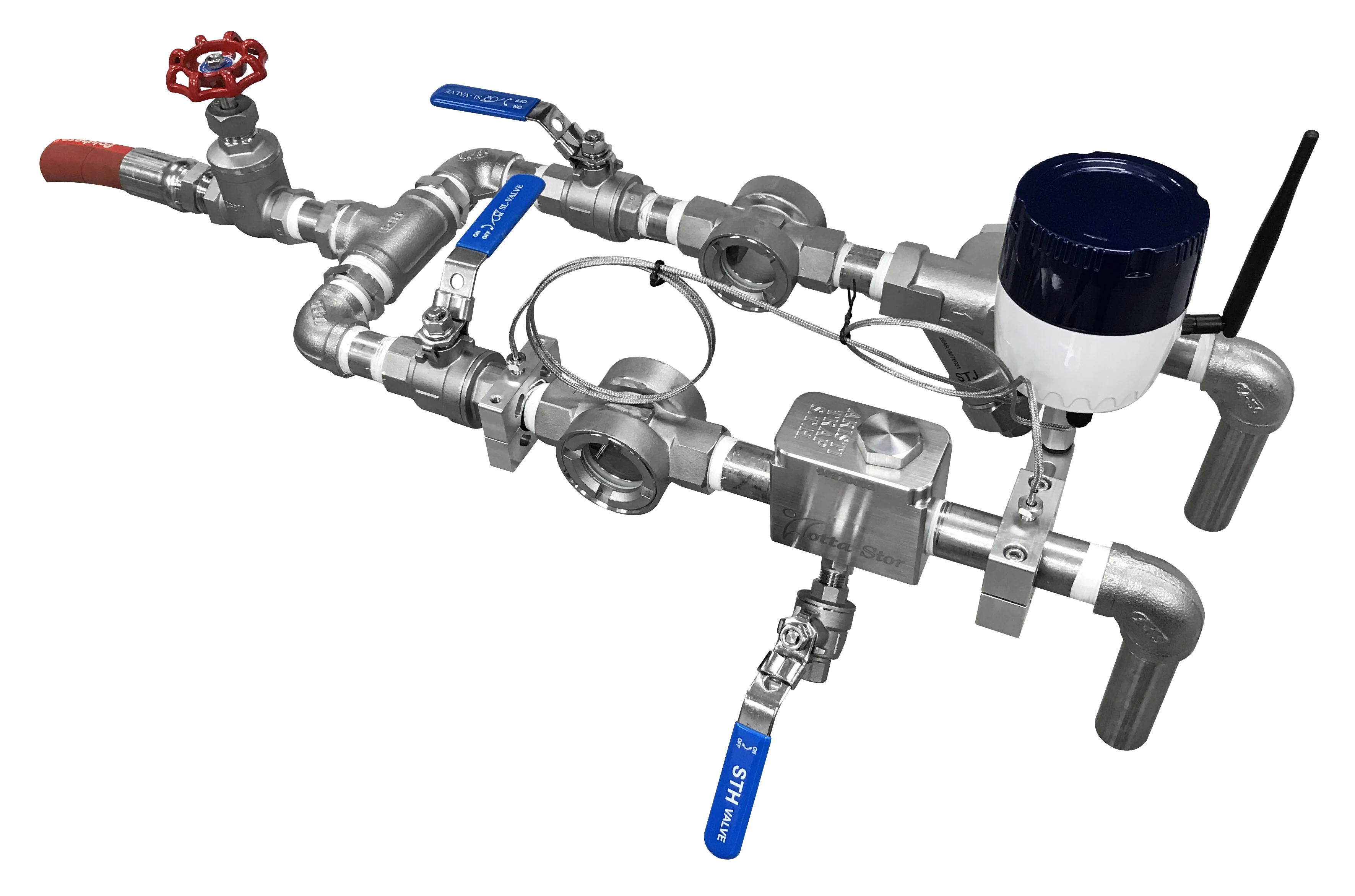

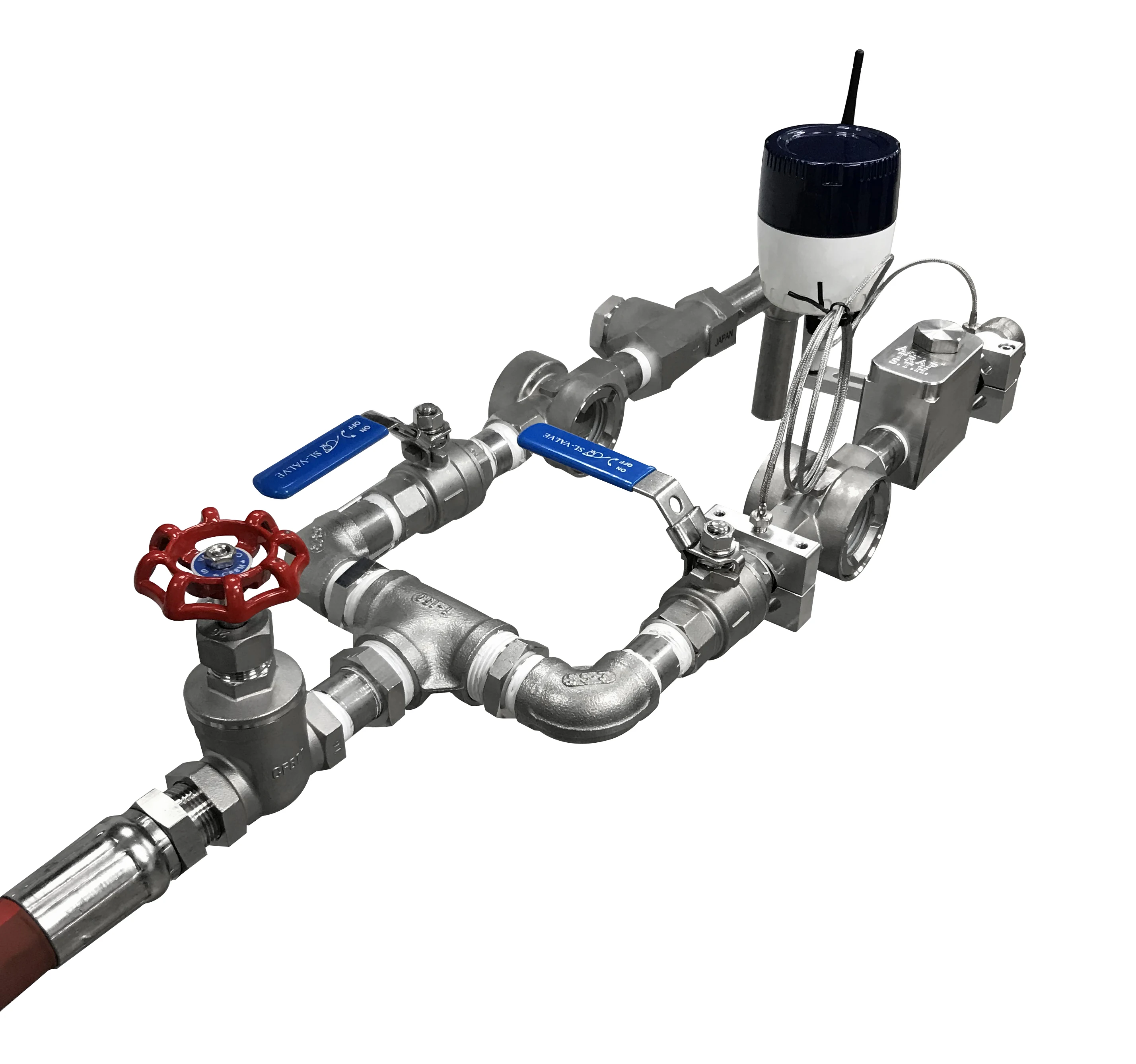

Best quality wireless monitoring sensor solution for steam trap
IoT / ZigBee

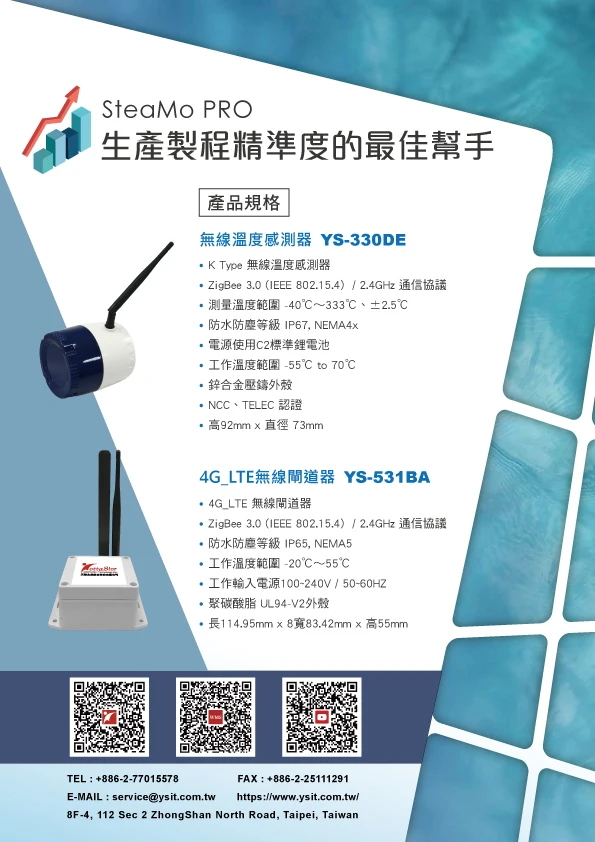

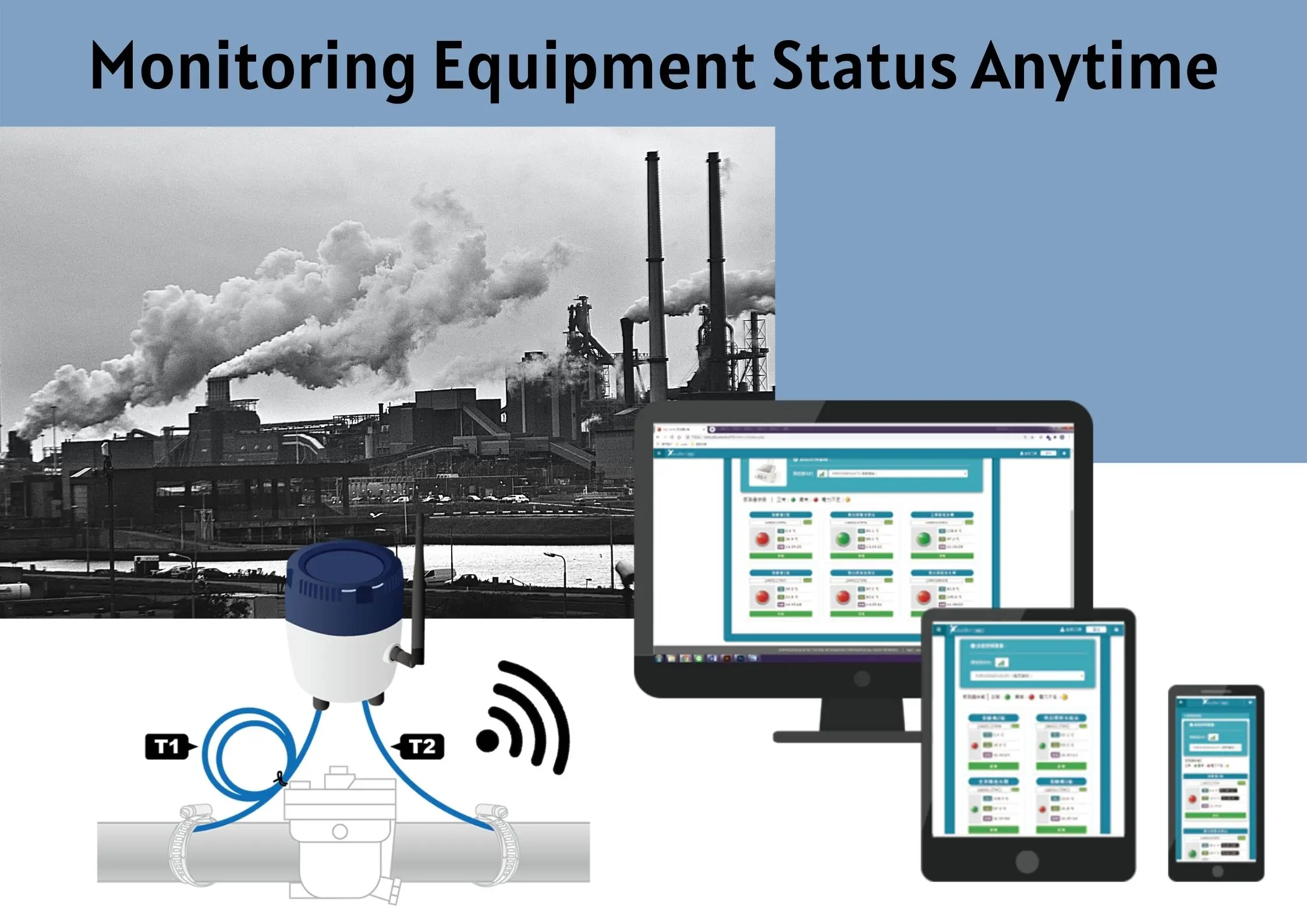

Installation Instructions Specification Temperature Sensor Item Value Wiring method of temperature sensor bare wireTemperature probe Signal input Normal 0 0 2 false false false EN-US ZH-TW X-NONE K Type CLASS B Temperature wire PTFE Teflon coating Detect Temperature Points 2 Response time 60S Measuring Range -40~333 ±2.5 Radio output ZigBee 3.0 (IEEE 802.15.4) / 2.4GHz Transmission Power 19dBm Antenna 3dBi Power Type 2 C lithium battery Battery life 2-3 years Power consumption Max power(Join) 0.3W / Standby power 0.162mW IP degree IP67,NEMA4x Humidity Rating 5~90% @ 45C Operational Temperature -25 to 75 Certification NCC TELEC Housing Die cast zinc, powder coated Gateway Item Value Chipset ublox TOBY-L280 / TOBY-L220 Model Number YS-531BA Application Wireless IoT Gateway Place of Origin Taiwan Radio output ZigBee 3.0 : IEEE 802.15.4 / 2.4GHz 4G Antenna 5dBi Protocol TCP, HTTP, MQTT Power 100~240V / 50~60HZ
