Smart Home BLE Gateway
The Application of our gateway is open to be reprogrammed
The Application can be java, driving our gateway hardware through K Bus

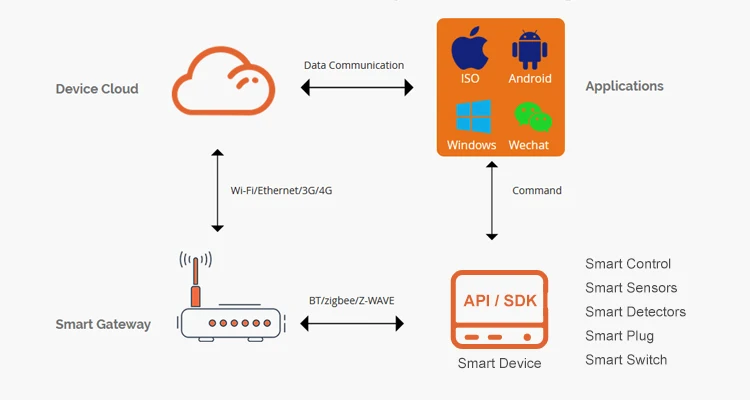

You can use your own application and connect to your own cloud
Our Driver layer is including Zigbee/Z wave/BLE Protocol and the gateway is including Wifi and Ethernet Port

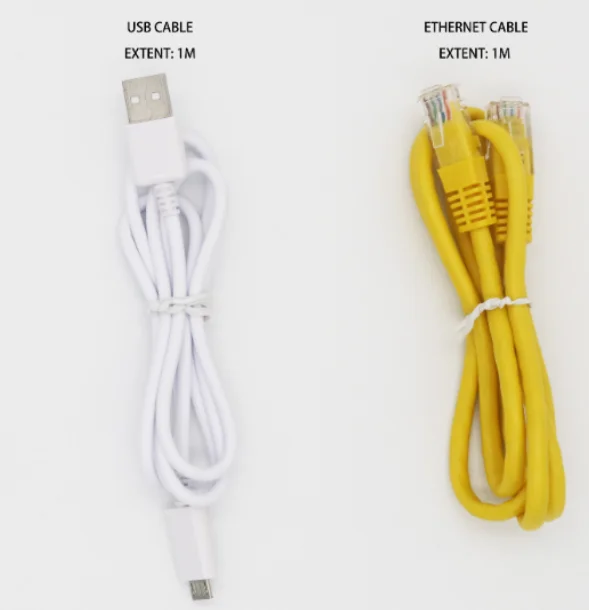

Plugs are not included in the Accessories,please tell us which country is the standard plug and place a separate order.

Plugs are not included in the accessories,please tell us which country is the standard plug and place a separate order.
ProtocolsWi-Fi, Zigbee, Bluetooth4.0, Z-Wave(Additional),BLEAccess DevicesUp to 100SystemOpenWrtCPUQCA4531 (650MHz)Wireless DistanceWi-Fi>100m;Zigbee> 200m; Bluetooth>20m; Z-wave>100mPower AdapterInput:100V~240V/50-60HZ ouput:5V/2AWorking Humidity≤95%RH,Non-CondensingWorking Temperature-5~60鈩?/SPAN>Pin HolePress: back to factory settingIndicator LEDThree ( Green ;Yellow; Red )Feature options
BLE module based on the silicon labs ERF32BG21BLE module have built-in power amplifier chip,make scanning BLE more sensitiveBluetooth 5.0



Integration Developer ZoneNO.TitleSummaryLink1How to Connect an IoT Gateway to MQTT Server?
MQTT is a machine-to-machine (M2M)/"Internet of Things" connectivity protocol. It was designed as an extremely lightweight publish/subscribe messaging transport. Dusun gateway supports MQTT protocol to connect to cloud platform.
https://www.dusuniot.com/set-up-mqtt-server-for-gateway
2How to Change Dusun"s IoT Gateway into A LwM2M Client?
Gateways communicate with sensors/devices over varying connectivity types. Dusun smart gateways are Linux based and programmable. Then Dusun"s gateway can use any standard protocols to transfer data into Cloud.
https://www.dusuniot.com/change-gateway-into-lwm2m-client
3Developing an application communicating with BLE devices on Dusun"s gateways
BLE is suitable for IoT applications. Many operating systems support BLE and thus BLE is very popular. The Dusun IoT gateways support most connectivity protocols including BLE(4.x/5.0/Mesh), ZigBee 1.2/3.0, Z-Wave, TCP/UDP, etc.
https://www.dusuniot.com/develop-application-with-ble
4The video of How to Set up MQTT-apache-Apollo server for Dusun"s gateway
Details video full versionhttps://www.youtube.com/watch?v=Pq40LPz7qTg
5View code samples on our GitHub
Dusun provides code samples and APIs for connecting Z-wave/Zigbee/BLE devices. Users revise little code to support their own IoT wireless devices.https://github.com/dusuniot
Iot solution of main customerCustomer logo ApplicationSummaryLink

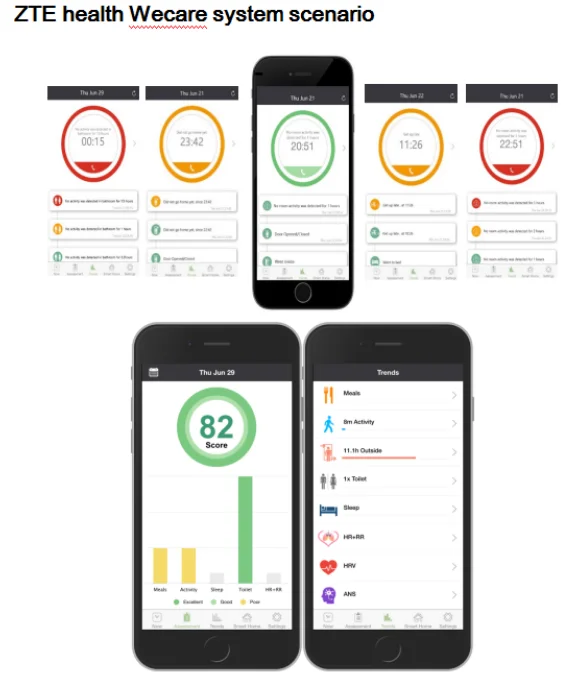

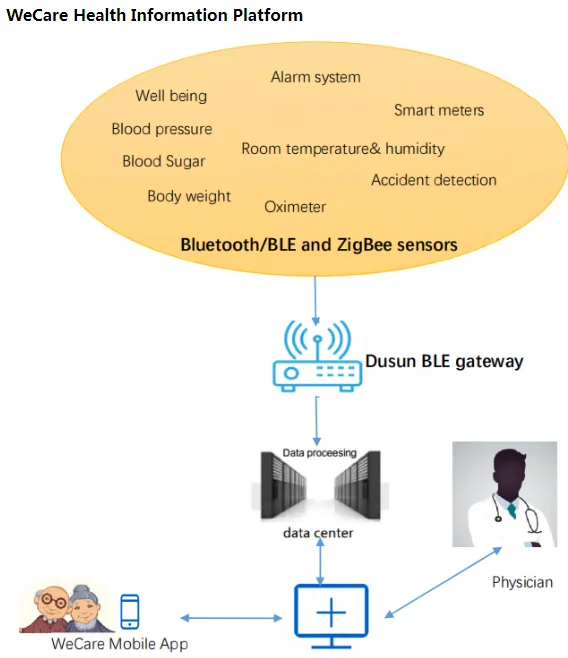

An introduction to ZTE Healths elder health monitoring systemThe average age growing of China urban population, with an increasing number of 65+ citizens, is calling for the cities to provide global services specifically geared to elderly people. More and more elderly are no longer living with their children in China. In this context, collecting data from the elderlys environment and his/her habits and making them available in a structured way to third parties for analysis, is the first step towards the realization of innovative user-centric services. IoT technological advancements lead to smart objects being capable of identifying, locating, sensing and connecting and thus leading to new forms of communication between people and things and things themselves. https://www.dusuniot.com/zte-s-healthcare-solution-with-ble-

Dusun products usedl Dusun Bluetooth Low energy (BLE) IoT gateway/hub
n Support most connectivity IoT protocols. Dusun"s gateways support most standard internet connectivity protocols including MQQT, COAP, LMW2M, etc.
n Support many connectivity types simultaneously. Dusun"s gateways can connect Bluetooth(BLE), and ZigBee, ZWave devices in the same time.
n Dusun BLE gateways have the ability to provision, update and control access of connected devices.
n Dusun"s BLE gateways/hubs take many known measures to counter communication and physical attacks. They support common encryption algorithms, hash algorithms, authentication ways.
Dusun BLE devices for health monitoring
BLE Oximeter
BLE Blood pressure monitor
BLE body weight scale



Why Dusun productsDusun IoT BLE gateways connect devices, controllers and sensors to the cloud or platform. It plays an important role in the Wecare system to collect sensors data for further processing. Dusun"s BLE gateways has the following products functionality and advantage:1. Great BLE performance. Great BLE performance makes it suitable for connecting many BLE smart health monitoring sensors. BLE is an open standard and is supported by most mobile phones. BLE ensures the interoperability of products from different manufacturers. The gateway supports BLE 5.0 and BLE Mesh protocols.2. Programmable and good technical support. Dusun smart BLE gateways are programmable and Dusun provides coding samples for rapid development. The programmable ability lets ZTE health embed Dusun"s gateway easily. Dusun provides system-level technical support for their application.3. Support ZigBee and Z-Wave in the same time. This feature let ZTE-health connect different types of IoT sensors for building their system. ZigBee and Z-wave are IoT"s important protocols.
