It"s a Bluetooth Gateway with POE or DC power supply. It can be used in various scenarios flexibly. It can control BLE device remotely, receives the data sent by the BLE devices and sends it to servers. The Wi-Fi data rate can be up to 580Mbps and BLE data rate can be up to 2Mbps. It can also supports the POE switch power supply and 5V adapter power supply, It reserves the ZigBee function and 4G LTE function.
FEATURE:
- Support the POE switch power supply and 5V adapter power supply
- Support IEEE802.3-2012 Type 1, the IEEE802.3-2012 Type 1 requires a power supply device (PSE) to provide 44 to 57V, and the power of the powered device (PD) must not exceed 12.95 W and the current does not exceed 350 mA.
- Support IEEE802.11ac,IEEE802.11n,IEEE802.11g,IEEE 802.11b Protocol;
- Support Network Communication of 4G Module (LTE-TDD/LTE-FDD) ( option ) ;
- Support Bluetooth 5.0;
- Support ZigBee3.0 (option)
- Supporting waterproof and dustproof;
- One WAN/LAN variable network port
- RoHS compliance(Lead-free)
- FCC,CE compliance

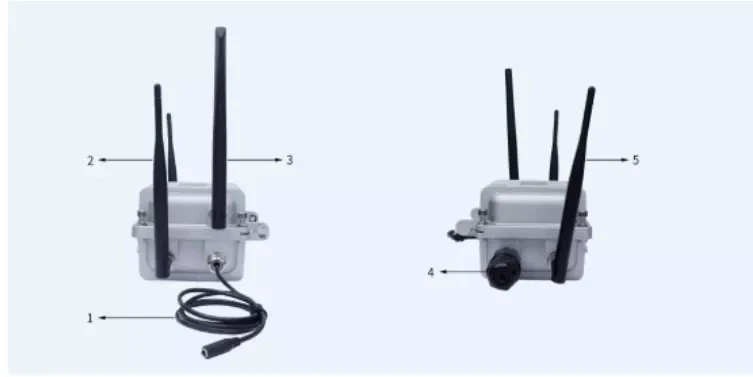

1. DC-DC Power Supply Interface(∅3.5 mm);

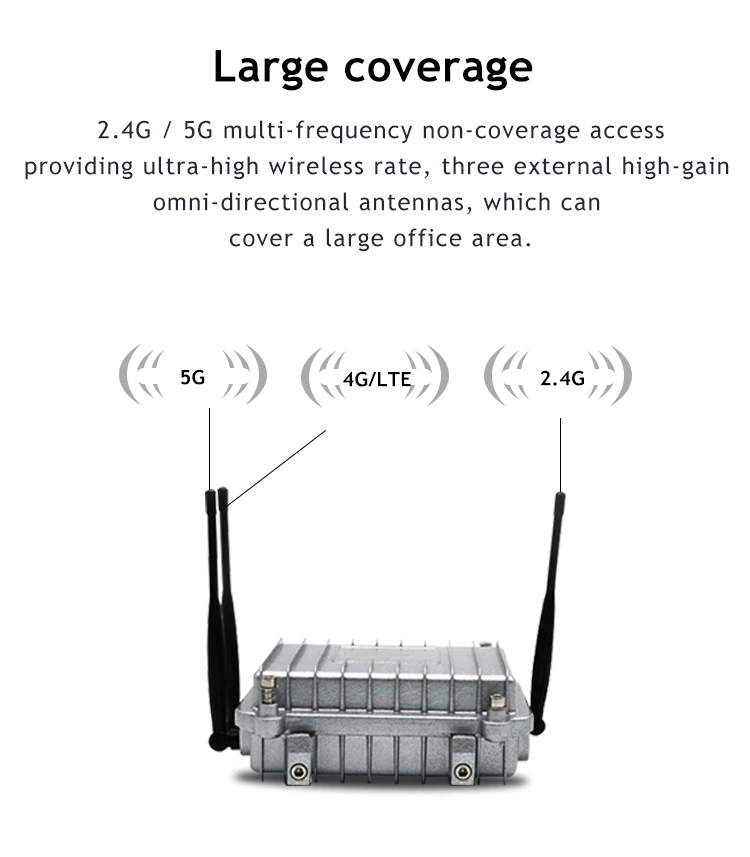

2. 2.4GHz Wi-Fi Antenna
3. 5GHZ Wi-Fi Antenna
4. RJ45 Interface(Network Interface and POE Power Supply Interface);
5. LTE module antenna



Category
Specifications
Power Supply Port
Support DC input , input Voltage range is 4.5V to 5V. Power seat aperture is 3.5mm. The needle diameter is1.35 mm and is positive. Power adapter:100-240V 50/60HZ, Output is 5V/2A
Reset Button
The reset button inside gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings. Network Interface The network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN variable.Indicator LEDs 1).Power LED normally on when powered on
2).Network LED normally on when connected
3).Wi-Fi LED normally on after connecting to Wi-Fi for 1-2 sec
Operating Temperature -20 儈70 ?/TD>Currents 350mA@5V Waterproof Level IP65Wi-Fi Performance IEEE wireless LAN standard: IEEE802.11ac, IEEE802.11n; IEEE802.11g; IEEE 802.11b
Data Rate: IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
MCS0~MCS9 @ HT40/ 5GHz band
IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band
Sensitivity: VHT80 MCS9 : -60dBm@10% PER(MCS9) /5GHz band
HT40 MCS9 : -63dBm@10% PER(MCS9) /5GHz band
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
Transmit Power: IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band
IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band
IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
Wireless Security: WPA/WPA2, WEP, TKIP, and AES
Working mode : Bridge,Gateway,AP Client
ZigBee Performance TX Power: 17.5dBm
Range: 100 meters minimum, open filed
Receiving Sensibility:-94dBm
Frequency offset: +/-20KHZ
Bluetooth Performance Bluetooth Protocol: Bluetooth 5.0
TX Power: 19.5dBm
Range: 150 meters minimum, open filed
Receiving Sensibility: -80dBm @ 0.1%BER
Frequency offset: +/-20KHZ
LTE Performance Operation Frequency Band: 850/900/1800/1900MHZ
GPRS Characteristic
GPRS
Global: LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
North America: LTE TDD:B2/B4/B12/B13
LTE TDD:B39(for cat.M1 only)
EGPRS
Cat.M1/Cat.NB1
Application:

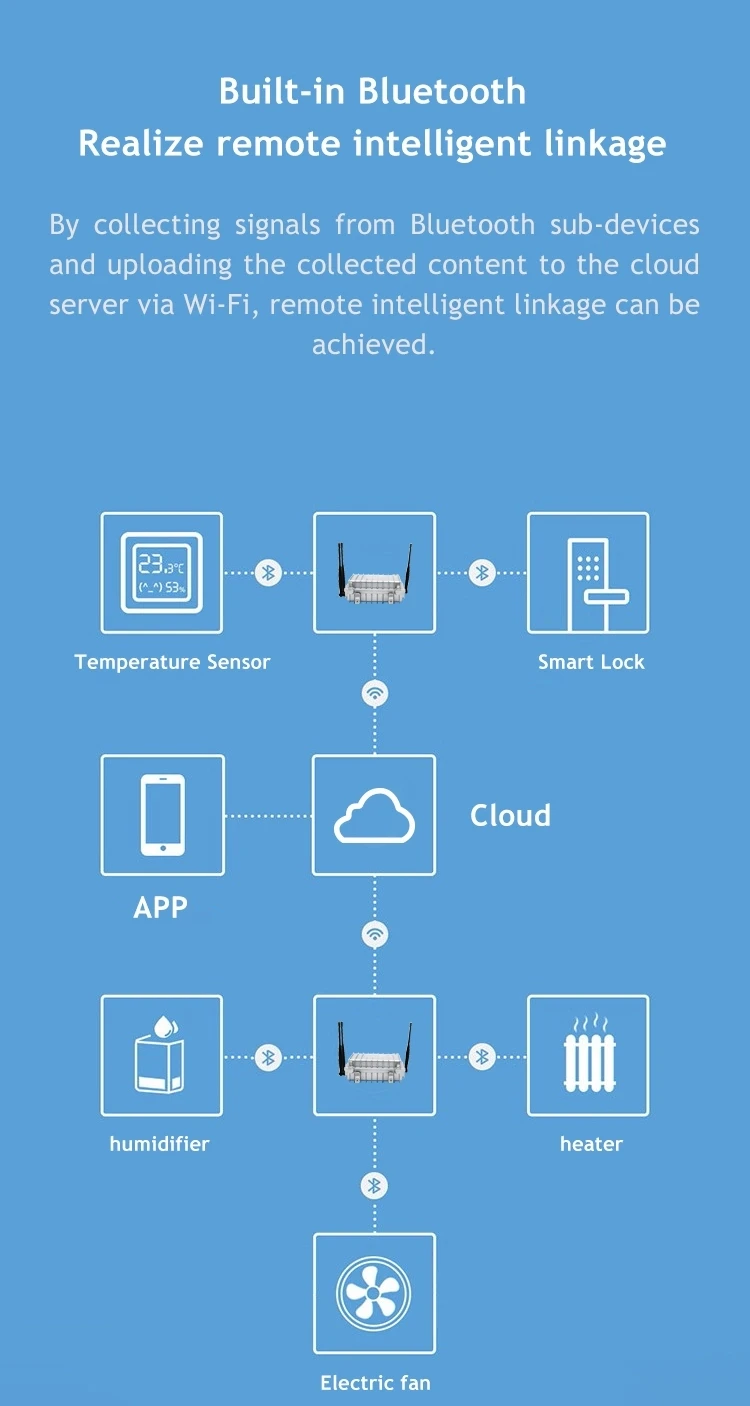

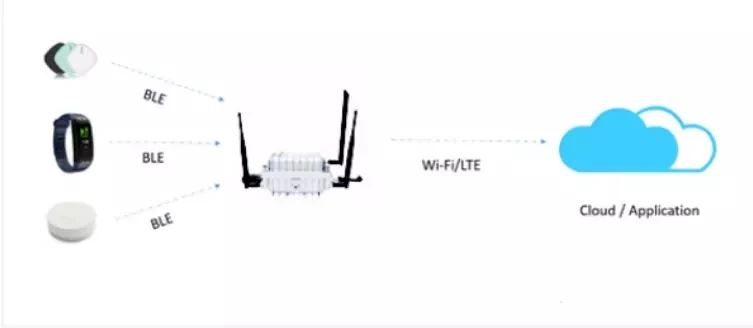

1) Bluetooth Gateway collects information about Beacon nearby, including RSSI, MAC, etc., once per second.
2) Bluetooth Gateway send the Beacon information to Cloud via Wi-Fi or LTE once per second.
3) Bluetooth Gateway support the TCP/IP, UDP protocol, and can support the MQTT, LWM2M protocol .

ModeWi-Fi 2.4G/5G
Bluetooth 5.0
ZigBee3.0
LTE CatM1
POE
DSGW-010-1
-
- -
DSGW-010-2
-
-
-
-
DSGW-010-3
-
-
-
-
-
Why Dusun Products
IoT gateways sit at the intersection of Iot systems -connected devices, controllers and sensors - and the cloud. It plays a key role in the smart home system. Dusun"s IoT gateways has the following advantage:
1. Great Zigbee 3.0 performance. A ZigBee 3.0 certification scheme ensures the interoperability of products from different manufacturers. Dusun"s ZigBee 3.0 Gateways run very stable and have great performance.
2. Great Scalability and flexibility. Dusun smart gateways are programmable which means they support extended or secondary development. Dusun provides SDKs and APIs which can be used to let customers make their programs to control the data transfer procedure and use their security mechanism. The programmable ability lets ZIROOM embed Dusun"s gateway easily. Dusun provides chip-level technical support for their application.
3.High quality. Dusun has great design team and product manufacturing team. Dusun designs and manufactures the gateways with high quality all by their own.
General Gateway Block Diagram

The brands of smart devices can connect to our gateway(tested)

Private zigbee profile Integration
If you encounter a private zigbee profile, if you tell us the agreement, we can help you pay for the docking
