9" Inwall Flush Mount Android Tablets RJ45 PoE WiFi
Main Features:
7" Capacitive Touch Screen connected with printerIntegrated Serial Port UART TTL, RS232, RS485In-Wall Android 4.2 Touchscreen for flush mountIntegrated bracket for mounting in walls or cabinetsScreen Viewing Angle is Adjustable (90 Degrees)MicrophoneBuilt in Speakers (2 x 1 W)Includes Volume, Power and Back ButtonsTF card slot on the right side, USB HOST on the backPoE (power and data over ethernet), 48V; the tablet can also be powered by 5V power supply
Screen Size(optional) 7" / 9"
Installation(optional) Hang on the tablet on the wall (for 9" only)
Embed the tablet in the wall
Network(optional) Cabled network
Wi-Fi (150M, IEEE 802.11 b/g/n)
3G (external 3G dongle)
Power Supply(optional) Power over ethernet (48V)
Power adaptor(110V-220V AC IN, 12VDCOUT)
Battery
Other(optional) Front camera
RS232 / RS485 board (only one serial port available)
GPS module (can just show longitude and altitude)
USB port
ZigBee module
Thermal printer
90 degree switchable angle:

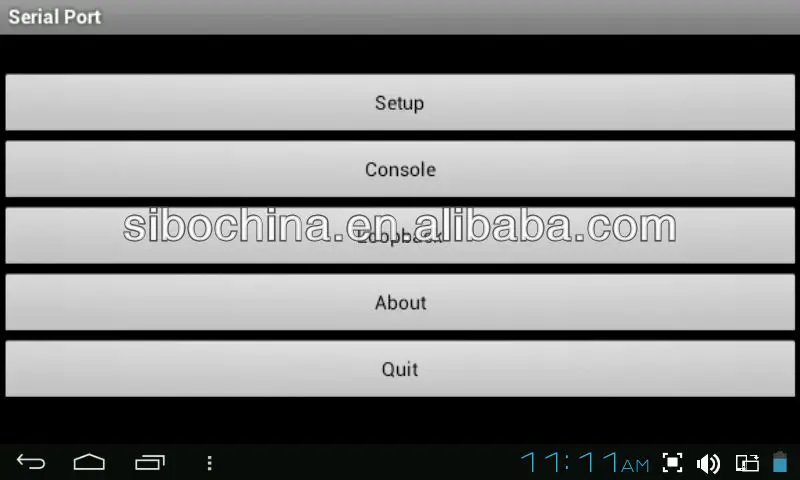

Demo APP for RS232 / RS485:

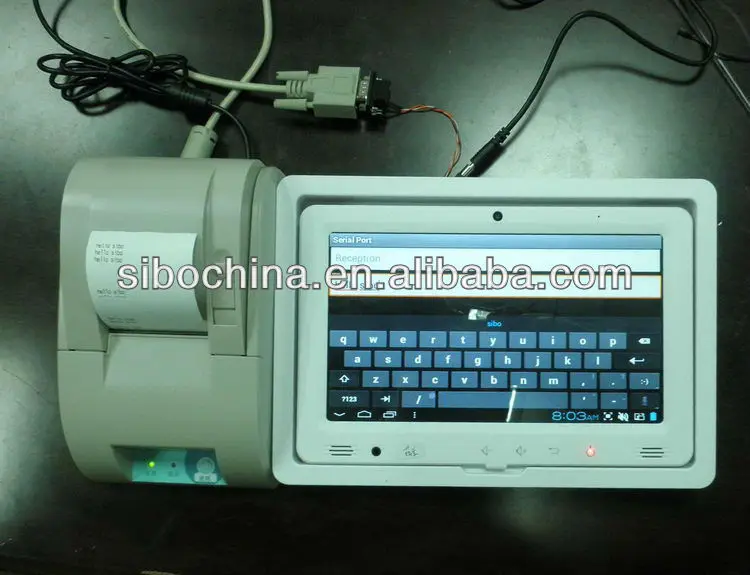

Connect Printer:


Mounting:

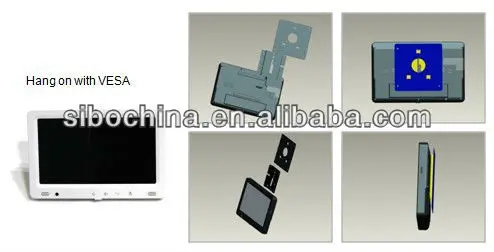

Hang the tablet PC on the wall(VESA mount)

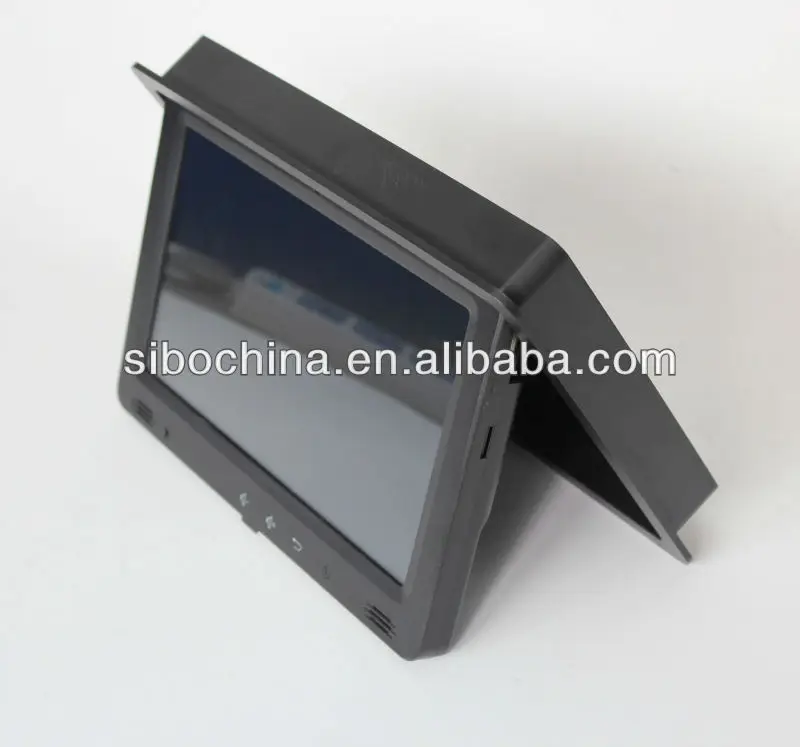

Embed the tablet PC in the wall with metal box(flush mount)

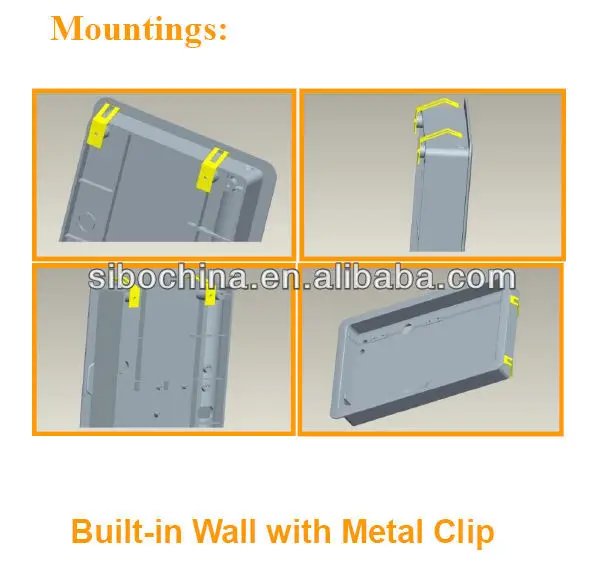

Embed the tablet PC in the wall with metal clips(flush mount)

Application:
Home automation, control other devices in homeData collectionPayment automation, POS machine, Lottery machineSecurity systemShowing energy data in homesHome/Building/Hotel Automation Integration
Specification:
Model Number
Q9
Screen Size
9 inch
Screen Type
High sensitivity TFT LCD capacitive touch screen (five points multi touch), 800 × 480, 16 : 9
Opearating System
Android 4.2
Language
Support multilanguage (44 countries)
Processor
VIA WM8850, 1.2Ghz, Cortex-A9
GPU
Mali-400
RAM
DDR3 512MB
Nand Flash
8GB
Supported Voltage
9V - 27V
Mounting cut-out
5.5" x 7.875"
Welcome your sample order for test at first! OEM / ODM available!
