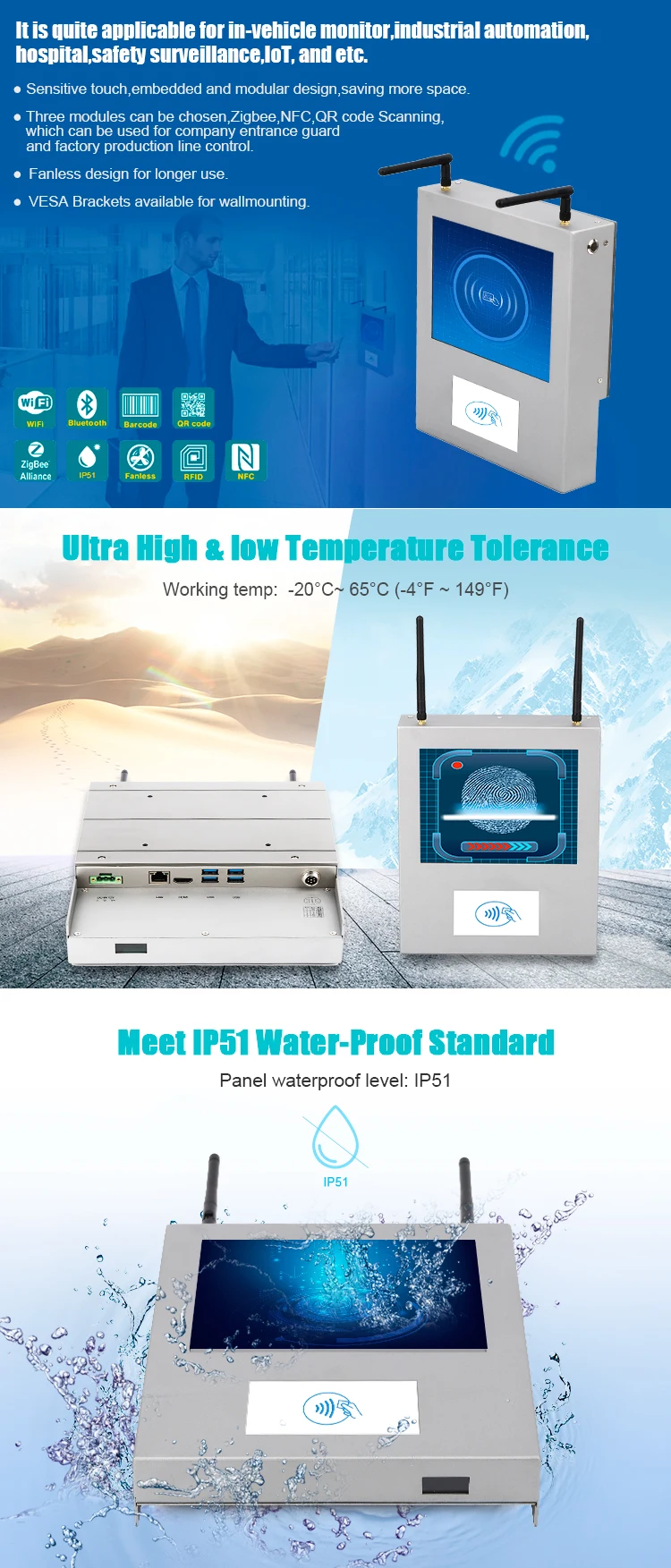

8.1 inch wall-mounting clear display touch panel pc for ZigBee Home Automation 8.1" Intel Braswell processor quad core all in one pc with industrial Al-alloy housing 1.Sensitive touch,embedded and modular design,saving more space.
2.Three modules can be chosen,Zigbee,RF,QR code Scanning,which can be used for company entrance guard and factory production line control.
3.Fanless design for longer use.
4.VESA Brackets available for wallmounting.
Category Descriptions
Model No. EVC-4011
Nucleus
Module
CPU Intel® Celeron® Processor N3160 (Quad Core 2M Cache, up to 2.24 Ghz)
Intel® Pentium® Processor N3710 (Quad Core 2M Cache, up to 2.56 Ghz)
Intel® Celeron® Processor N3010 (Dual Core 2M Cache, up to 2.24 GHz)
Chipset Intel® Braswell Chipset integrated chipset
BIOS AMI 64Mbit Flash ROM
RAM Onboard DDR3L 1600MHZ 2GB(Up to 8GB)
Storage 1*mSATA slot (16G/32G/64G/128G SSD optional )
1*SATA bay(7+15P 500G-1T 2.5" HDD optional)
Graphic Integrated Intel® HD Graphics 400
Network 1*Intel® Ethernet Controller I211AT 1000M lan
(Up to 2, Support Intel® Ethernet Controller I210 Series)
Display LCD 8.1" WXGA TFT color LCD, resolution: 800 x 600,
LCD MTBF: 50,000 HRS (standard)
Touch Screen HMI panel 4-wire resistive, Touch time:1 million @ 250gf Force
I/O Lan 1*RJ45 (Gigabit Ethernet)
WIFI 1*WiFi module with 2 antennas(Optional)
USB 4*USB3.0
COM 2*RS232
Display 1*LCD, 1*HDMI
Button 1*Power button
Expansion 1*mini-PCIe,support WiFi and Bluetooth
1*Zigbee wireless communication module
1* Bar & QR code scanning module
1* IC card reader module
OS Operating System Windows 7/8/10, Linux
Structure Dissipation high-quality profile case for quick heat dissipation
Housing aluminum alloy
Bracket VESA bracket (Optional)

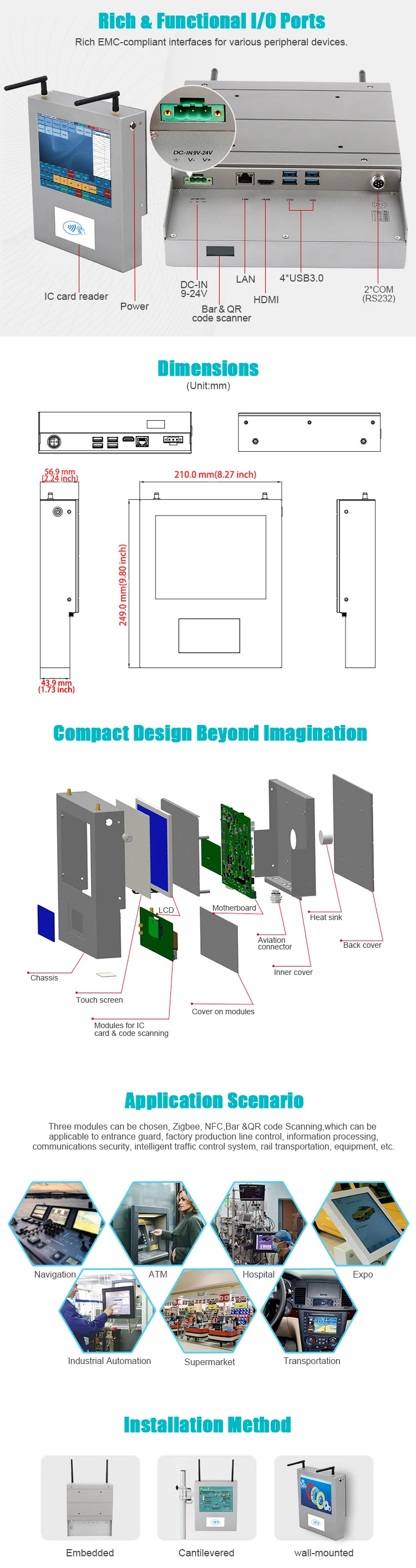

Dimensions 210.0 x 249.0 x 56.9 mm / 8.27 x 9.80 x 2.24 Inch (WxHxD)
Weight 2.41KG(N.W.)
Power DC In DC 9-24V power supply and AC power adapter
Temperature
& Humidity
Working Temp. -20~ 65°C (-4°F~149°F)
Strorage Temp. -40°C~ 85°C (-40°F~185°F)
Working Humidity 10% - 95% relative humidity(Non-condensing)
Environment Protection level IP51
Safety CE,FCC,RoHS

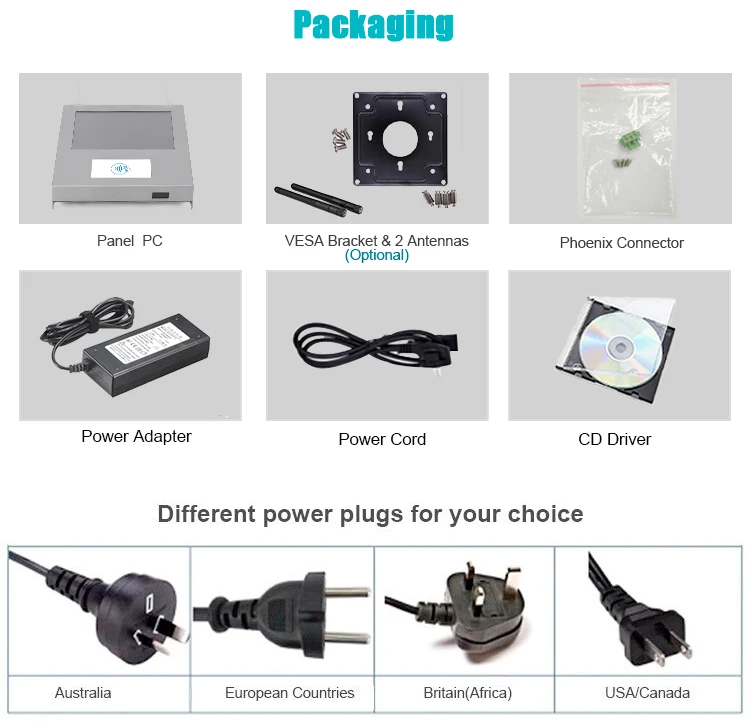

Package Items panel pc,power adapter,Power cord,CD Driver,
VESA bracket & 2 Antennas(Optional)
