Brand
eSky
Color
Black
Texture
Waterproof design / suitable for vehicles
Place of Product
Jiangsu Province,China
Material
PC+ABS
Shape
rectangle
Size
105*65*26mm
MOQ
100

General Description

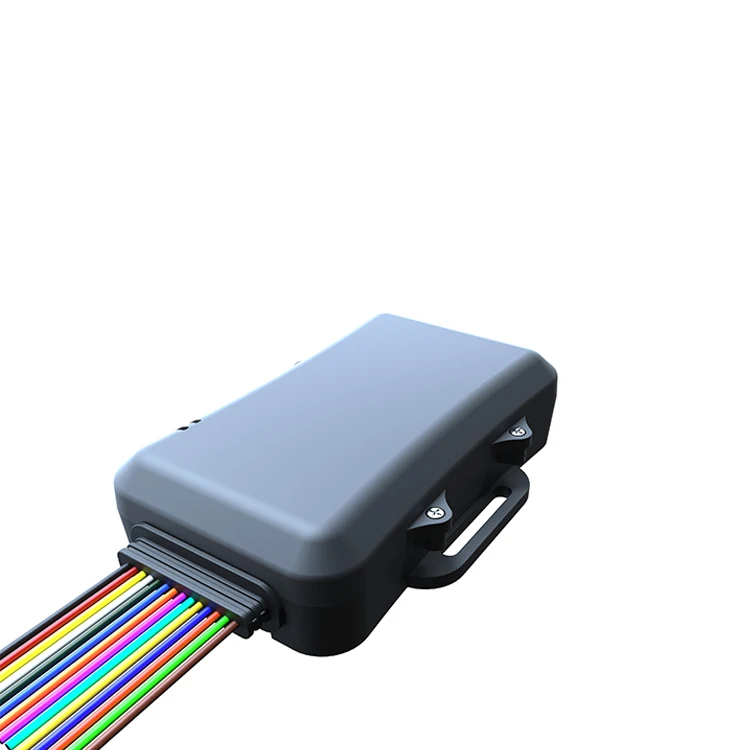

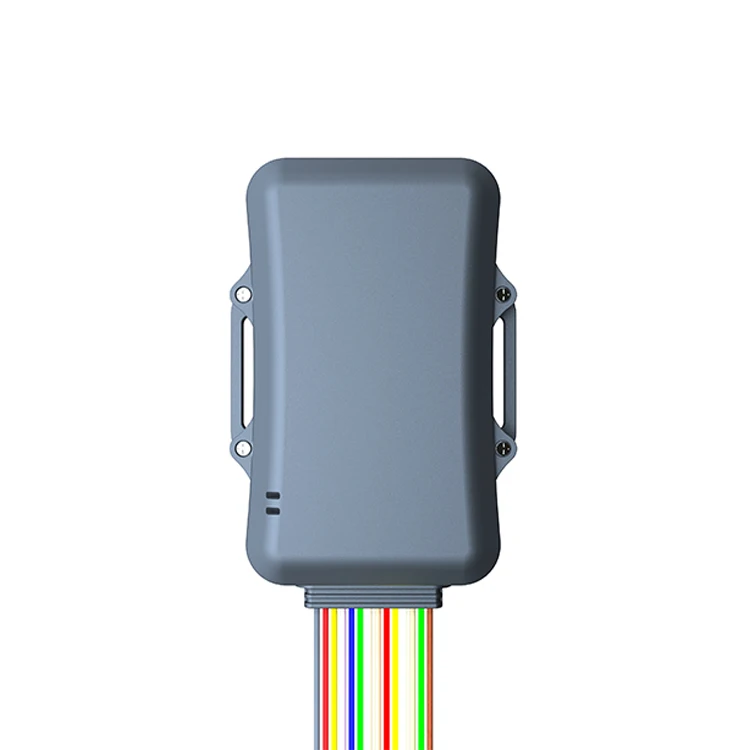

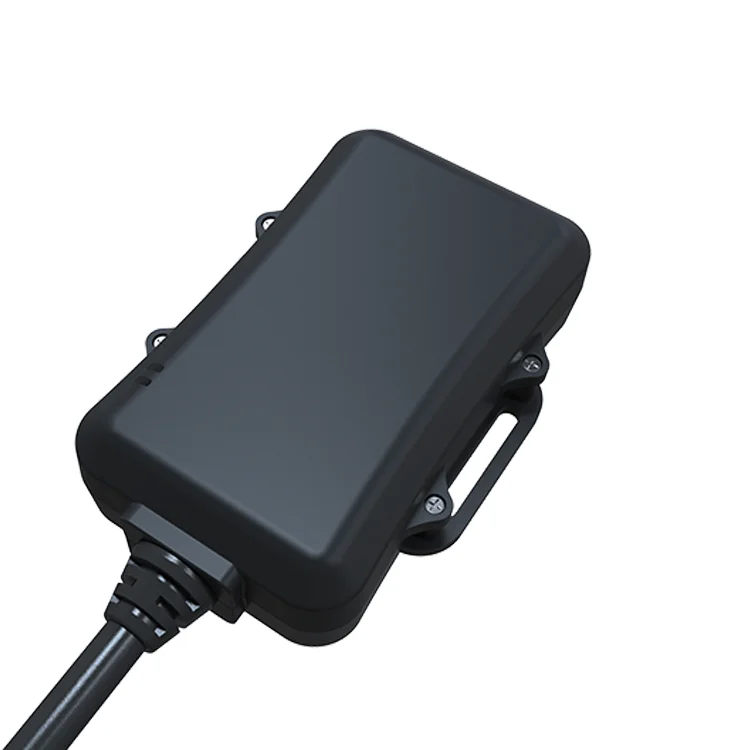

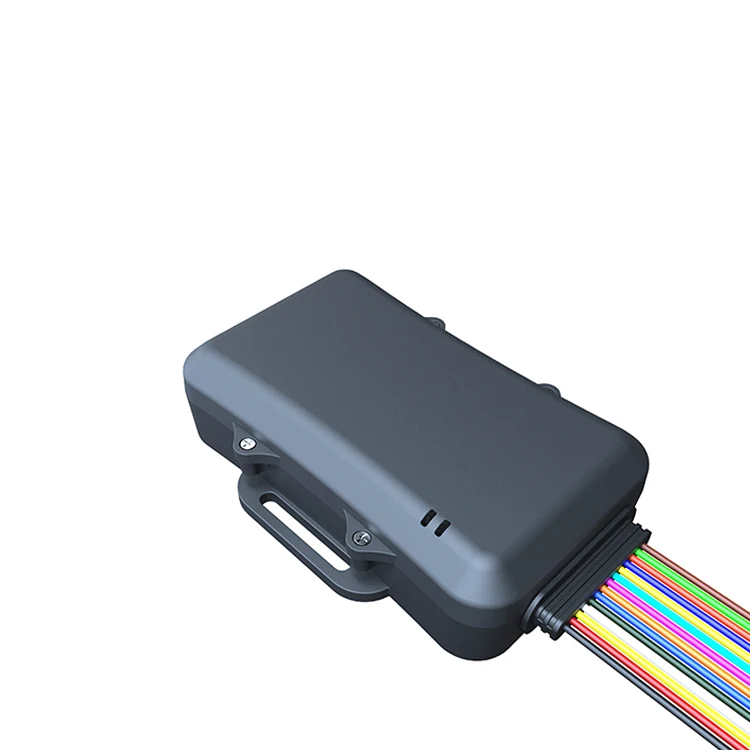

ES811 is a 4G (Cat.M1& NB-IoT) GPS Tracker for vehicle. It reports location information via
TCP/UDP with configurable intervals. ES811 has max 4 inputs which can be used to detect
sensors and max 4 outputs to control fuel or the vehicle starter. It also has max 3 UARTs to
connect an external device to transmit user data to a server. It can work in humid
environment because of its waterproof design.
Main Functions
⚫ Tracking: It sends GPS (Location, speed) and sensors (if any) information to your application server with configurable report interval (moving or stationary).
⚫ Geofence: It supports circle and polygon setting.
⚫ Backup Battery (optional): With a backup battery (300mAh), the device sends a tamper message if the main power supply harness is disconnected.
⚫ Over Speed Limit: Reports over-speed limit.
⚫ 3-Axis Accelerometer: With a built-in 3-axis accelerometer, the device can detect trip start/trip end, and to report harsh braking, harsh acceleration, and impact.
⚫ Storing Message: The device stores up to hundreds of messages while there is no GSM signal.


⚫ Low Voltage Detection (optional): Device switches to deep sleep mode if supply voltage drops
below a threshold.
⚫ Power Saving Mode: Device periodically wakes up and sleeps when vehicle engine is OFF.
⚫ Expand other peripherals: Plenty of IOs, UARTs and AD to accomplish custom’s requirement.
⚫ OTA (Over the Air): The device’s firmware can be upgraded via TCP.
⚫ Waterproof Case: IPX65 waterproof.
Physical and Electrical
Dimensions: *mm *mm *mm
Weight: *g
Input voltage range: 6-42VDC
Power Consumption:
- Active mode: 32 mA @12VDC
- Sleep mode: 10 mA @12VDC
Operation temperature: -20 to +65
Storage temperature (Without battery):
-40 to +85
Built-in Cellular and GPS antenna
Module: BG96 from Quectel
Chipset Type: MDM9206 from Qualcomm
GPS specification
-162dBm Tracking Sensitivity
Accuracy (Open Sky) :< 2.5m (CEP50)
Comprehensive IOs
Max 4 inputs and 4 outputs
Max 2 A/D inputs and 3 UARTs
2 LEDs for GPS and Cellular status
Cellular Communication
Cat.M1/Cat.NB1:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE TDD: B39 (only Cat.M1 support)
Output Power: 23dBm±2.7dBm
GSM:
GSM850/GSM900/DCS1800/PCS1900
Output Power:
GSM850/900: 33dBm±2dBm
DCS1800/PCS1900: 30dBm±2dBm
Protocol: HTTP/TCP/UDP/SMS
