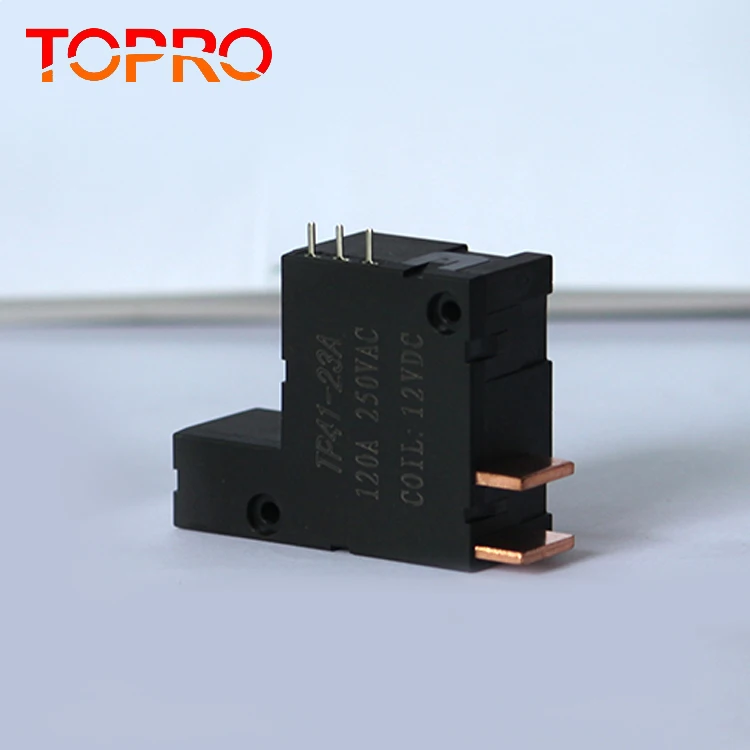

Magnetic latching Relay TP41-23
» Description
- Single phase 100A Switching Capability;
- Multi-layer blades, Low temperature rise;
- Environment protection (Comply with ROSH)

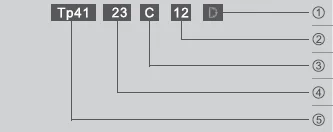

Ordering information
D: Double Coil S: Single Coil
Coil Voltage: 6,9,12,18,24,48 VDC
Contact Material: AgSnO2
Part No.: Thr phase 100A Switching
Type: Magnetic latching relay
Technical Data
» Coil data
Rated coil voltage 6V. 9V. 12V. 24V. 48V.
Rated Power Single Coil 2W
Double Coil 4W
pulse Width 50 ms MAX
pulse time <30ms (at norminal voltage)
» Contact data
Contact Material: AgSnO2
Contact arrangement 1A(B)
Contact Resistance: 1.0mΩ
Max.Switching Voltage: 440VAC
Max. Switching Current: 100A Max.
Switching Power: 25000VA
Life Mechanical Life
Electrical Life
1×105 OPS
1×104 OPS

» Standard windings
Nominal voltage
(VDC)
Operating voltage range MAX.
(VDC)
Coil resistance
(± 10%)/(Ohm)
Single Winding
6
4.8 18
9 7.2 40.5
12 9.6 72
24 19.2 288
48 38.4 1152
Double Winding
6 4.8 9+9
9 7.2 20+20
12 9.6 36+36
24 19.2 144+144
48 38.4 576+576
NOTE: Others norminal voltage required, special ordering allowed.
» Characteristics
Insulation Resistance: 1000MΩ
Dielectric strength
Between Contact and Coil
Between Open Contact
4000V 1Min.
2000V 1Min.
Creepage Distance: 8 mm
Shock Ristance: 147m/s2
Vabration Resistance: 10HZ-55HZ amplitude 1.5mm
Ambient Temperature: -40...+85
Weight: APPROX.85g
Contruction: Dust protection

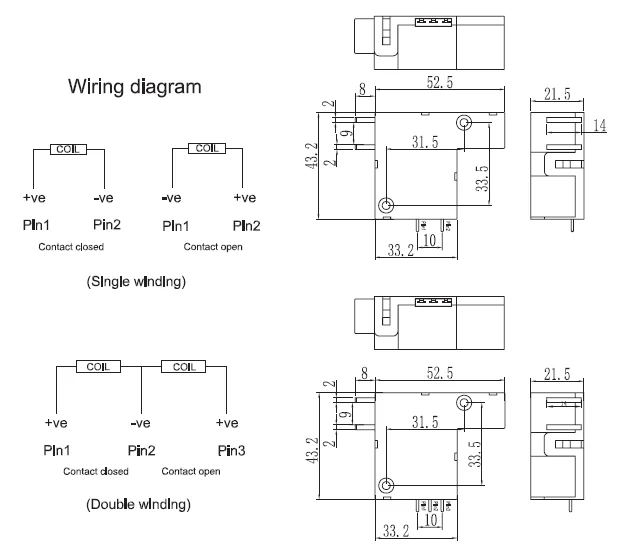

Outline dimensions and circuit diagram

Remark: The tolerance didn"t mark on drawings. When dimension is≤1mm,the tolerance should be
less than 0.2mm ; when dimension is between 1-5mm, the tolerance should be less than 0.3mm;
When dimension is >5mm, the tolerance should be less than 0.5mm.
Note:
1. The default status of the relay contact is closed( Reset), it maybe change to "pen"due to transit or
relay mounting, please check the contact status when using, and reset the relay contact status on
request if necessary;
2.In order to make sure the contact "open"or "losed"status, the excitation voltage should reach to
rated voltage, but the excitation time should not over 1 minute. For double coil relay, do not apply
the voltage to both coils at the same time.
3.The terminals of the relay without twisted copper cable can not be tin soldered, can not be
wrenched too;
4.Please do not use the relay which has been tested for electrical endurance testing.
