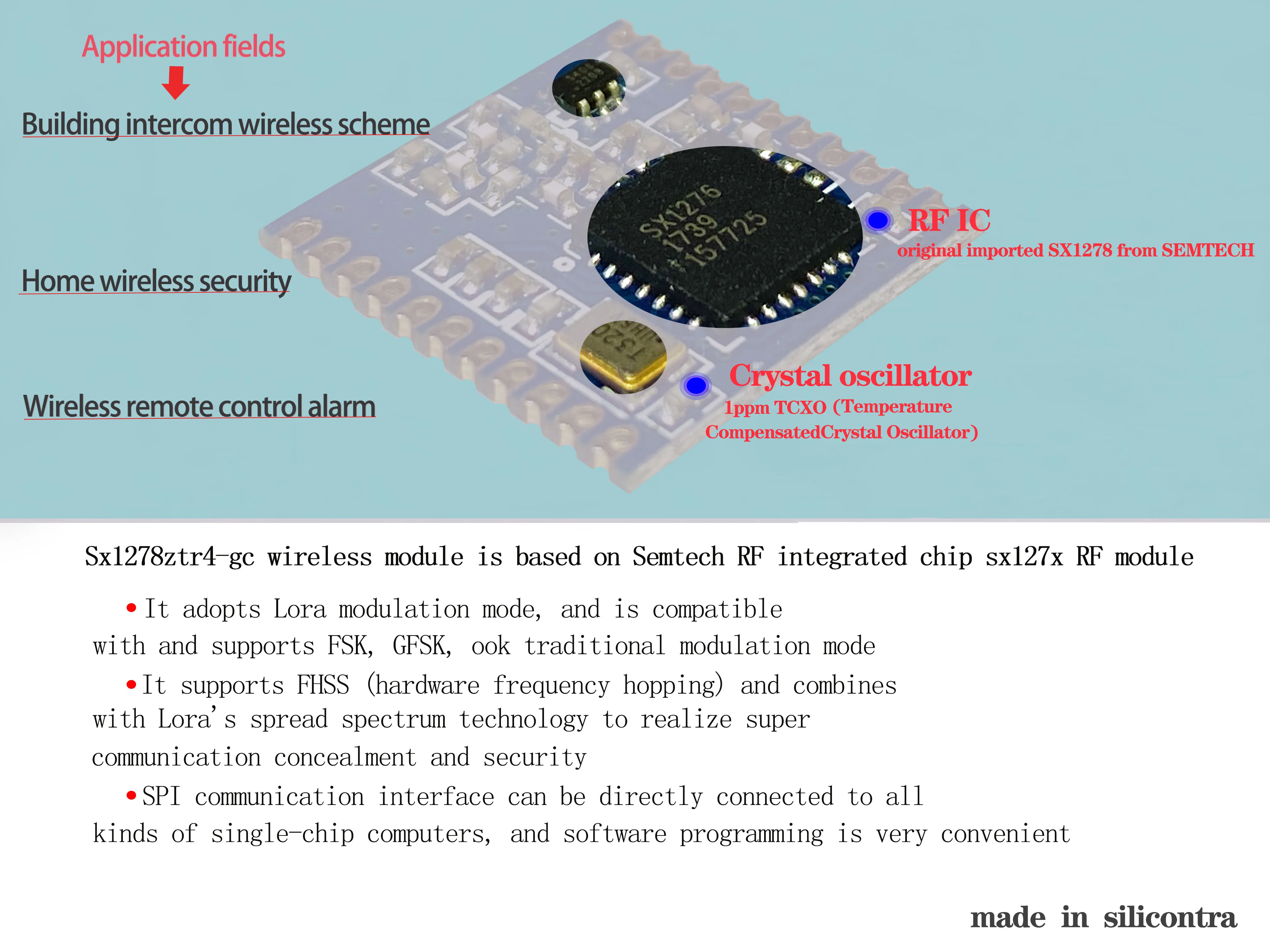

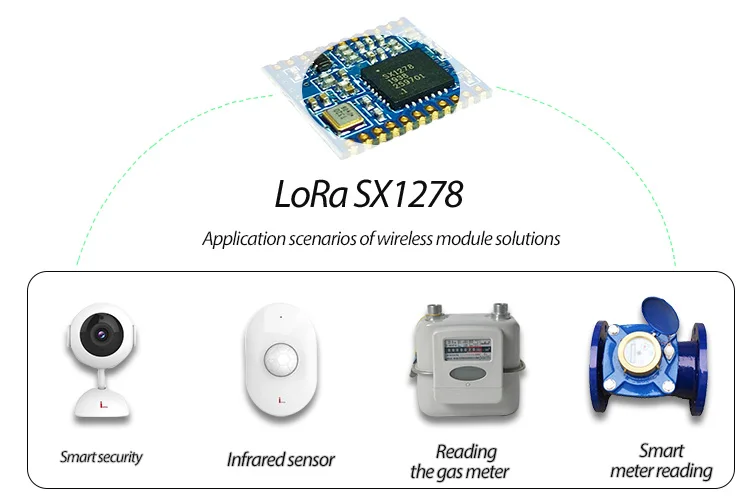

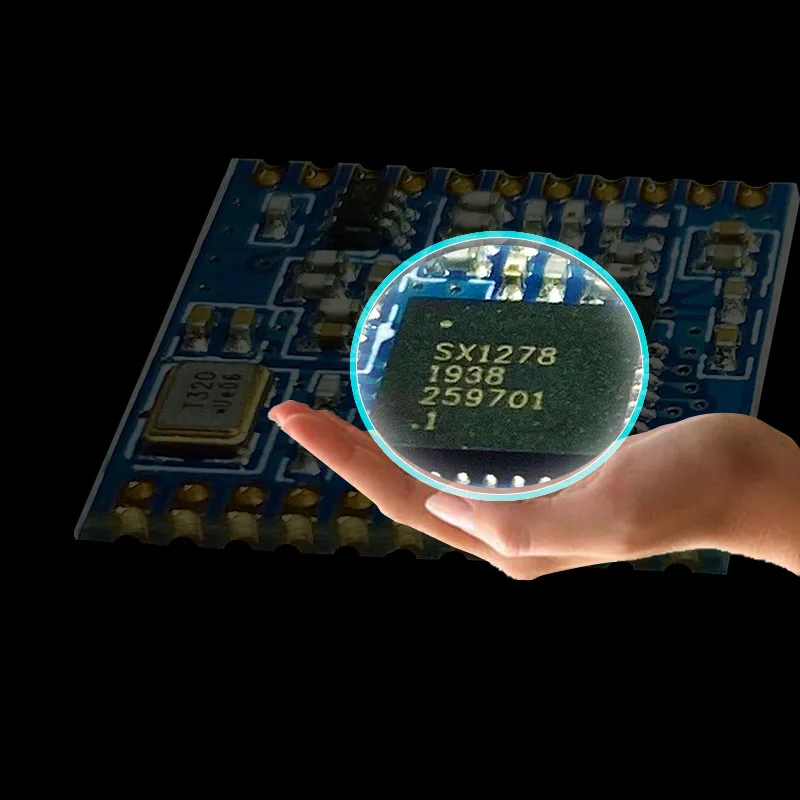

SX1278ZTR4-GC wireless module is a radio frequency module based on SEMTECH RF integrated chip SX127X. It is a high-performance IoT wireless transceiver. Its special LORA debugging method can greatly increase the communication distance and can be widely used in short-distance objects in various occasions The field of networked wireless communication. It has the characteristics of small size, low power consumption, long transmission distance and strong anti-interference ability. It can be equipped with a variety of antenna solutions according to the actual application. The module is not equipped with a micro-control chip and is mainly used for customer secondary development.

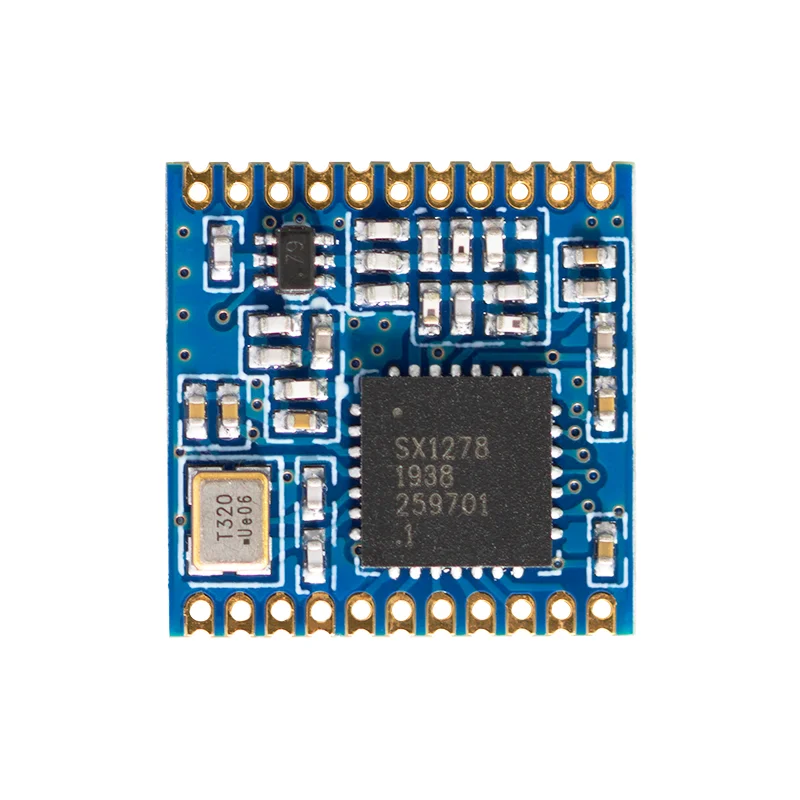

433mhz wireless rf receiver module SX1278TR4-Z lora Wireless Transceiver Module 4km rf module - ANKUX.COM

Specification
NO.Parameter NameParameter values details1Model NumberSX1278TR42Modulation modeLoRa3Operating VoltageDC2.4V-3.7V4working frequency410-525MHz5Output Power19±1dBm(max)6Emission current<100mA7Receiving sensitivity-136dBm8Receive current≤13mA9Sleep current<2uA10antennaPCB antenna11working temperature-40°C-85°C12Size15*15mm13Distance5km14Applicationmodules IOT solutions15InterfaceSPI

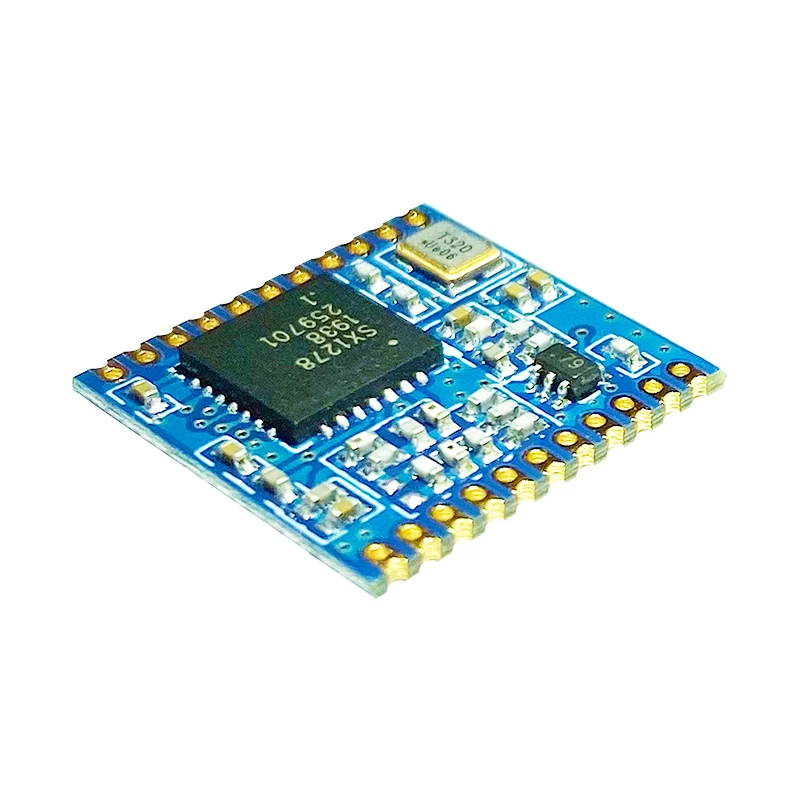

433mhz wireless rf receiver module SX1278TR4-Z lora Wireless Transceiver Module 4km rf module - ANKUX.COM

Pin diagram
Serial numberInterface namefunction1,2,3,4,11,GNDPower GND12, 19,20,225DIO0Programmable decision6DIO1Programmable decision77 DIO2Programmable decision8DIO3Programmable decision9NCModule internal use. This pin cannot be connected to any electrical network in the circuit design10DIO5Programmable decision13VCCModule power pin. The power supplyshall not exceed 3.7V, otherwise the module will be burnt14CLKSPI bus clock pin, normally high level15MISOSPI bus slave output pin. When MCUreads module data, module data is output by this pin16MOSIBus slave input pin. When MCU writes data to module, number Write from this pin17SELSPI chip selection pin, effective at low level18RSTReset pin, valid for low level21ANTAntenna port
