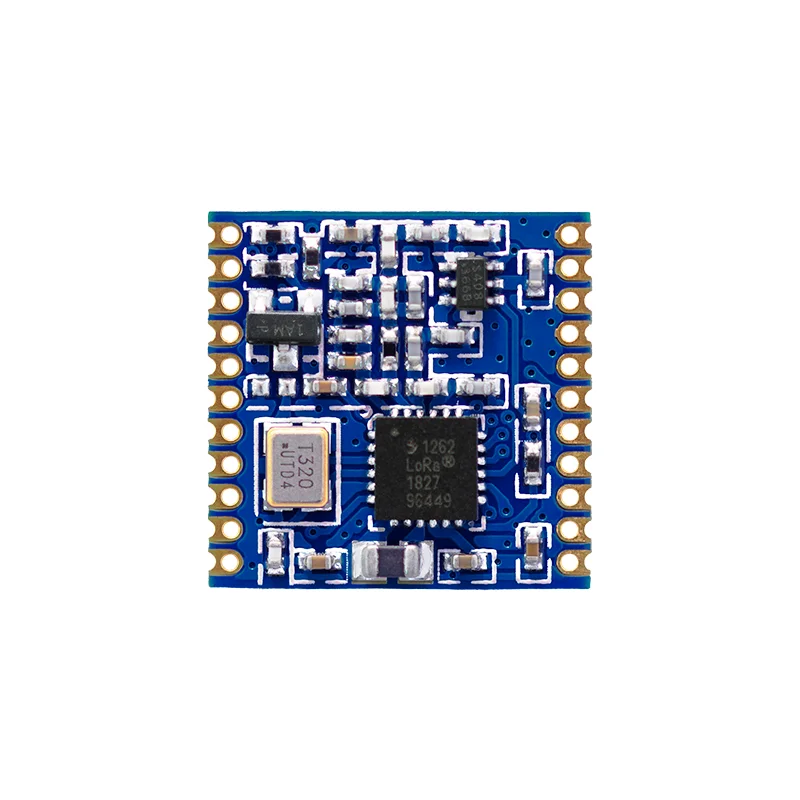

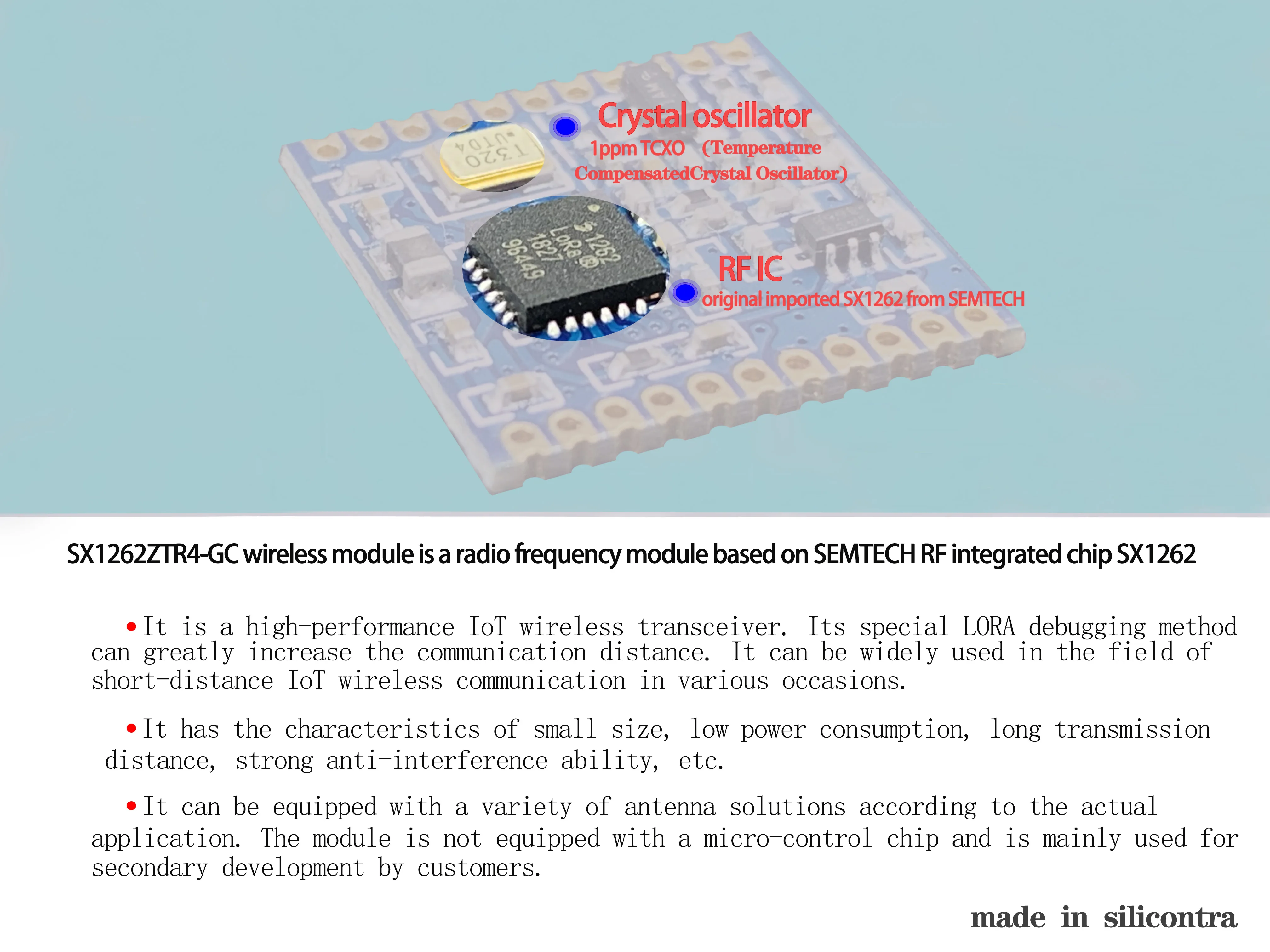

SX1262ZTR4-GC wireless module is a radio frequency module based on SEMTECH RF integrated chip SX1262. It is a high-performance IoT wireless transceiver. Its special LORA debugging method can greatly increase the communication distance and can be widely used in short-distance objects in various occasions. The field of networked wireless communication. It has the characteristics of small size, low power consumption, long transmission distance and strong anti-interference ability. It can be equipped with a variety of antenna solutions according to the actual application. The module is not equipped with a micro-control chip and is mainly used for secondary development by customers.

Specification
NO.Parameter NameParameter values details1Model NumberSX1262TR42Ultra low receiving current5mA3Operating VoltageDC2.0 ~ 3.7V4working frequency410 ~ 525MHz5Output Power22dBm6Emission current≤120mA7Receiving sensitivity-137dBm8Receive current≤5mA9Sleep current≤2uA10antennaPCB antenna11working temperature-20 ~75 鈩?/TD>12Size15*15mm13Distance5km14Ultra low receiving current5mA15InterfaceSPI



Pin diagram
Serial numberInterface namefunction1,2,3,4,11,GNDGround wire12, 19,20,225DIO1Programmable decision6NC/7NC/8DIO3Programmable decision9NC/10BUSYModule status output13VCCPower Supply14SCKSPI bus clock pin15MISOSPI bus slave output pin16MOSISPI bus slave input pin17SELSPI chip selection pin, effective at low level18RSTReset pin, valid for low level21ANTAntenna port

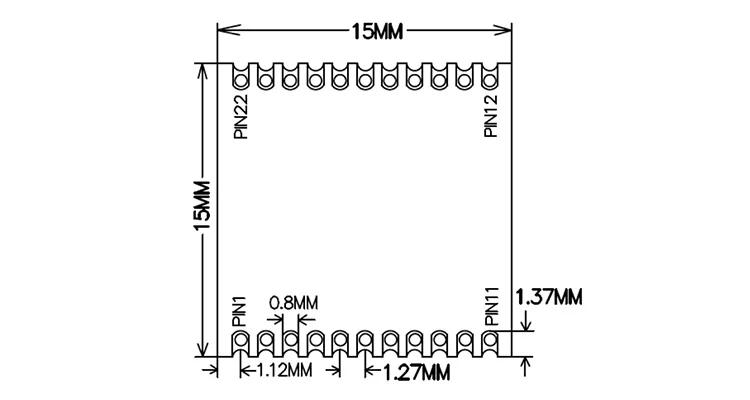

Dimension
