Specification

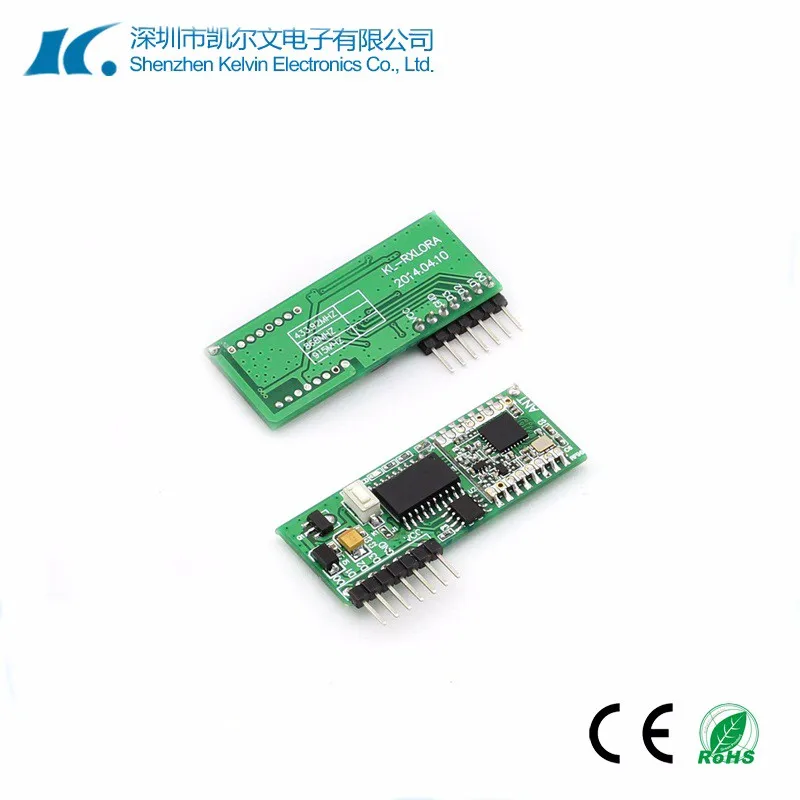

433/915MHz 5000m RoLa RF transmitter and receiver long range module KL-BT01 V1.0

Parameters
Working Voltage
DC3/`5V
Working Current
14mA
Standby Current
0.5μA
Frequency
315/433.92MHz Customized
Bandwidth
330KHz
Sensitivity
-115dBm
Encoding Type
Learning code EV1527
Modulation
FSK+SPSP
Dimension
50*20*7mm
Temperature
-20 ~ +50
Description

433/915MHz 5000m RoLa RF transmitter and receiver long range module KL-BT01 V1.0
KL-BT01 V1.0is a general 3V-5V radio receiver that operate at 315/433.92MHz with typical sensitivity of -115dBm.As a superheterodyne receiver for OOK and ASK modulation up to 10kbps. Any one-off-four filter bandwidths may be selected externally by the user in binary steps, from 1.25kHz to 10kHz. The user need only configure the device with a set of easily determined values, based upon data rate, code modulation format, and desired duty-cycle operation
FAQ
What you want to know?Q1:What's output signal ?
A1: Date transparent transmission.
Q2:Can you provide related certification like CE/FCC ?
A2: Yes,we designed and produced it under their directive.
Q3:What's working mode?
A3: Suport momentary ,toggle and latch is optional.
Q4:Will it be interfered by around same frequency signal?
A4: Our receiver has certain anti-interference ability.
Q5:Why call it for fixed code receiver?
A5: It is a data transparent receiver.
Q6:Can we change supply voltage for 9Vdc ?
A6: Of course ,we support this service.
Q7:Can we print our model number on PCB ?
A7: Yes. please confirm this with us before placing..
Q8:Can we customize size of PCB of Pin ?
A8: Yes ,we support
Q9:Why it can't work with our remote ? the frequency is same.
A9: Besides frequency ,oscillation resistance and address code should be matched .
Q10:I didn't know what's oscillation rsistance and address code .
A10: Please contact us directly.
