40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver

IoT / LoRa

40W DALI programmable LED driver dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO FEATURES
- NFC Programmable output current voltage
- Constant power design, CC/CV Hybrid Output
- DALI /Smart Timer /Line-dim/0-10V
- LED Module Temperature Detection
- Constant Lumen Mode
- Dim-to-off option
- Surge(Diff:6kV, Common:10kV)
- 1%-100% dimming
ELECTRICAL SPECIFICATIONS
Part Number
Output Working Voltage
Programmable Constant Voltage Region
Programmable Constant Current Region
Maximum Output Power
Input Current
No Load Power
Line Regulation
Load Regulation
Ripple
&
Noise
40LAX27-54CV
17-54V
27-54V
0.148-1.48A
40W
0.24(230VAC)
0.47(115VAC)
0.5W
±3%
±3%
2.0%
PROTECTION
OCP/OVP
Programmable
SHORT CURRENT
Hiccup mode, recovers automatically after fault condition is removed
OVER TEMP.
Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
WORKING TEMP.
-40 ~ +70
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT
±3%
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
SATETY STANDARDS
WITHSTAND VOLTAGE
I/P – O/P: 3.75kVAC
ISOLTATION RESISTANCE
I/P – O/P: 100M Ohms / 500VDC /25 / 70% RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 Class C (>60% load); EN61000-3-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

NFC PROGRAMMER USE GUIDE:-The NFC controller can modulate the output current and output voltage.-Non-contact process, therefore much safer compared to traditional ones.-Power devices can be programmed without power on.-Timer dimming.-Dim to off option. 40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

STEP1:Setting NFC Controller Set desired output parameter to your controller.Select{4.Transmit},and press OK bottom once to complete the setting.Setting accuracy is 1mA,or 1V. 40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

STEP2:One key programming Put controller on the "signal receiver"window,and press"OK"bottom,the controller displays PASS,and programming is successfully completed. 40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

Packaging & Shipping Weight:
TBD
Quantity:
TBD

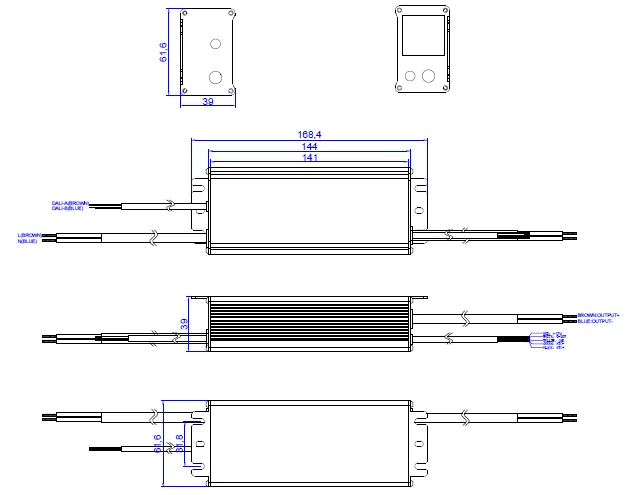

Size:
168.4mm*61.6mm*39mm
Our ServicesStrong R&D capability
R&D department that understands the total Lighting Solution
– We understand the Driver and the Fixture
– Quick, robust and cost effective power designs
– Compliance with Safety, Emission and Green standards
- UL, CE, PSE, FCC, TUV, CCC, KC
- Energy Star and ErP Directive
– Strict Adherence to our Engineering Quality Process
– Professional team focus on LED driver more than 8 years.
– Main attention is in the field of smart lighting control include indoor and outdoor lighting control
Custom Made Easy
– Short Product Develop lead time
– Open frame or in-case designs
– Cable/connector integration capability
– Drivers that fit your needs!
Full Range test equipment

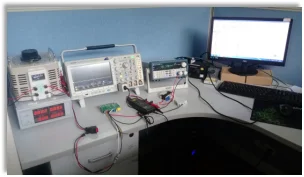

1.ATS Test Equipment
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

2.Temperature Rise Test Equipemnt
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

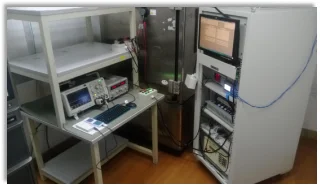

3.Component stress test Equipment
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

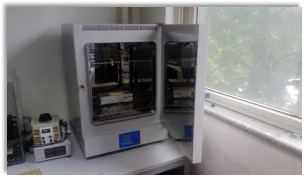

4.drying oven
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

5.EMC test Equipment
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

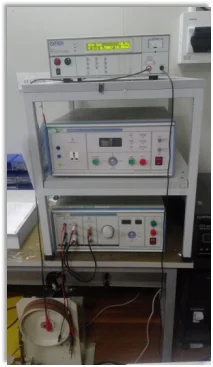

6.Surge Immunity Test Equipment
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

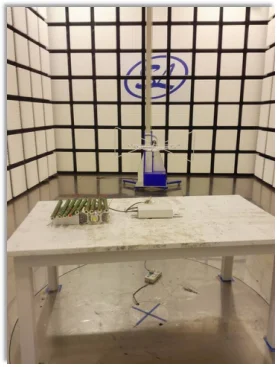

7.Electromagnetic radiation detection
40W dim to off 12v aux 0-10V dimming PWM dimming Timing dimming external NTC CLO DALI programmable LoRa LED driver - ANKUX.COM

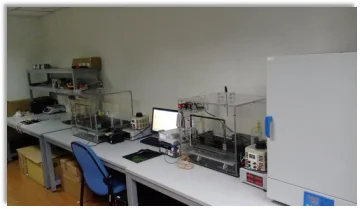

8.Test Laboratory
