1. MAIN APPLICATION
30W 40W 50W 60W 80W 100W 120W IP66 street lamp led with zigbee dimming controller is mainly application of road and area lighting to highways, urban main roads & branch roads, country roads, factory outdoor roads, residence outdoor roads and etc.
2. DESIGN STANDARD
AS NZS 1158.0-2005 Lighting for roads and public spaces - IntroductionAS NZS 1158.3.1-2005 Lighting for roads and public spaces - Pedestrian area (Category P) lighting - Performance and design requirementsAS NZS 1158.6-2010 Lighting for roads and public spaces - part 6: luminairesAS NZS1158.1.2-2010 Lighting for roads and public spaces - Vehicular traffic (Category V) lighting - Guide to design, installation, operation and maintenanceEN 60598-2-3 Luminaires; part 2: particular requirements; section 3: luminaires for road and street ligthingEN 62778 Application of IEC 62471 for the assessment of blue light hazard to light sources and luminairesEN 62471 Photobiological safety of lamps and lamp systemsEN 62493 Assessment of lighting equipment related to human exposure to electromagnetic fieldEN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipmentEN 61547 Equipment for general lighting purposes - EMC immunity requirementsEN 61000-3-2 Electromagnetic compatibility (EMC). limits. limits for harmonic current emissions (equipment input current ≤ 16 A per phase)EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connectionEN 60598.1 Luminaires - Part 1: General requirements and tests

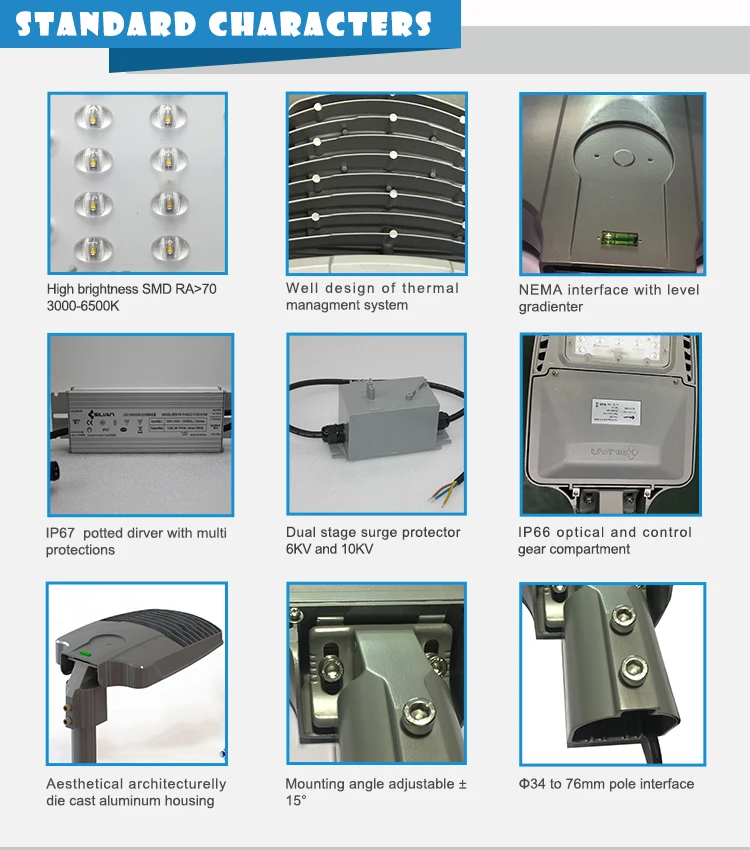

3. STANDARD CHARACTERS

High brightness LEDs, CRI RA>70, 90 to 130lm/w & 2700-10000K selectableIndustrial grade design, zero pollution, zero glare, even light distribution>0.95Power factor >0.95, total harmonic distortion <10%AC90 to 305V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteferenceDual stage built-in surge protector 6KV and 10KVAesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment systemIP66 ingress protection to both optical and control gear compartmentTool free mounting with level gradienter, NEMA interface reservedLong maintenace free life, 50,000 hours for whole luminare
4. STANDARD SPECIFICATIONS

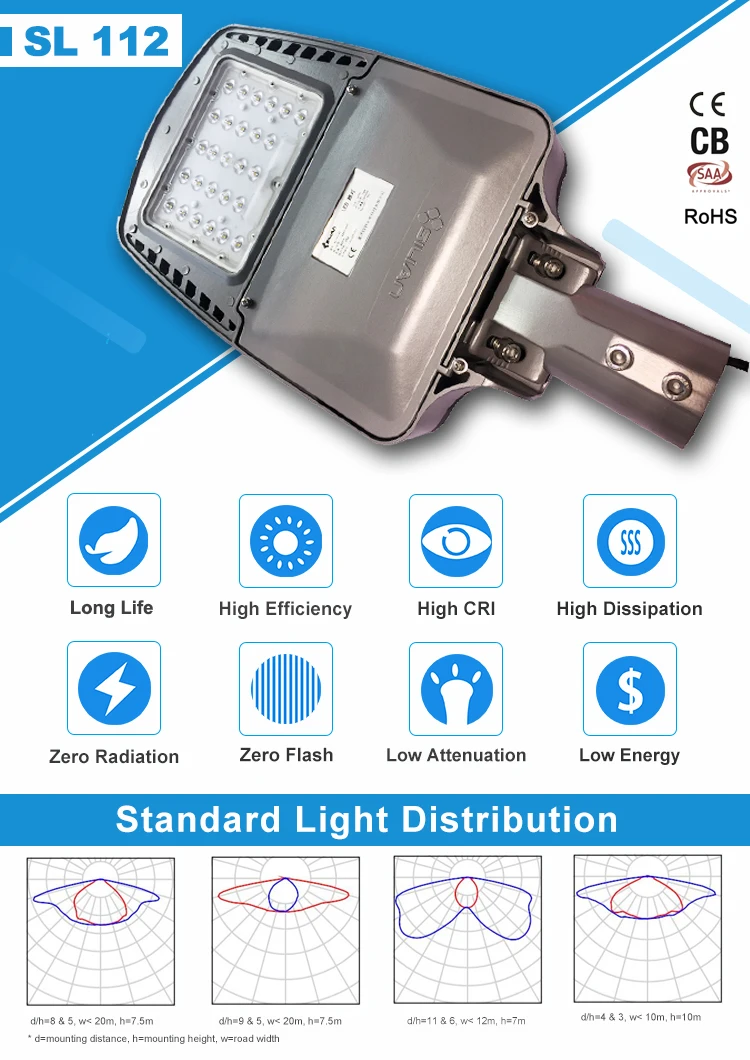

SL112 General Specification
Order Code SL112-30 SL112-40 SL112-50 SL112-60 SL112-80 SL112-100 SL112-120
Operating Voltage(V) 90 to 305V AC
Power Factor >0.95
Driver Efficiency >88% >88% >90% >90% >90% >90% >90%
Luminary Power(W) 30 40 50 60 80 100 120
Luminary Efficiency (lm/W) 110 105 110 105 110 105 100
Rated Lumen(lm) 3300 4200 5500 6300 8800 10500 12000
CCT(K) 3000/4000/5000/6000/6500
CRI Ra>70
Operating Temperature() -40 to 55
Storage Temperature() -50 to 60
Service Life (H) >50000
Ingress Protection IP66
Housing corrosion free high pressure die cast Aluminium with silver colour corrosion resistant coating+PC
Weight(kg) 6
Angle Adjustment(°) ±15°
Pole Entry lateral or vertical
Pole Interface(mm) Φ34 to Φ76
