Products Description

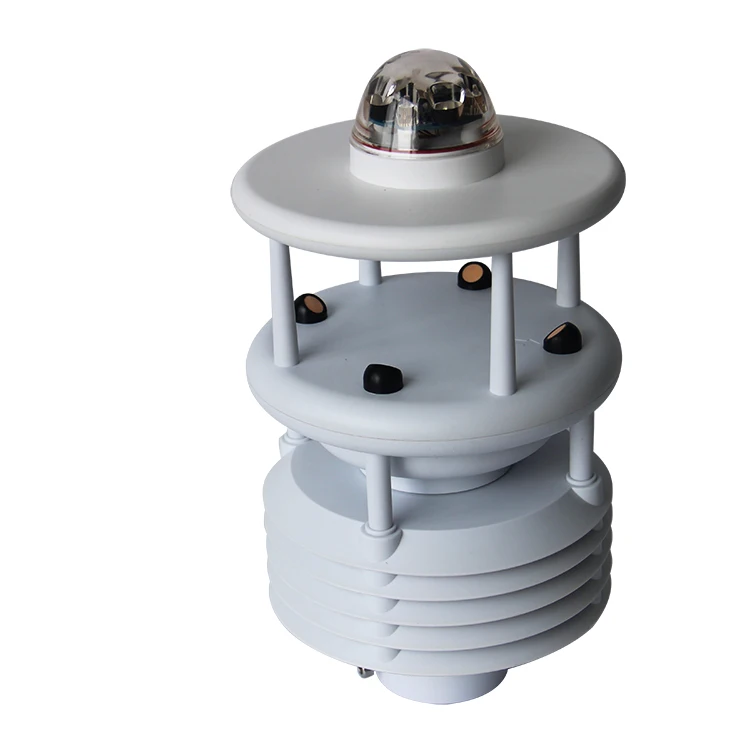

MICRO WEATHER STATION



On the basis of advanced sensor technology, the BGT-W800 series micro meteorological station integrates the main meteorological parameter, including Wind direction, Wind speed, Air temperature, Relative humidity, Barometric pressure, Precipitation, Global radiation,Illuminance, PM2.5, PM10, CO, SO2, NO2, O3 and Noise.
Features
* Adapt to adapt complex weather conditions * High accuracy, fast response
* Good appearance
* Highly integrated, easy installation
* Solid state,Free maintenance
* ASA engineering plastic cover

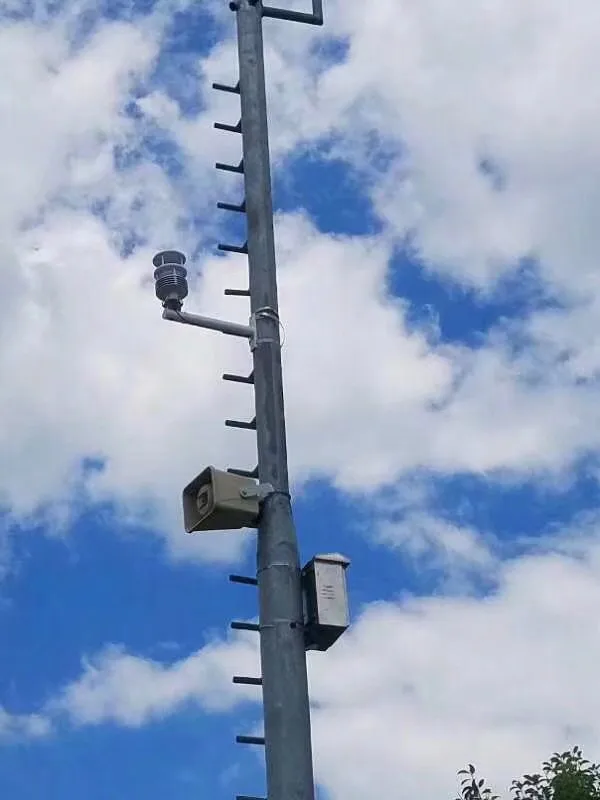

Application
* Electric power safety monitoring
* Meteorological monitoring system
*Marine vessels & small airports & helipads
*Environment monitoring
*Bridge & Tunnel
*Agriculture
* Solar and wind generation

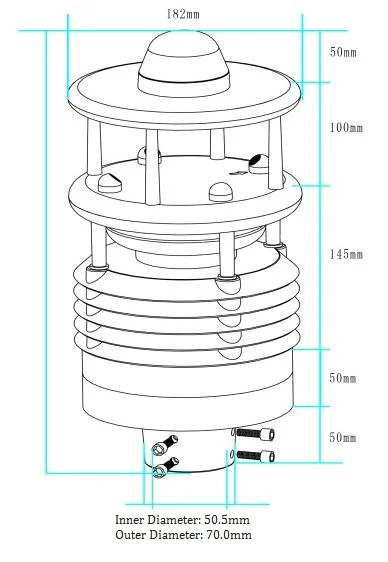

① Precipitation Sensor② North Indicator
③ Ultrasonic Sensor (Speed & Direction)
④ Control Circuit Location
⑤ Temp.,Humidity, Pressure Sensor in Radiation Shield
⑥ Fixed Flange in Bottom (Optional)

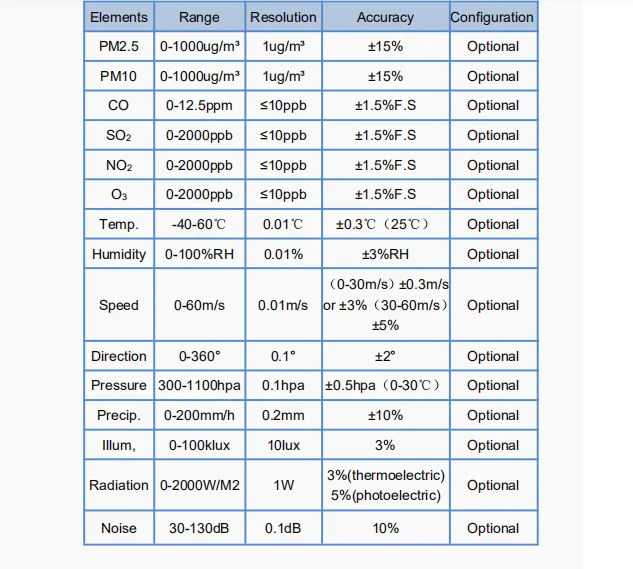

Technical Paramenters

Other Specifications:
Power Supply
DC12V-24V, suggest: DC12V
Stability
<1% ( in life time)
Response Time
< 10 s
Warming Time
30s SO2NO2COO3 48h
Current
DC12V≤60mA (BGT-W815) ; DC12V≤180mA(BGT-W820)
Power Consumption
DC12V≤0.72W(BGT-W815) ; DC12V≤2.16W BGT-W820)
Life time
≥3 years, except SO2NO2COO3PM2.5PM10( Normal condition 1 year, high pollution environment is not guaranteed)
Output
RS485, MODBUS Protocol
Cover Material
ASA Engineer Plastic
Working Environment
Temp. -30～70, Humidity: 0-100%
Storage Temperature
-40～80
Cable Length
Stand 3M, Max 1000M (RS485)
Ingress Protection
IP65

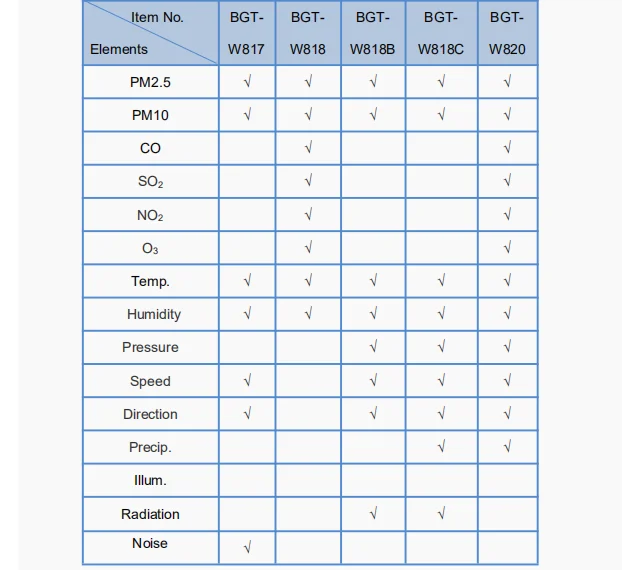

Quick Selection


BGT-W817A Weather Station

BGT-W817B Online Dust Monitoring Station

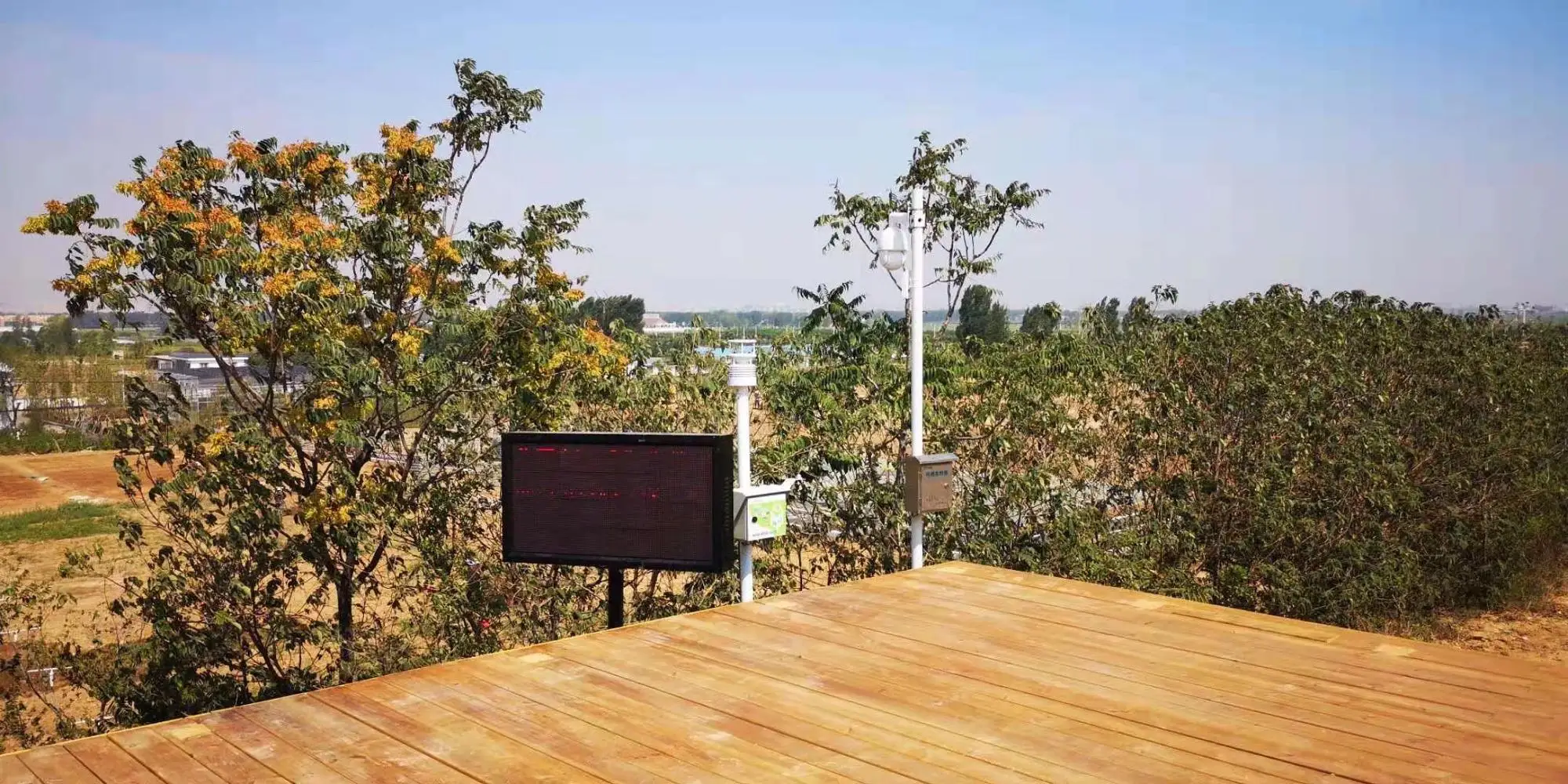

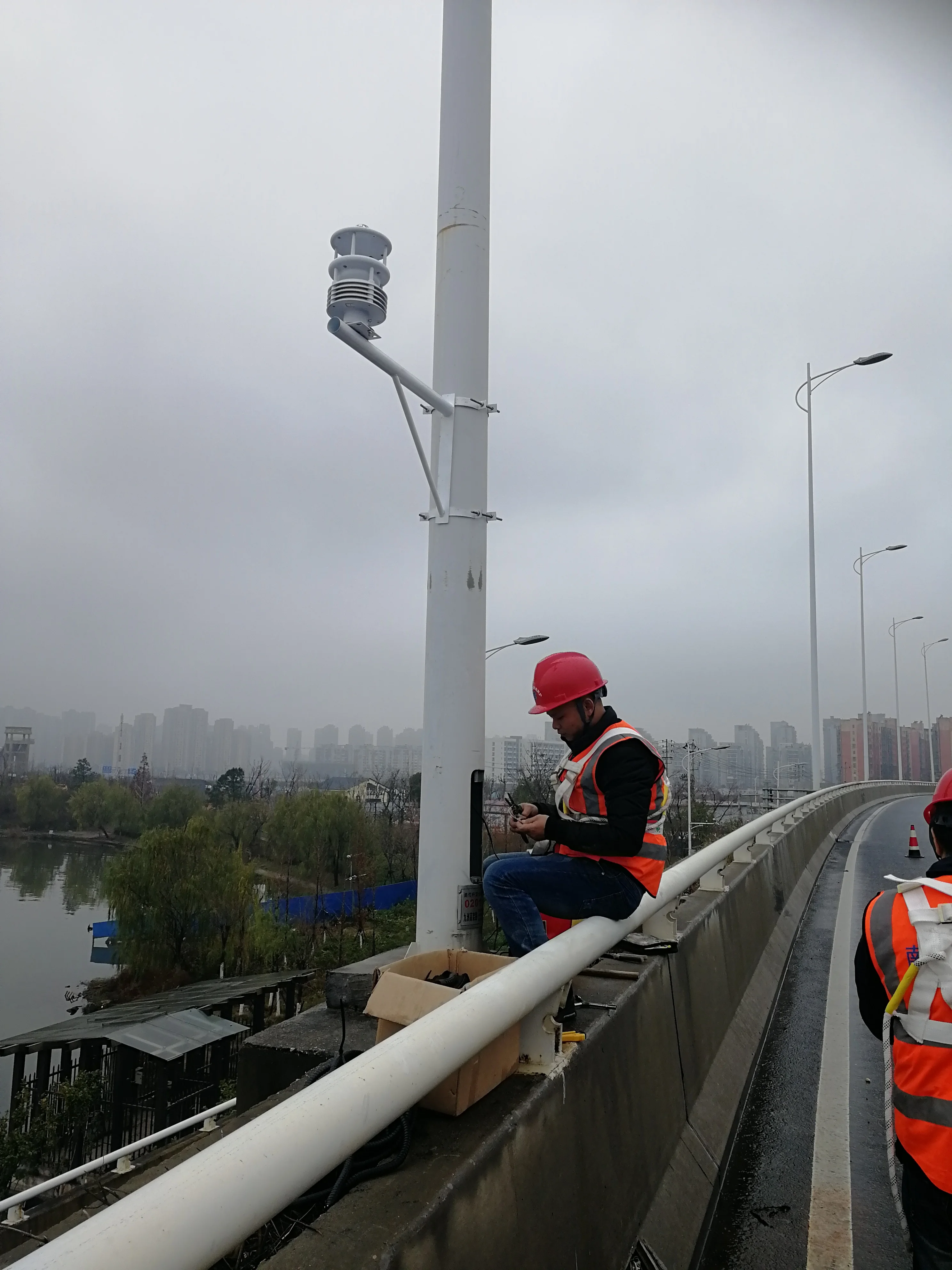

Application

Agricuture

Meteorological monitoring system

Electric power safety monitoring

Environment monitoring

Bridge & Tunnel

Solar and wind generation

Marine vessels & small airports & helipads
