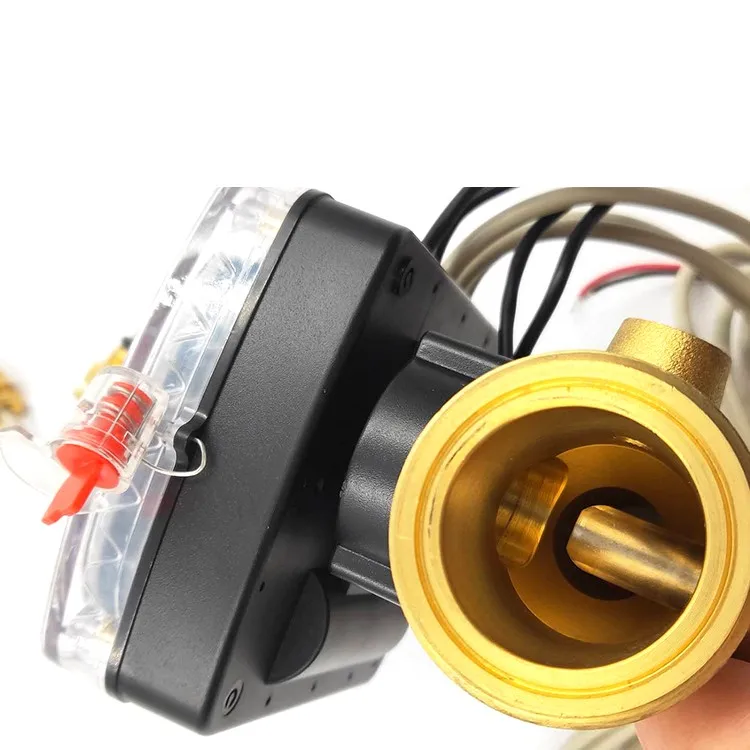

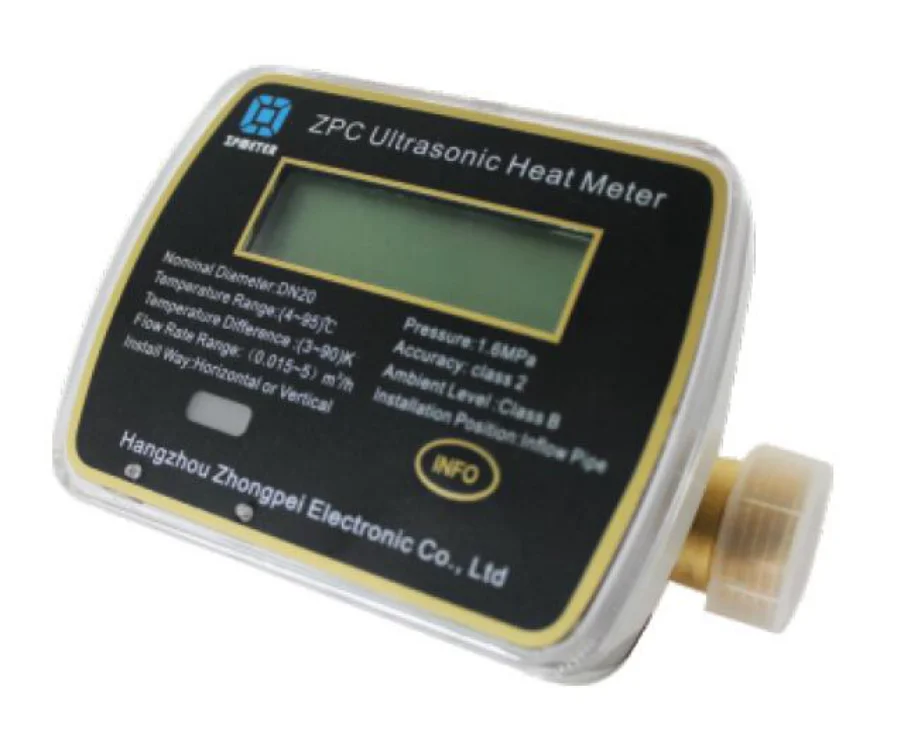

213A Ultrasonic Heat Meter--DN15 DN20 DN25 DN32 DN50
◆ The advantages of ultrasonic heat meter.
◇ Adopt imported precision electronics components, has high measurement accuracy, low power consumption and good stability.
◇ This model has no moving parts, Minimal loss of pressure to improve heating quality.
Master CPU:MSP430F4481 (from TI)
Calculated Chip: GP22 (from ACAM)
Memory Chip:24LC08
Communication: M-Bus, Pulse, RS485, LORA, LoRawan, GPRS/GSM, NB-IoT

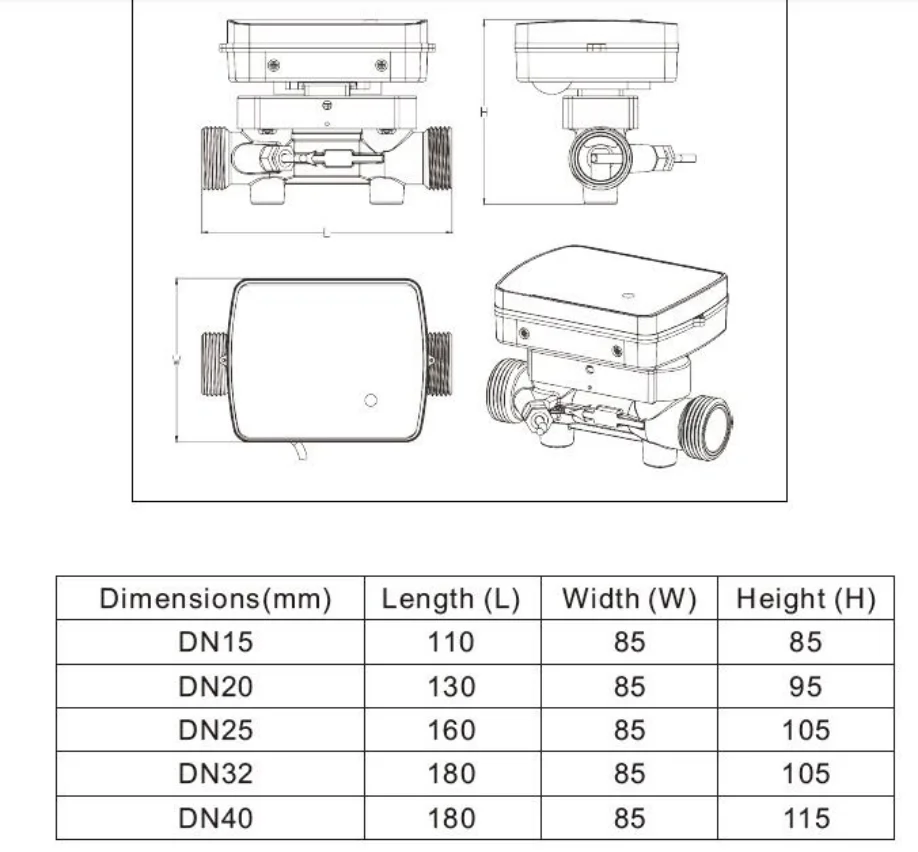

Diameter Min Flow Transitional flow Max Flow Length
qmin(m³/h) Q2(m³/h) qmax(m³/h) mm
DN15 0.015 0.024 1.5 110
DN20 0.020 0.032 2.0 130
DN25 0.035 0.056 3.5 160
DN32 0.060 0.096 6 180
DN40 0.1 0.16 10 180
Measurement Accuracy CJ128-2007Class 2
Connection Threaded connection
Pressure Loss ≤0.02MPa
Maximum Working Pressure(MWP) 1.6MPa
Flow Measuring Range 1:100
Temperature Sensor 1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed)
Data Storage Continuous store of 18 months record
Power-off Protection After power-off, meter could save all the record of before flow rate and the corresponding time, after power back, it recovery measure function automatically, and ensure the time continuation
Remote Transmission M-Bus
Power Supply High Power Lithium battery
Protection Class IP67 (IP68 need to modified)
Environmental Class Class B
Temperature Range (5~95)
Temperature Difference (3~90)K

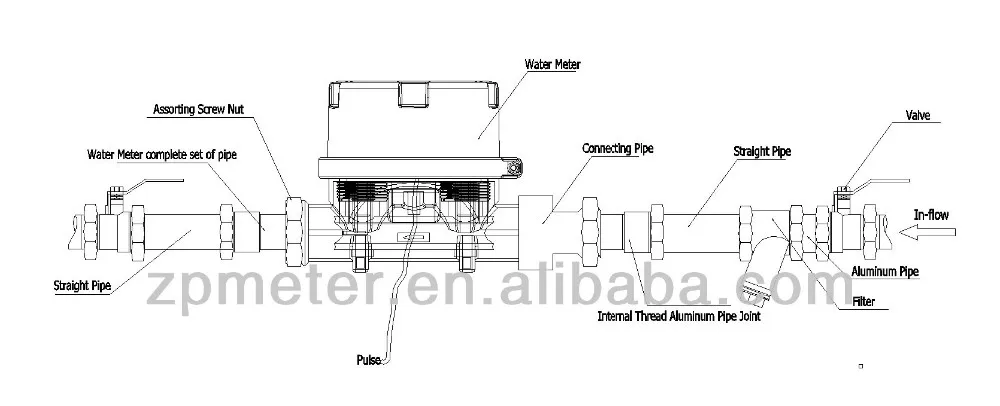

Installation Way Inflow or Return flow(Default is Inflow, for return flow need to indicate when ordering)
Installation Position Horizontal / Vertical
Permanence Service cycle>10years
Display 8-bit LCD display
Anti-magnetic Disturbance When the intensity of magnetic field interference is not more than 100 ka/m, should not affect water meter measurement and remote transmission characteristics

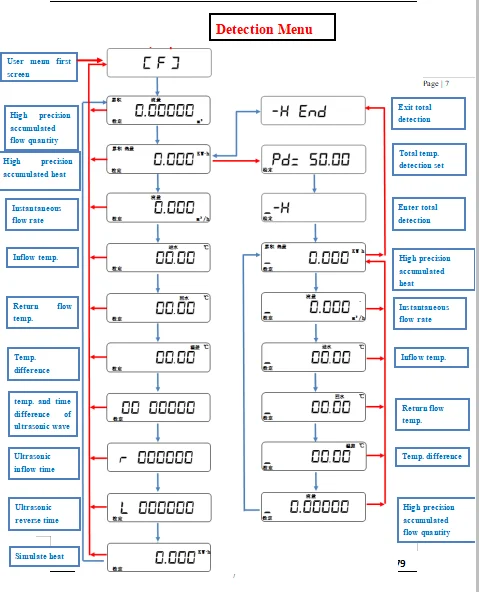

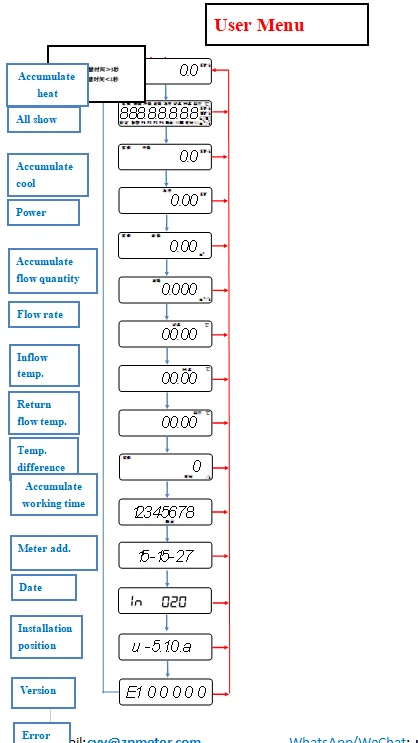

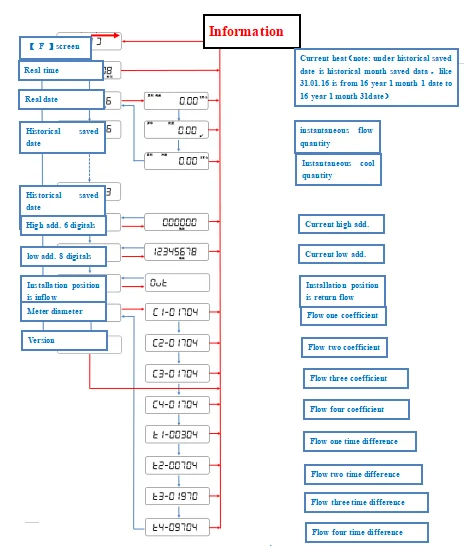

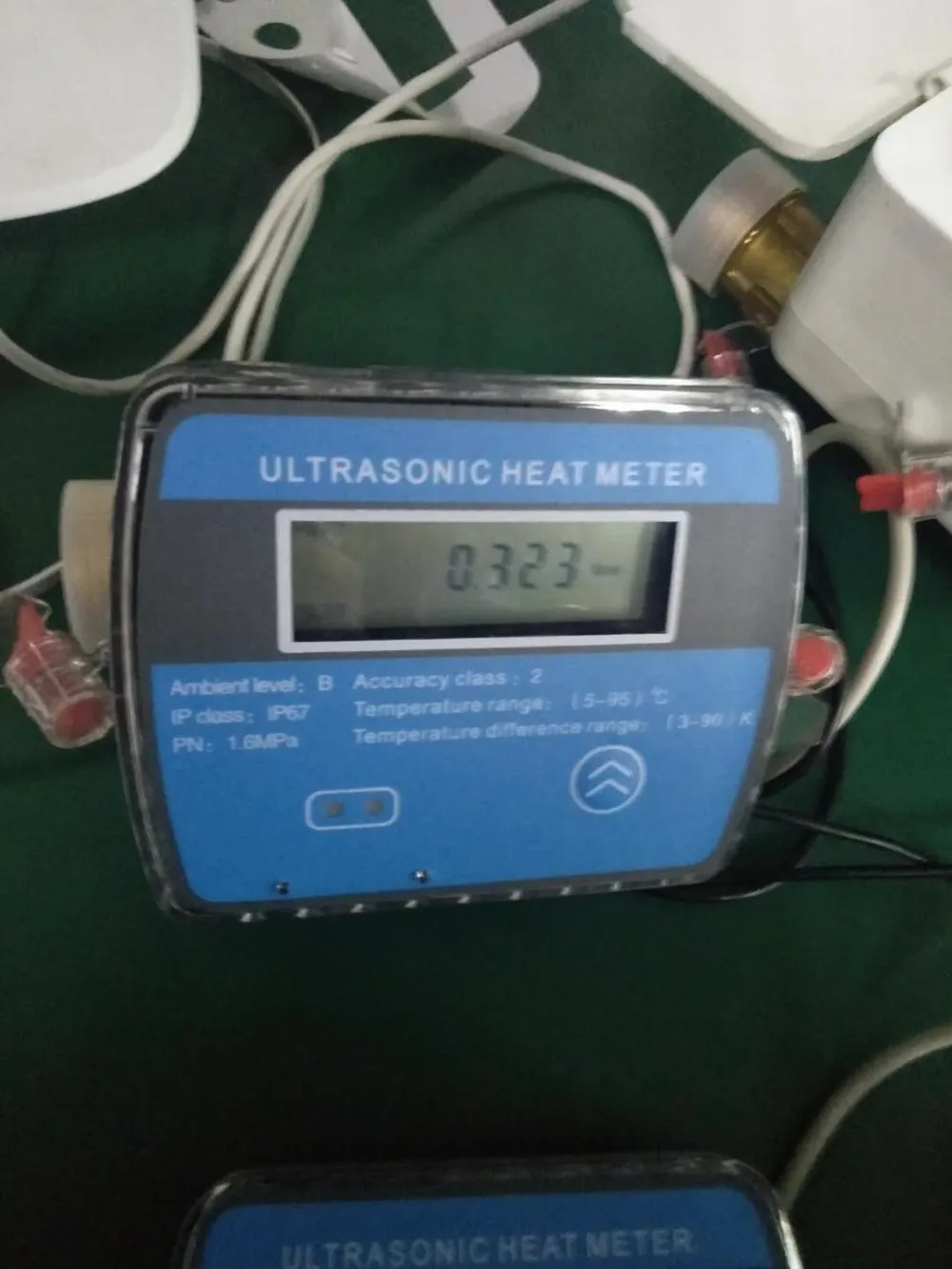

Menu display:

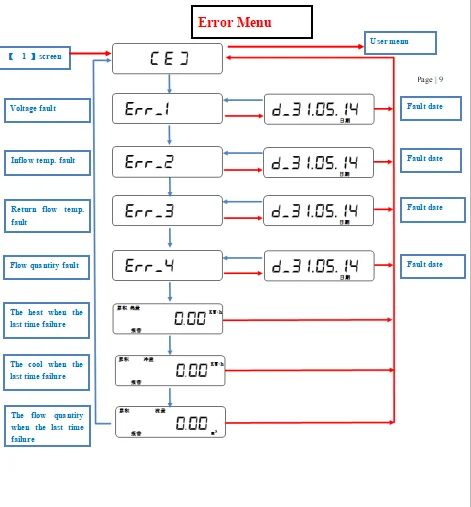

According to actual use environment, the meter intelligent measures quantity of heat or cool. Heat meter main menu display, accumulated heat(kWh),accumulated cool(kWh),accumulated flow quantity(m3),flow rate(m3/h),inflow temp.(),return flow temp.(),Temp. difference of inflow and return(),Meter no.,accumulated working time;and display current date,system reading meter date,storage of 18 months operation data ( heat and cool quantity, and flow quantity);low battery and automatic diagnosis error function;with IR and MBUS remote interface,can realize remote reading meter function,convenient save operation cost management.
