2019 Hot Sale High Quality As62-dtu30 8km 433mhz Rf Wireless M-bus 868mhz 433 500mw Lora Module
Products Description

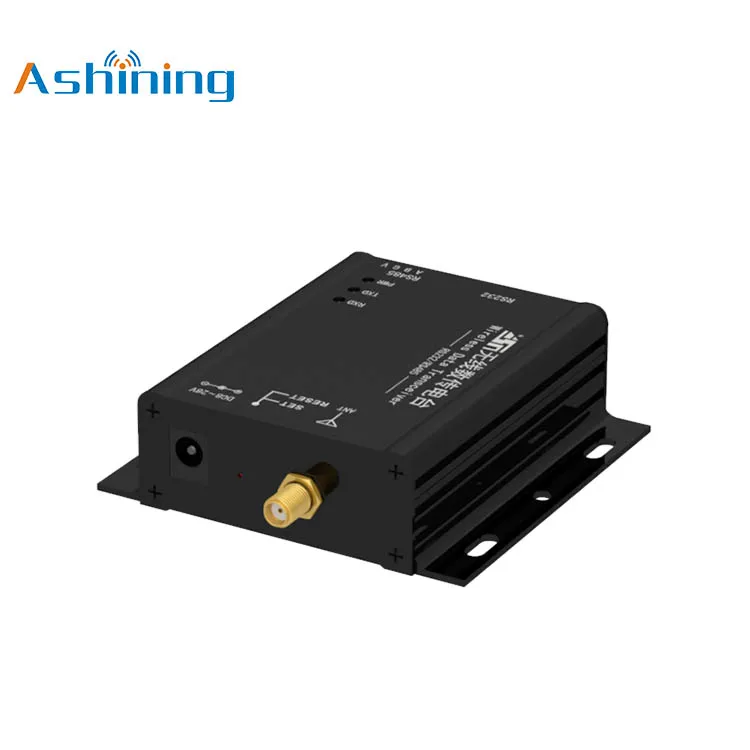

AS62-DTU30 is a 433MHz,1W industrial-grade wireless data transmission unit with high stability. The DTU uses SX1278 main chip, LORA spread spectrum transmission, RS232/485 level output. The DTU adopts the efficient cyclic interleaving error correction coding algorithm, which has high coding efficiency and good error correction ability. In the case of sudden interference, the DTU can correct the interrupted data packets, and the maximum continuous error correction is 64bit, which greatly improves the DTU"s Anti-jamming ability and transmission distance, and in the absence of error correction algorithm, this error packet can only be discarded. Using LORA spread spectrum technology makes the module have a longer communication distance.
KEY FEATURE

Specifications
No.Parameter NameParameter values detail
1 Module Size 23 * 43mm (Excluding antenna or SMA junction)
2 Origin of Components All components are imported from Japan, USA and Germany
3 Production Craft Lead-free, electrostatic bag packaging
4 Interface Mode 1 * 7 * 2.54mm, plug in packaging, you can use the universal board and DuPont line
5 Operating Frequency 410 - 441MHz, 1MHz step by step, factory default 433.0MHz
6 Supply Voltage 2.5V - 5.5VDC, meet a variety of system requirements (If the voltage is smaller than 4.5V, the output power will decline, but it has little impact on the receiving performance)
7 Communication Level Maximum 5.2V, The difference between the recommended and supply voltage is less than 0.3V to reduce power consumption
8 Measured Distance (3.0VDC) About 8,000m. Test conditions: sunny, open, the maximum power, Antenna gains 5dBi, Higher than 2 meters, 2.4K air rate
9 Transmission Power Maximum 30dBm, about 1W, 4 levels adjustable (0-3), increase or deduct about 3dBm each level.
10 Air Rate 6 levels adjustable (0.3, 1.2, 2.4, 4.8, 9.6, 19.2Kbps)
11 Sleep Current 1.5uA (MD1 =1, MD0 = 1)
12 Transmitting Current 520mA@1W, (Voltage 5V)
13 Receiving Current 18mA (Mode 0, mode 1)
14 Communication Interface UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates
15 Driving Means UART serial port can be set to push-pull / pull-up, open-drain
16 Transmitting Length Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets.
17 Receiving Length Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets.
18 Module Address 65536 configurable addresses (Easy to network, support for broadcast and fixed transmission)
19 RSSI Support Built-in intelligent processing
20 Receiving Sensitivity -130dbm at 2.4Kbps (Receiving sensitivity has nothing to do with serial port baud rate or delay time)
21 Antenna Type SMA antenna/spring loaded antenna
22 Operation Temperature -40 ~ +85
23 Operation Humidity 10% - 90% relative humidity, no condensation
24 Storage Temperature -40 ~ +125
