E 200lm/W low UGR 100w 150w 200w 250w zigbee wireless control led high bay for warehouse
Feature

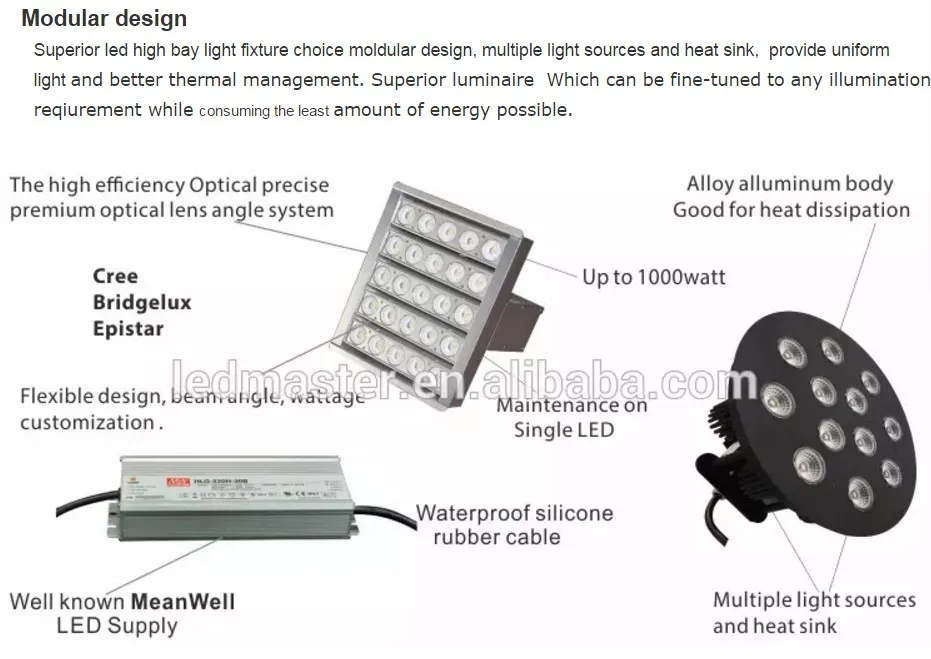

Premium Precise Optical Lens System, 2-10 times brighter than conventional lightModular Design, Easier mounting and maintenanceDirect Heat Path Technology, 2-5 times better stabilityAnti-Glare System, high quality light sources. IP66 waterproof 5 Years Warranty! Technical Parameter
ITEM
LED High Bay
ITEM NO
LS-HBN
Power 60W - 1000W
Epistar /Bridgelux /Cree
Input Voltage 90-295VAC 50-60HZ
Power Factor (PF)
>0.95
Power Efficiency >90%
Color Index(CRI)
Ra>75
Light Angle 10°, 25°, 40°, 60°, 90°
Color Temperature
2700-3500K
5000-6500K
6500-7500K
LED Luminous Efficiency 160lm / Watt
Luminous Flux (Typ.)
Power x 140lm
Life Span >80000 hours
Work Temperature:
- 25 ° C ~ 55 ° C
Storage Temperature: - 40 ° C ~ 80 ° C
Working Humidity
10 % ~ 90 % RH
IP Rating IP66
Light Attenuation(80000h)
30%

Advantage

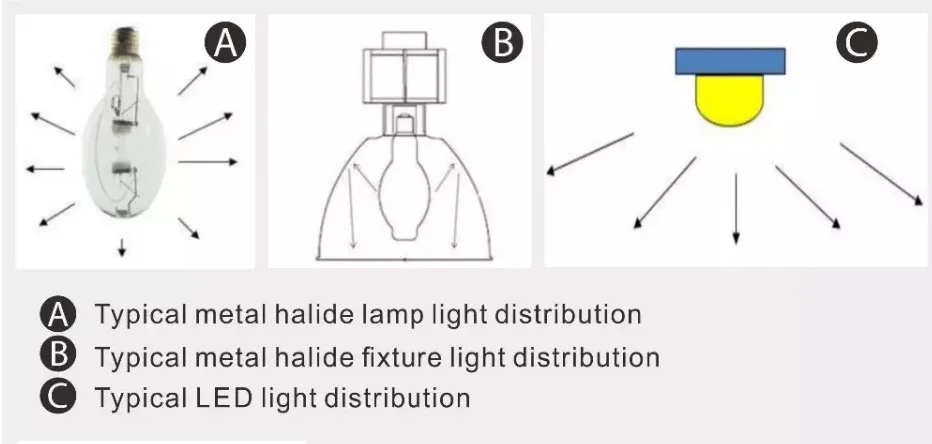

85% Luminous Flux Delivery to target
High Uniform light distribution

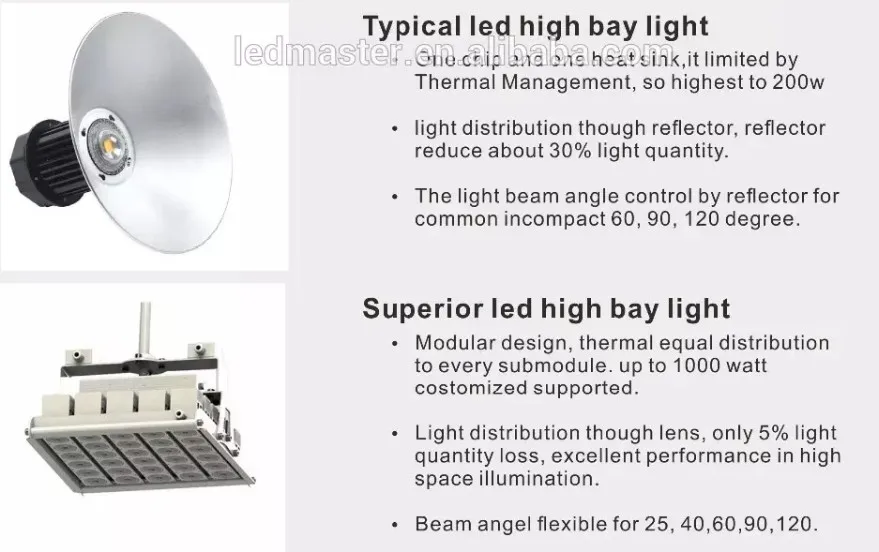

Multiple light sources and heat sink

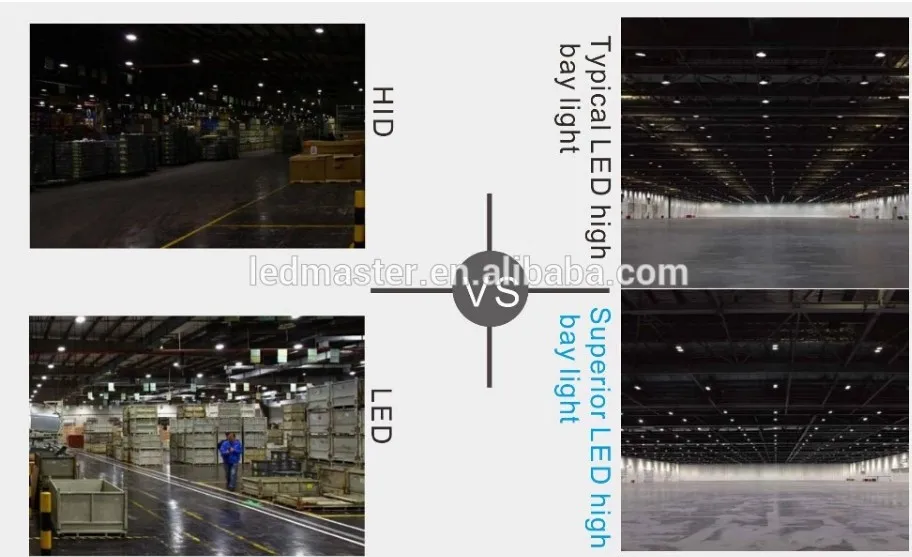

Replacement HID and Upgrade typical LED light

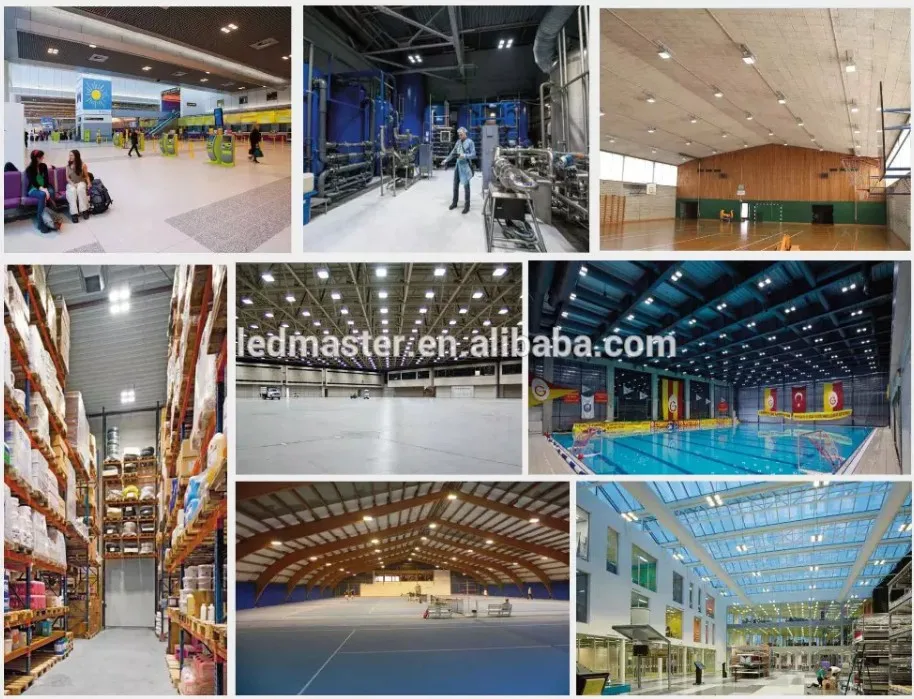

Applications
High bays are disigned to be used in very high areas approximately 8M-40M and greater to provide well distributed and uniform light for oper areas.The perfect pick for the warehouse, commercial big space. Common applications include industrial halls, showrooms and tetail environments, exhibition halls , indoor stadium etc.

Packaging & Shipping Modes Of Packing
Packing 1 Polyfoam with reinforce carton box, suitable for air transportation & air express
Packing 2 Strong polyfoam with wooden case,suitable for Ocean shipping.

Shipping
Convenient transportation to all over the world!
Air Express (DHL / UPS / EMS / FEDEX) home delivery for sample or small quantityAir Transport for small quantityOcean shipping for mass
Warranty & Payment Term
5 Year Warranty
If you products have quality problem, we provide 5 years warranty.
Payment Term
Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping Lead time : normally in 10-20 working days after deposit received. Sample policy : Samples are always availble for each model . Samples can be ready in 7~10 days once payment received. Shipping port: shenzhen,China. Discounts : We offer discount for big quantity. All the prices are based on EXW price,not included the freight and taxAbout LedsmasterLedsMaster is a 13-year powerful led lights manufacturer in ShenZhen, China, 100% independent R & D is the most outstanding features.
Below are some outstanding projects we done,
2006-2014, supply powerful strip light for Ericsson.
2014 Sochi Winter Olympic Ice Hockey stadium Lighting--223pcs 1,080watt stadium Led.
2014 we supplied hundreds of 720watt floodlight for SAINTS football stadium.
2016 we added 120pcs 1200watt floodlight for SAINTS football stadium(FIFA standard).
2016 we supplied hundreds arena flood light for Crystal Palace football stadium(FIFA standard) .
2013 to 2018, 5 KHL stadiums Led Lighting Supplying
There are some feature lights as below.

FAQQ1. Can I have a sample order for your led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
Q3. What about the lead time?
Sample needs 5-7 working days, mass production needs 25-30 working days.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx. It usually takes 4-7 days to arrive.
Airline and sea shipping also optional.
