1. MAIN APPLICATION
165W led street light low energy road light with zigbee dimming controller is mainly application of road and area lighting to highways, urban main roads & branch roads, country roads, factory outdoor roads, residence outdoor roads and etc.
2. DESIGN STANDARD
GB 7000.1-2007 Luminaires--Part 1:General requirements and testsGB 7000.5-2005 Safety requirements of luminaires for road and street lightingQ/SG 3-2012 Technical specification of luminaires for road and street lighting
GB 17743-2007 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipmentGB 17625.1-2012 Electromagnetic compatibility - limits - limits for harmonic current emissions (equipment input current ≤ 16A per phase) GB/T 18595-2001 Equipment for general lighting purposes--EMC immunity requirements

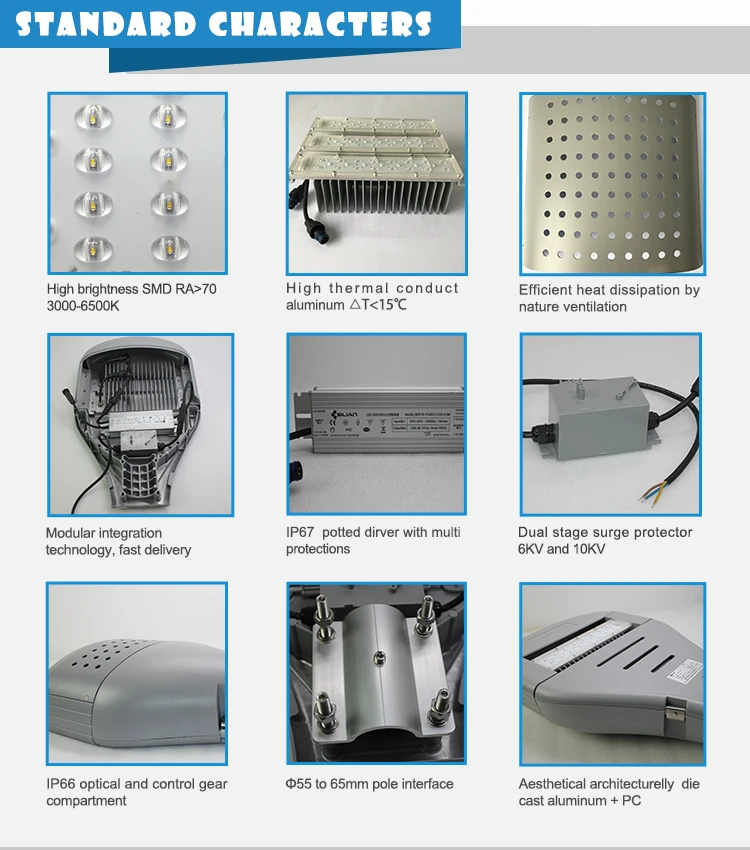

3. STANDARD CHARACTERS
165W led street light low energy road light with zigbee dimming controller - ANKUX.COM

High brightness LEDs, CRI RA>70, 100 to 130lm/w & 2700-10000K selectablePatent modular technology, high thermal aluminium conduct management system ensure temperature rise within 15 degress celsiusIndustrial grade design, zero pollution, zero glare, even light distribution>0.95Power factor >0.95, total harmonic distortion <10%AC90 to 305V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteferenceDC10 to 28V self-adaption when work with solar & wind power systemDual stage built-in surge protector 6KV and 10KVAesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment systemIP66 ingress protection to both optical and control gear compartmentLong maintenace free life, 50,000 hours for whole luminareMannual / Auto intelligent monitoring & dimming control is optional alongwith control system & Zigbee controller
4. STANDARD SPECIFICATIONS
SDL101 General Specification
Order Code SDL101-55 SDL101-110 SDL101-165 SDL101-220 SDL101-275 SDL101-330
Operating Voltage(V) 90 to 305V AC or 10 to 28V DC
Power Factor >0.95
Driver Efficiency >90%
Luminary Power(W) 55 110 165 220 275 330
Luminary Efficiency (lm/W) 100 100 100 100 100 100
Rated Lumen(lm) 5500 11000 16500 22000 27500 33000
CCT(K) 3000/4000/5000/6000/6500
CRI Ra>70
Operating Temperature() -40 to 55
Storage Temperature() -50 to 60
Service Life (H) >50000
Ingress Protection IP66
Housing corrosion free high pressure die cast Aluminium with silver colour corrosion resistant coating+PC
Intelligent Dimming Control Optional
Pole Interface(mm) Φ55 to Φ65
Mounting Angle (°) 12.5°
Weight(kg) 7.5 8.5 10 11.5 13 14.5
Dimension(mm) 550*400*155 590*400*155 670*400*155 710*400*155 780*400*155 850*400*155
