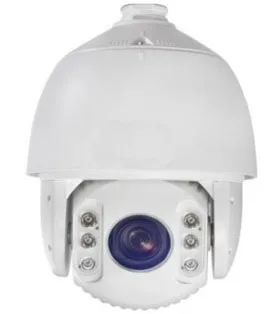

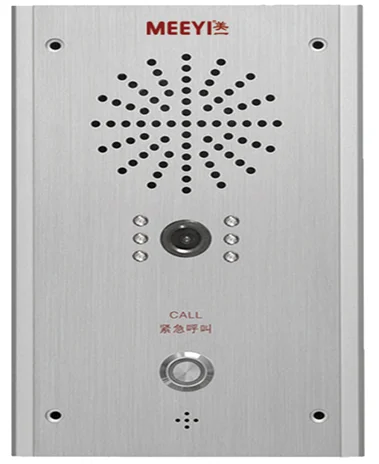

Smart street pole* Pole: 3 to 12 meter.* Led lamp: 30W to 180W.* Controller and Gateway: ZigBee/Lora/NB-IOT.* Camera: the smart street light video surveillance system is equipped with monitoringequipment on the light pole, reasonable use of existing resources, can be shared as muchas possible within the scope of the rules, and achieve seamlesss and seamlesscollaboration between various departments.* Atmospheric Sensor: the atmospheric monitoring and early warning function refers todividing the whole city into a unit grid according to certain standards, and installing andmonitoring No 2, SO 2 , O 3 , PM2.5 in the atmosphere at the streetlight end of the effective grid.* WIFI: by making full use of the urban fiber optic main network resources, WIFI can be fullycovered at low cost. The public can use WIFI to access the internet and enjoy the thrill ofsurfing the internet.* Intercom: When a robbery or murder is committed, it can immediately call the police and thepolice can quickly arrest the person.* Charging pile: People can use a specific charging card to swipe the card on the human-computer interface provided by charging post, and perform corresponding chargingmethods,charging time, cost data, etc. The charging pile display can display data such ascharging amount, cost, charging time etc.* LED display: the display screen of the smart lamp can be used as an advertisementpublishing platform, and the display screen is also an important carrier for linkage withvarious system.Camera* P1/2.5" progressive scan CMOS.* Up to 2560 × 1440@30fps resolution.* Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux@(F1.6, AGC ON) 0 Lux with IR.* 25× optical zoom, 16× digital zoom.* WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, RegionalFocus.* Up to 150 m IR distance.* 24 VAC & Hi-PoE.* Support H.265+/H.265 video compression.
LED display*Main Screen Size: 512mm*1024mm.*Overall size: 612mm*1224mm*100mm.*Brightness: 5500CD/m2.*Main screen material: Galvanized sheet.*Pixel density: 208x364dot.*Maximum power: 500W/Pcs.*Average power: 150W/Pcs.*Input power: AC100-240V 50/60HZ.*Protection level: IP65.*Weight: 30KG.*Operating temperature: - 40~+50.*Working humidity: 10~90%.*lifespan: 100000h.*Installation method: Side mounting.*Control method: 3G/4G/Wi-Fi;APP;Cluster terminal control.*Heat dissipation: Temperature-controlled intelligent fan screen has a longer life.*Power supply: Energy-saving brand power supply.*Cable:Rehearsal butterfly buckle.*Waterproof: Car door waterproof.Charging pile*Overall operating condition monitoring/Control protection;*Power supply loop power cut off in an emergency;*The board has a variety of expansion interfaces;*Customized peak and valley billing;*Swipe, APP(Scan code), smart and simple Charging operation;*Ensure customer charging data integrity and security;*High charging efficiency and efficiency of over 99%;*Size: 130×103×586mm;*Installation form: Embedded installation;*Working temperature: -30～+50;*Relative humidity: 5%RH～95%RH;*Input voltage: AC220V±10%;*Charging method: Single charge;*Total power: 7kW;*Power factor: ≥0.99;*Protection level: ≥IP54.Speaker*Network Interface: RJ45 10M/100M;*Network protocol: TCP/IP UDP;*Audio format: MP3/MP2;*Support code stream: 16K-320K;*Band width: 90-16KHz;*SIGNAL-NOISE RATIO: 91dB;*Rated power: 40W;*Speaker unit: 4*3";*Bracket front hole pitch: 520mm;*Size:(H*W*T) 460mm* 152mm * 100mm;*Power supply: 12V DC;*Installation method: Wall-mounted.One touch alarm*Power: DC12V;*Power consumption: ≤5W;*Network communication protocol: TCP/UDP/RTP;*Network communication rate: 10/100Mbps;*Audio sampling: 22.050kHz～44.1kHz, 16bit;*Bit transfer rate: 16kbps-192kbps;*Audio coding: SILK/PCM;*COMS color camera;*Interface: 12V power interface/An audio output/Quad short circuit input/Two output interface/An RJ45 interface*Embedded size: 201*114*35mm;*Product size: 204*117*41mm;
Certifications
