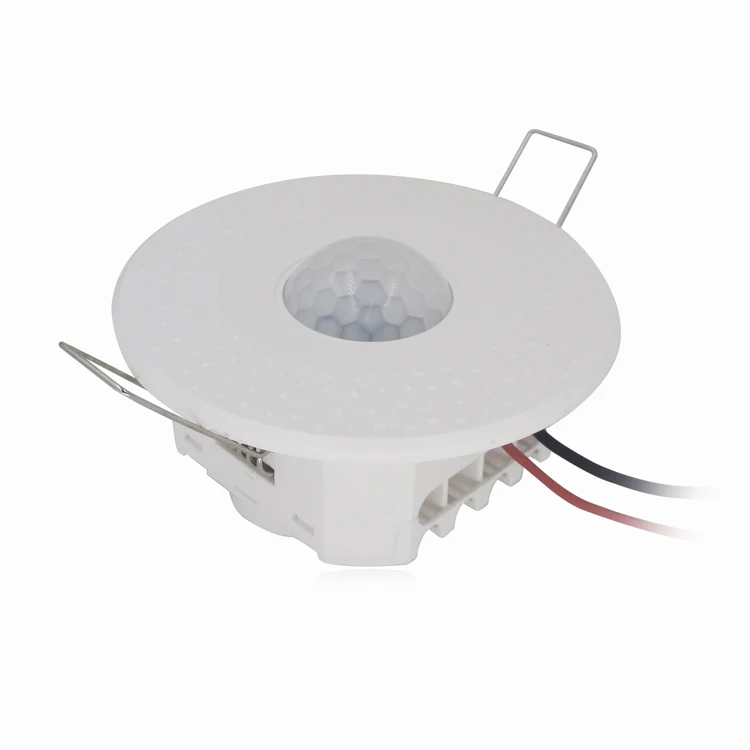

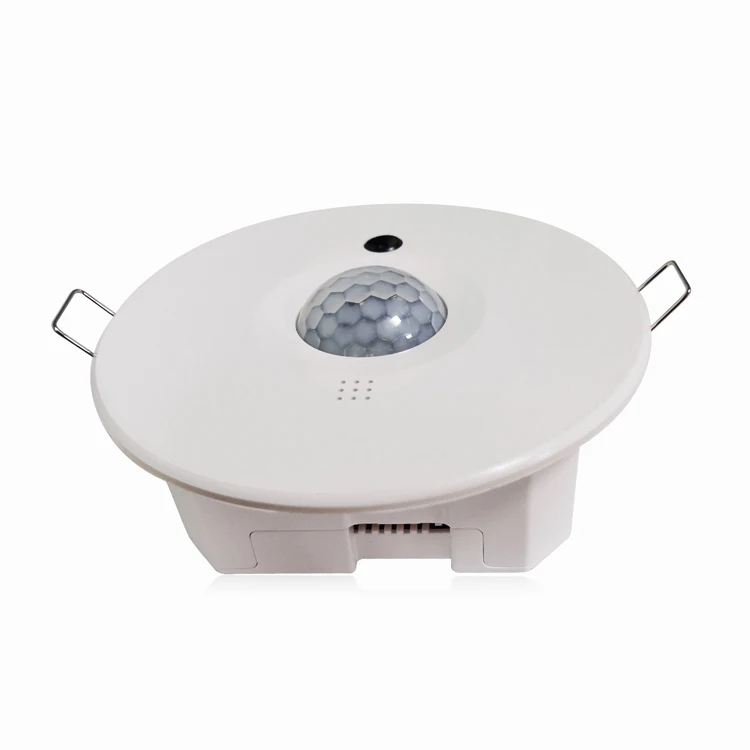

100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor with Relay factory price


Multi-functional Zigbee 3.0 standalone AC sensor AHOS934.
2 models available, occupancy+daylight+temperature humidity sensor, and PIR+daylight+temperature humidity sensor.
Advantages:

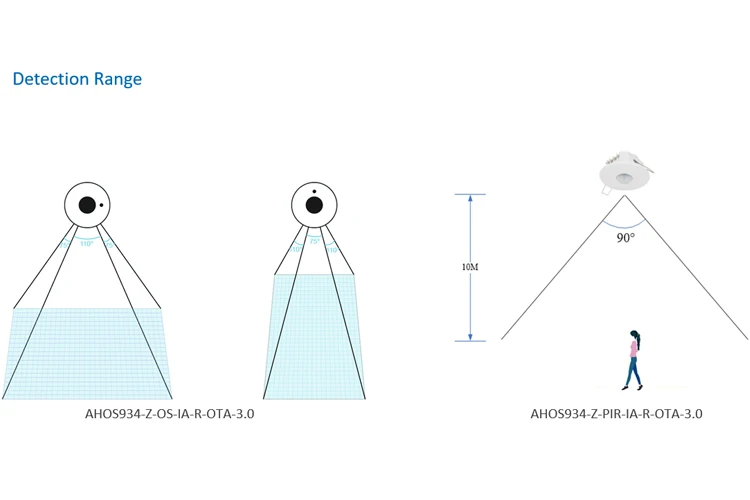

1. Real Occupancy sensor. 110°/75° detecting range, 4m installation height on ceiling .
A real occupancy sensor is to detect the presence of people, even theres no movement at all.
Eg.: When somebody is sitting in a chair, listening to music or attending a conference call, with very little/no movement, the lights above keep on 100% because the occupancy sensor tells the lights not to dim down. Its used for sitting areas, mostly commercial, such as office, hospital, library, bank, etc..
2. When used as a PIR sensor, it supports max 10m installation height, 90° detecting range. It means, besides commercial projects, it is also applicable to industrial cases, wall or ceiling mounting.
3. Two Daylight Sensor Modes.
a. Daylight constant illuminance mode: daylight harvesting for lamps in an area with equivalent ambient light, lamps on/off/dim automatically to keep at a target lux. Detect range: 0-65528lux
b. Daylight threshold mode: To on/off the lamps according to a preset threshold value (range from 10-8000 LUX).
4. Temperature humidity Sensor integrated.
5. Power metering, for lamps in the same circuit ahead of the sensor.



FAQ
1. WHY ZigBee control ?
Compare to WiFi control, more secure & larger node network. Compare to DALI, wireless and Over The Air update.
2. Which standard?
Led drivers& controllers : ZigBee 3.0 standard (compatible Alexa/hue/homekit-hue for smart home),
iLightsIn Pro system : private secure protocol , support customize.
3. Control distance?
30meter/100meter, between 2 lamps or 2 Zigbee devices (Sensor, switch, controller, driver or bridge).
4.Support commercial&industrial lighting project?
Yes, iLightsIn Pro system offer Lighting solution for commercial&industrial field.
5. Android, ios App available?
Yes, free Android, ios App - iLightsIn Pro. Support local control&remote control in phone or Pad.
6. PC server local control &remote control?
Yes, support PC server APP local control without internet access, cloud server remote control with internet access.
Part no.
AHOS934-Z-XX-IA-R-OTA-3.0
AHOS934
project name/ index
Z
ZigBee
XX
Sensor option
OS
Occupancy sensor
PIR
PIR motion sensor
IA
internal antenna
R
Relay
OTA
over the air upgrade
3.0
ZigBee 3.0



Parameter
Model
AHOS934-Z-OS-IA-R-OTA-3.0
AHOS934-Z-PIR-IA-R-OTA-3.0
Max installation Height
4m
10m
Detect Range
110°/75°
90°
Operating Temperature
-20 to 30
-20 to 50
Installation
Ceiling
Ceiling/Wall
Input Voltage
100-277V ac 50/60Hz
Control Range
30m
Hole size (Ceiling mount)
105mm
N.W.
163g
G.W.
183g
Size
113.7mm(D)x50.2mm(H)
Package Size
12*12*6.5mm
Package
1PCS/ Package
Housing Material
PC
