100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v

IoT / ZigBee

100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v

ALC501 is a kind of 2.4G ZigBee LED controller with low cost, low consumption, wide working voltage (PWM/0-10V) based on IEEE 802.15.4. It also supports ZigBee 2007 Pro protocol stack. It applies to LED street lighting, office, home, and industry area. The controller can work together with MEANWELL and MOSO LED driver for PWM or 0-10V. And it also works with led lighting control system to achieve long-distance control by PC, mobile phone, tablet, touch panel and remote control.
100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v - ANKUX.COM

Embedded ZigBee TechnologyInput voltage: 100V-277V AC2-channel output to realize CCT adjustable functionWith microwave motion sensor inputSupport all 0-10V dimmable LED driverIndustrial grade working temperatureWith AC output 100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v - ANKUX.COM

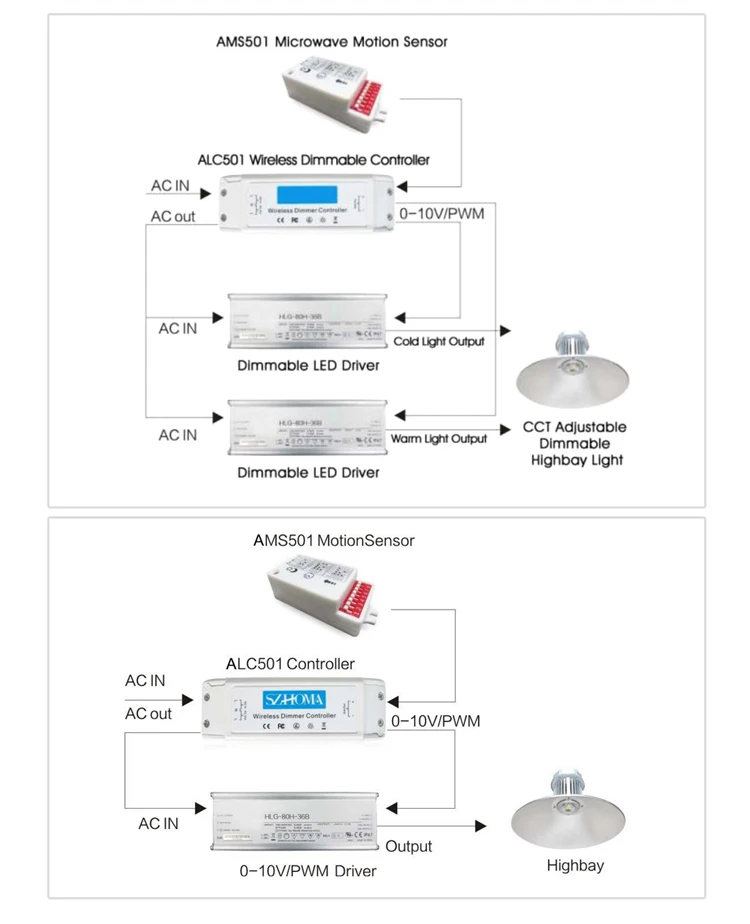

Item
Comment
AC In
100-277V AC
AC Out
100-277V AC (to constant current power)

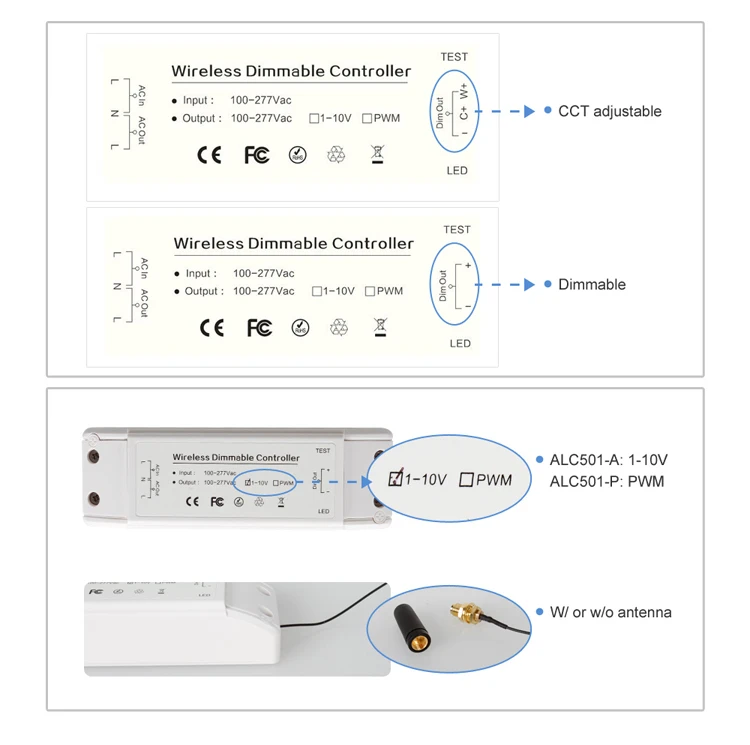

Dim Out
PWM/0-10V
100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v - ANKUX.COM

Parameters
ALC501-P
ALC501-A
Input power
AC100-277V AC
PWM output voltage
100Hz - 20K
/
PWM Duty
0-100%
/
PWM output voltage
10V
/
Output voltage
/
0-10V
Current
20mA
Wireless frequency
2.4GHz
Transmission distance
200M
Operation temperature
-20°C to 70°C
Power supply
3 in1 power supply such as MEAN WELL and MOSO
100-277v ac 0-10v or pwm smart zigbee controlled led dimmer controller timer 0-10v - ANKUX.COM
