YJLV YJLV32 Low Voltage Power Cable Thin Steel Wire Armoured Lighting Cable

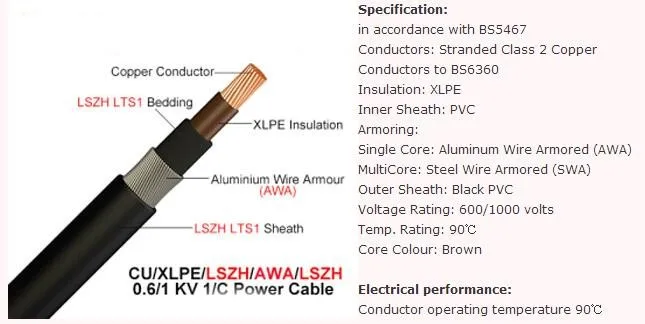

What is XLPE insulated power cable?
XLPE insulated power cable has a number of advantages than paper insulted and PVC insulated cables. XLPE cable has high electric strength, mechanical strength, high-ageing resistance, environment stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Application:
Single core 600/1000V XLPE insulated PVC sheathed, armoured power cable is mainly used in power stations, public transport systems, airports, petrochemical factories, hotels, hospitals, high-rise buildings etc.

Using features:
1. Rated voltage: 600/1000V
2. No. of core: Single core
3. The highest allowed operating temperature of conductor for long-term working is 90. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250.
4. D.C. resistance of the conductor complies with the stipulations of 600/1000V, 3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
5. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit.
7. Working Frequency Voltage Test: 3.5 Uo/5min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.
9. Minimum Bending Radius: 12D overall diameter(70mm2 -1000mm2)
The structural parameters:
ConductorFTX300 1RCZ1MZ1-R
Core number/cross-sectional areaNumber of strands/Monofilament diameterNominal thickness of insulationNominal thickness of sheathOutside diameter UNDER shieldingOutside diameter OVER inner sheathArmoured layer diameterTotal nominal diameterWeight
MM²NO./MMMMMMMMMMMMMMKG/KM
1x70 19/2.14 1.1 1.8 15.2 17.6 20.1 23.9 1400
1x95 19/2.52 1.1 1.8 17.1 19.5 22.0 25.8 1700
1x120 37/2.03 1.2 1.8 19.0 20.8 24.0 27.8 2000
1x150 37/2.25 1.4 1.8 21.0 22.8 26.0 29.8 2400
1x185 37/2.52 1.6 1.8 23.2 25.0 28.2 32.0 2800
1x240 61/2.25 1.7 1.9 26.1 27.9 31.1 35.1 3500
1x300 61/2.52 1.8 2.0 28.7 30.5 33.7 37.9 4200
1x400 61/2.85 2.0 2.1 32.5 34.3 38.3 42.7 5400
1x500 61/3.20 2.2 2.2 36.0 37.8 41.8 46.4 6500
1x630 127/2.52 2.4 2.3 40.4 42.2 46.2 51.0 8200
1x800 127/2.85 2.6 2.5 45.5 47.3 52.3 57.5 10400
1x1000 127/3.20 2.8 2.7 50.4 52.2 57.2 62.4 13000

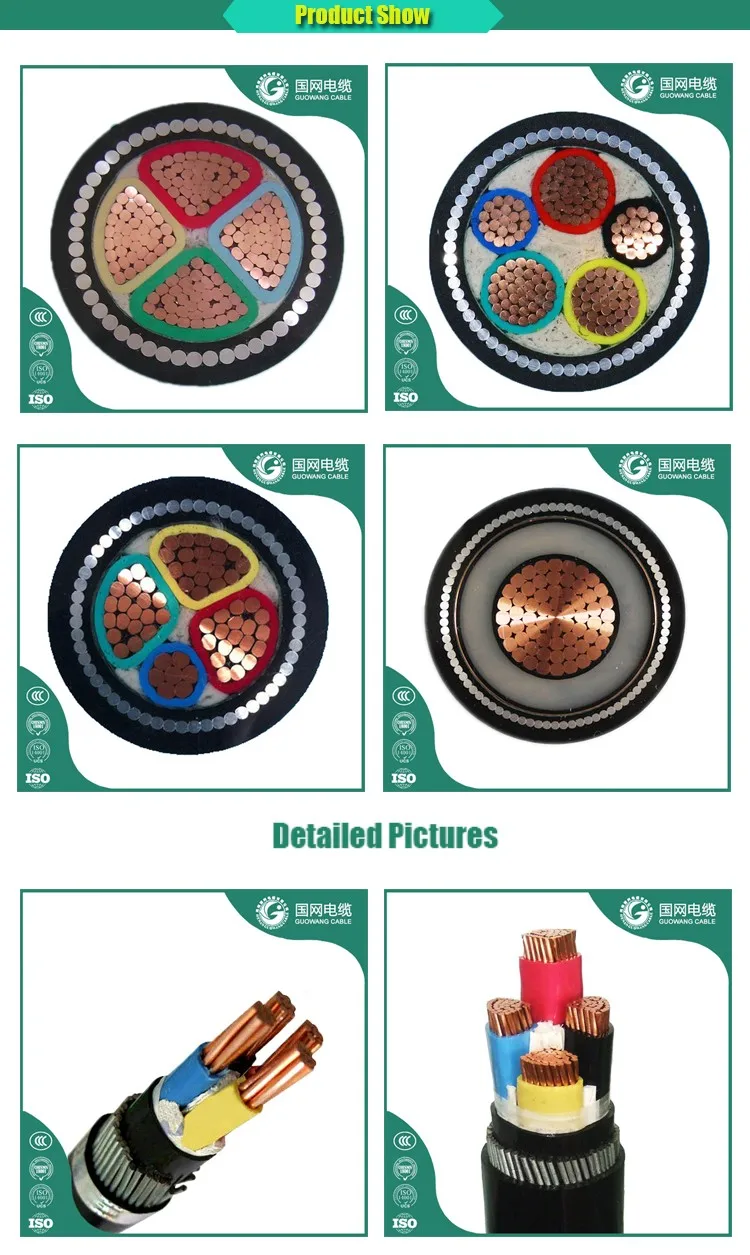

Pictures of Rail, Metro And Light Rail, Oil & Gas, And Hydro & Underground 0.6/1KV Single Core Aluminium Armoured Cable

Application of Rail, Metro And Light Rail, Oil & Gas, And Hydro & Underground 0.6/1KV Single Core Aluminium Armoured Cable

Notes:The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
Packaging & Shipping

Packaging: Rolls,Wooden drum or according to your request.
Shipping: 15-20 working days after the deposit and the order confirmed.
