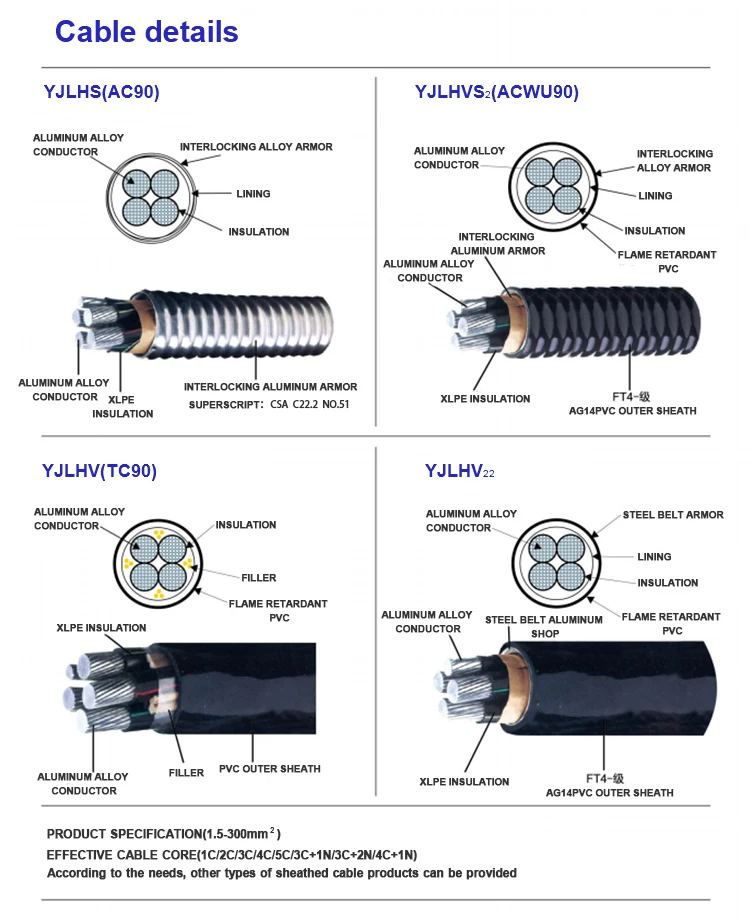

YJLHVS2(ACWU90) 4*240 Aluminum alloy low voltage wire and cables electric cable cable



Product characteristic analysis:
Cross-linked polyethylene is the use of silane cross-linking or peroxide cross-linking method to transform polyethylene into thermosetting cross-linked polyethylene, thereby greatly improving the heat resistance, aging resistance and service life of the cable, and environmental protection .

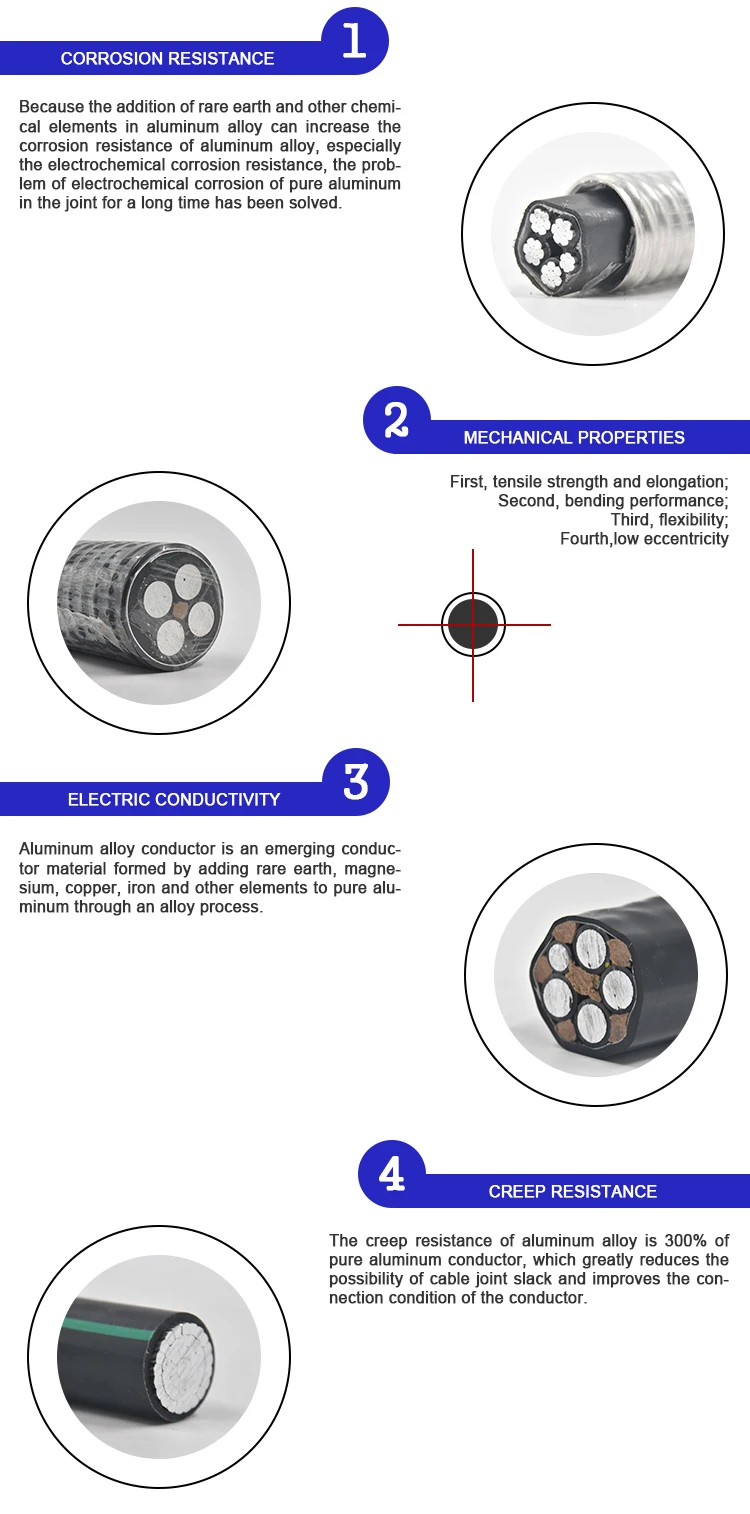

The aluminum alloy conductor independently developed by our company is resistant to creep, high flexibility, stable connection, strong elongation, and low rebound. Compared with pure aluminum conductors, it not only has excellent economic performance but also has excellent mechanical performance, safety performance, connection performance, etc. characteristic.

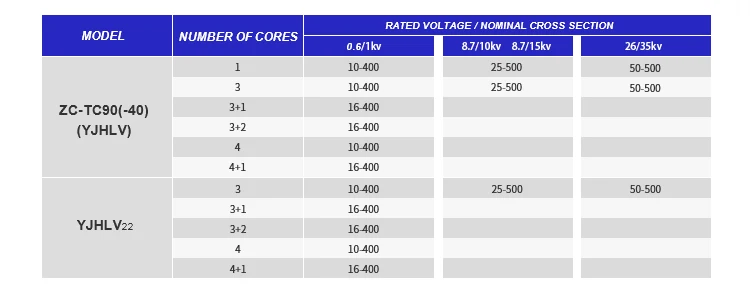

4 core
Conductor nominal cross section (mm2) Conductor diameter (mm) Insulation thickness (mm) Outer diameter of insulating conductor (mm) Approximate cable outer diameter (mm²) Cable approximate weight (kg/km)
4*10 3.6 0.7 5.0 21.2 364.5
4*16 4.8 0.7 6.2 24.0 499.2
4*25 6.0 0.9 7.8 25.8 570.0
4*35 7.0 0.9 8.8 28.2 709.8
4*50 8.3 1.0 10.3 31.9 933.4
4*70 10.0 1.1 12.2 36.5 1265.5
4*95 11.6 1.1 13.8 40.3 1655.2
4*120 13.2 1.2 15.6 44.7 2064.7
4*150 14.8 1.4 17.6 49.5 2547.7
4*185 16.2 1.6 19.4 53.8 3018.9
4*240 18.4 1.7 21.8 59.6 3766.1
4*300 20.6 1.8 24.2 72.3 5651.5
4*400 23.5 2.0 27.5 81.3 7200.2
4*500 26.5 2.2 30.9 84.7 7023.0


Current carrying capacity of cable (A)
Nominal section (mm2) E F1 F2 G1 G2 H
10 72,59 64 67 92 86 71
16 91,79 85 91 113 102 92
25 109,102 108 113 139 124 109
35 135,123 133 141 175 156 137
50 166,158 168 178 214 192 167
70 214,191 210 221 275 251 216
95 261,231 256 271 338 308 263
120 305,273 302 327 396 361 308
150 351,311 351 368 458 419 354
185 404,352 403 427 524 483 407
240 479,414 484 507 623 577 485
300 555,482 564 586 710 672 559
400 672,590 683 717 865 816 675
500 771,678 796 831 1003 948 776

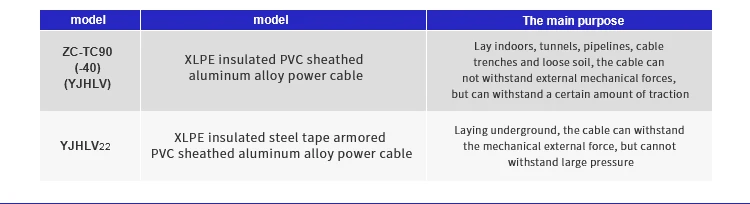

Product use requirements
It is suitable for 600v-35kv voltage level, dry or wet places at 90 ° C, indoor or outdoor installation, vertical installation, bracket or wall number, or underground direct burial installation, with a minimum bending radius of 7 times of the outer diameter, or 360 ° bending, and suitable for civil, commercial, industrial, School, large venues and other places.
