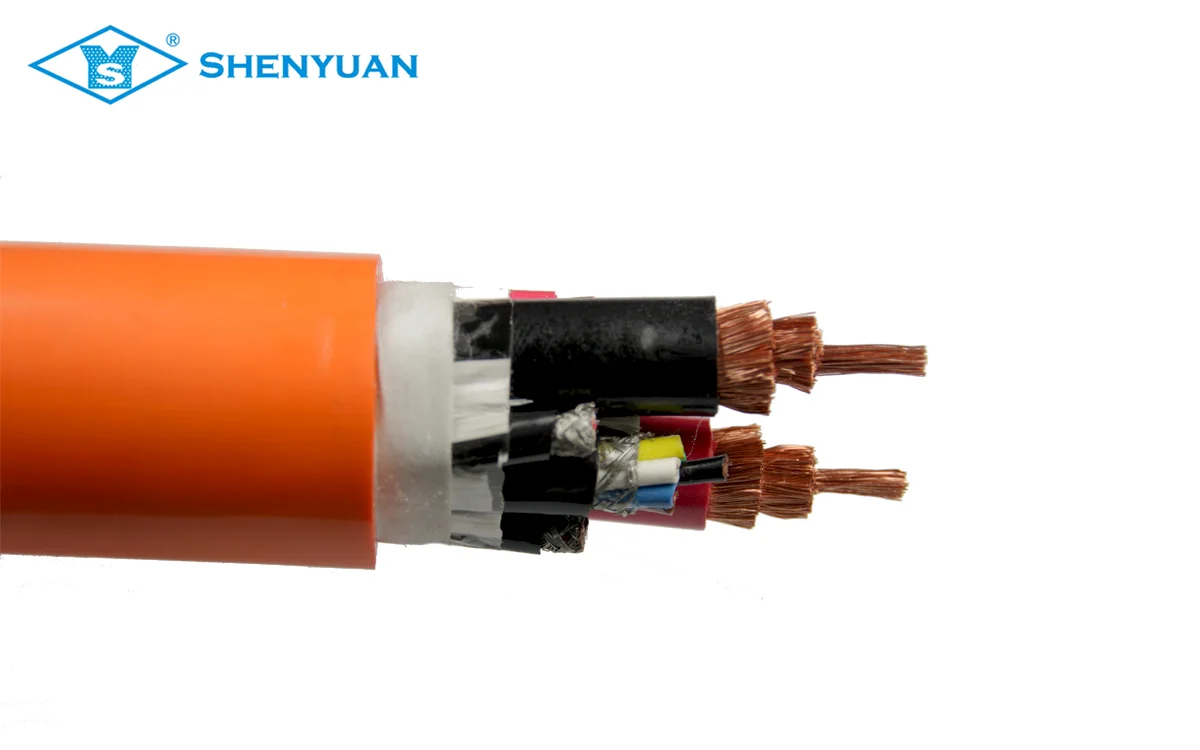

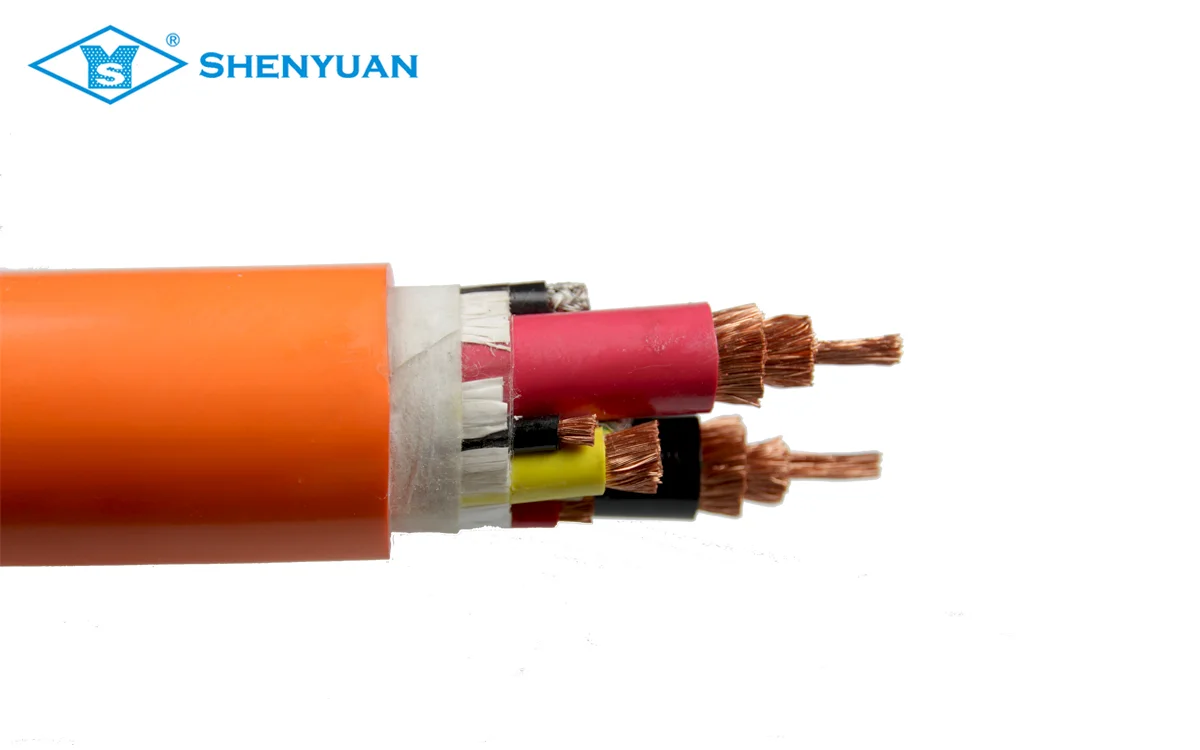

XLPE insulated 1500V Electric Vehicle Car EV Charging XLPE Cable

Cable / Power Cable

"Protecting high-temperature electricity safety" is our development policy, Carefully manufacturing every meter cable, protect the high temperature environment electricity safety is the mission of the company.
Applications:
battery power output, controller connection, motor connection
Wire material:
Conductor: annealed soft copper wire
Insulation: 125 / 150 XLPE / 125 environmental TPE
Shielding material: tinned copper wire, aluminum foil Mylar
Sheath: 125 / 150 XLPE/ 125 environmental TPE
Wire characteristics:
Rated voltage: 1500V, spark voltage 10KV
Bending radius >50D, easy to install
Wire single flame retardant: VW-1
Insulation material: UL94-V0
Halogen-free, environmentally friendly wire
Shield density: >90%, with good resistance to electromagnetic interference
Production Time:
7~12 days for 1,000~300,000 wires;
large quantity order Can be negotiable.
Sample wires are available for you to check the quality.
Section Area mm2 Conductor construction NO.×mm Insulation thickness mm Number of cores m/coil
4 56×0.30 0.7 2~12 100
6 84×0.30 0.7 2~10 100
10 84×0.40 1 2~5 100
16 126×0.40 1.2 100
25 196×0.40 1.3 100
35 494×0.30 1.4 100
50 396×0.40 1.6 100
70 511×0.40 1.6 100
95 760×0.40 1.8 100
120 608×0.50 2 100
150 756×0.50 2.2 100
185 925×0.50 2.4 100
240 1221×0.50 2.6 100
XLPE insulated 1500V Electric Vehicle Car EV Charging XLPE Cable - ANKUX.COM

XLPE insulated 1500V Electric Vehicle Car EV Charging XLPE Cable - ANKUX.COM

More Choice in Cable
More Choice in Cable Configurations
Custom Engineered to Your Specifications and Designs
Multi conductor cables
Multi-pairs cables
Microminiature cables
Hybrid cables
Composite cables
Lead wires
Litz wires
Conductor Materials
Conductors:
36AWG to 4/0 AWG
Bare copper
Tinned copper
Silver-plated copper
Nickel-plated copper
Copper alloys
Copper and nickel alloy
Pure nickel
Fibers and Yarns
Fiberglass
Silica sand
Aramid fiber
Stainless steel yarn
Insulating and Jacketing Compounds
Thermoplastics
PVC, SR-PVC
PP
PE
PUR
Nylon
TPE
PEEK
Thermosets
XLPE
Fluoropolymers
PTFE
FEP
PFA
ETFE
Silicone rubber
Silicone
High tear resistance silicone rubber
Flame-retardant silicone
High-voltage silicone
Shielding
Application:Overall and individual conductors/pairs
Types: Foil, braid,
