Products Description
Product name
Enamelled aluminum wire, round aluminum winding wire, magnet aluminum wire
Application
Transformer, Motor, Pump, Generator, Reactor, Inductor, Choke, Welding machine, etc
Conductor
Round 99.9% pure aluminum rod
Sizes
0.20-5.00mm, AWG 5-32, Swg6~Swg39
Elongation
≥15%
Tensile strength
130Mpa~150Mpa
Thermal class
130C~220C
Standard
IEC 60317, NEMA MW, GB JIS
Insulation material
PEW UEW EIW EI/AIW AIW
Certificates
ROHS/UL/CCC/VDE/SGS/ISO9001/ISO14001/CNAS
Color
Golden, Brown, Black (according to the wire diameter)
Type
Polyester
Modified Polyester
Polyurethane
Polyesterimide
Polyamide-imide
Polyamide
Code
PEW, QZ
PEW, QZ
UEW, QA
EIW, QZY
EI/AIW, QZY/XY
AIW, QXY
Thermal Class
Class B, 130
Class F, 155
Class F, 155
Class H, 180
Class H, 200
Class L, 220
Insulation thickness
Grade 1, 2, 3
Standard
IEC 60317, NEMA MW, JIS
Characteristics
Good heat resistance and mechanical strength.
Low cost.
High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance
Solderability(no need to remove the insulation).
High frequency resistance and dyeability
Good thermal shock resistance and refrigerant resistance.
Excellent chemical resistance, abrasion resistance
More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance
Highest heat class
High heat resistance, good solvent and refrigerant resistance
Our Advantages
☑Full set ceitifications (UL, ISO14001,ISO9001)
☑Over 2000 tons wire in stock--lower MOQ &Fast delivery(10-12 days)
☑EAL, ECW, ECCA, all can produce
☑ Various type of spool available (PT4-PT270, DIN250)
☑ Long quality gurantee (30 days after you received the goods)
☑OEM service available, special supporting policy for distributors, contact us to be first distributor inyour country, let's work together to enlarge your sales
☑ Free samples

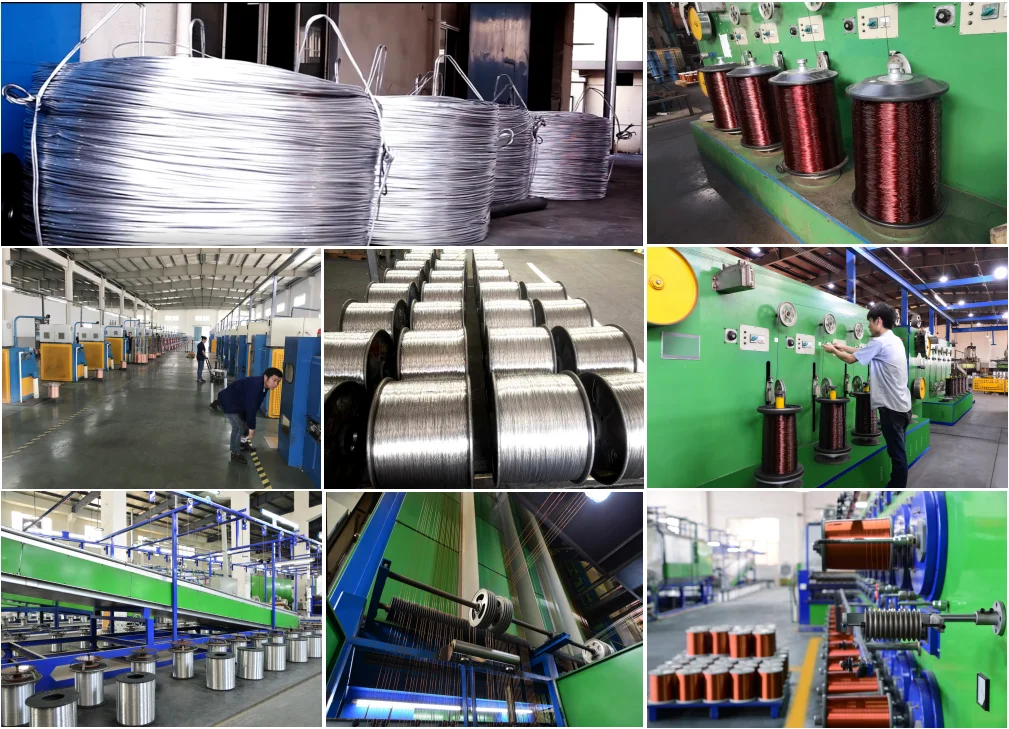

Manufacturing Technique

Advantages of enameled aluminum wire:1) The cost of aluminum wire is 30-60% lower than copper wire, which saves the cost of
production .
2) The weight of aluminum wire is only 1/3 of copper wire, which saves the transportation cost.
3) Aluminum has a faster speed of heat dissipation than copper wire in the production.
4) For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

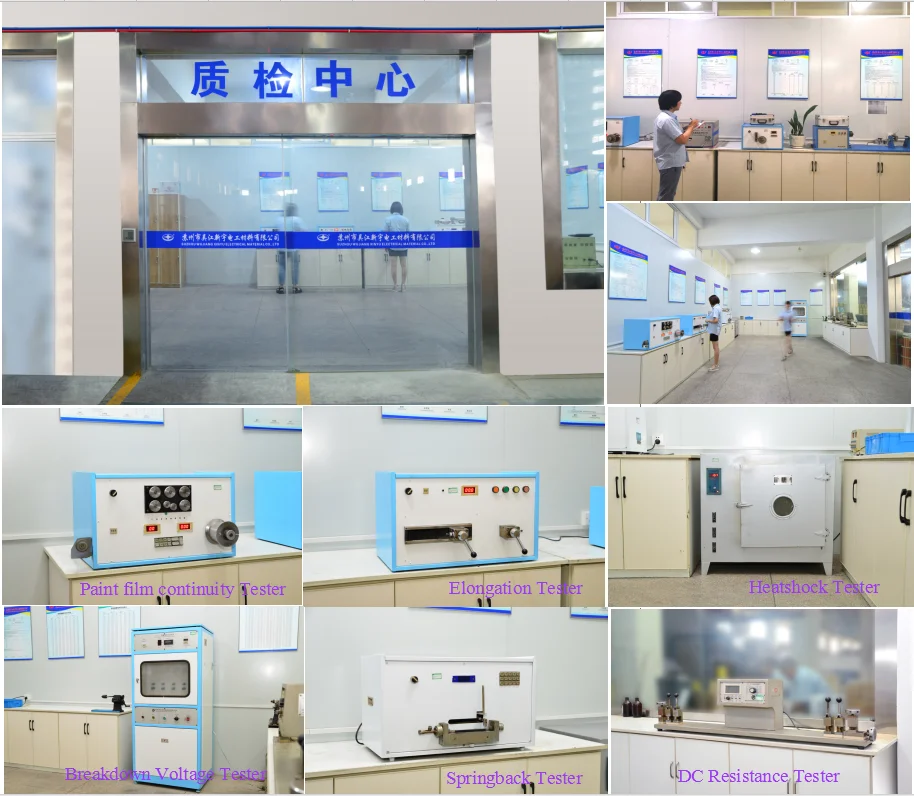

XINYU internal factory standard is 20% more strict than IEC 60317, with a full set ofCNAS L0599 Testing Centerapproved electronic equipment
