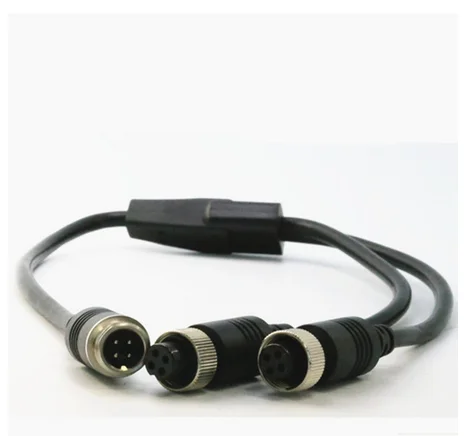

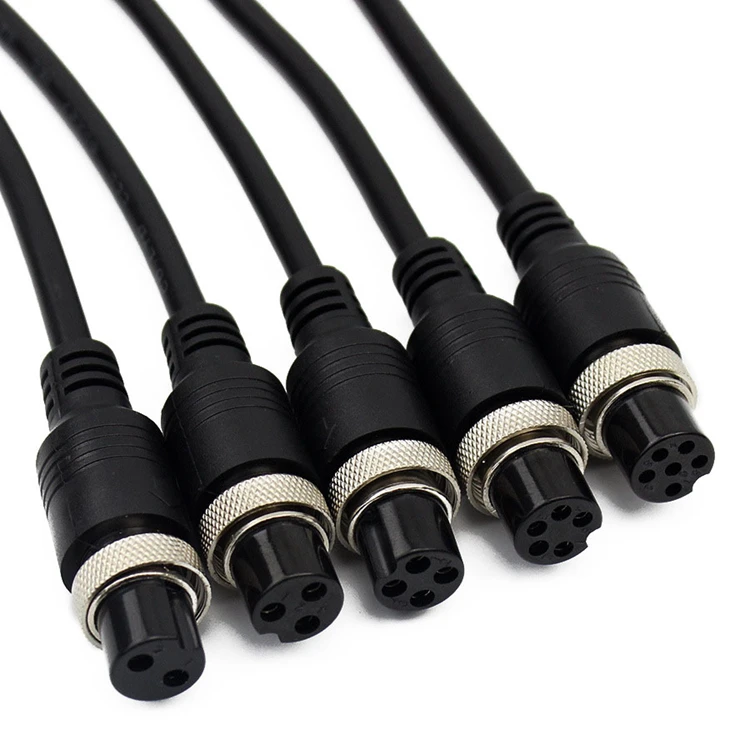

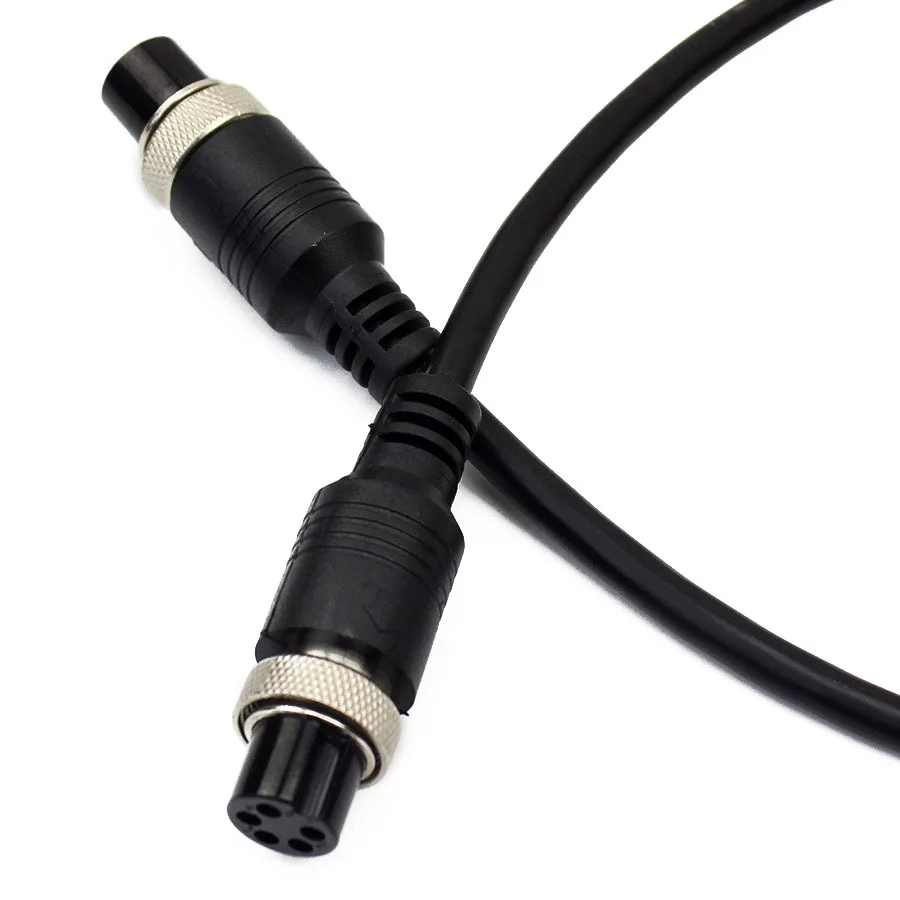

waterproof extension cable M12 4 pin mini DIN connect aviation plug

Cable / DIN Cable

waterproof extension cable m12 4 pin mini DIN connect aviation plug MODEL
waterproof 4 pin aviation extension cable din connector for car rearview camera
No.
QY-151023
SPECIFICATION
(#26*1C+S30/0.10BC)+#26*3C+AL OD5.0 or custom
PAGE
1
VERSION
1
TECHNICAL PARAMETERS
CONDUCTOR
(AWG) SPECIFICATION
26
MATERIAL
bare copper
CONFIGURATION
10/0.120BC±0.007mm
INSULATION
AVG. THICK
0.26mm
OVER DIAMETER
1.00±0.05mm
MATERIAL
PVC
COLOR

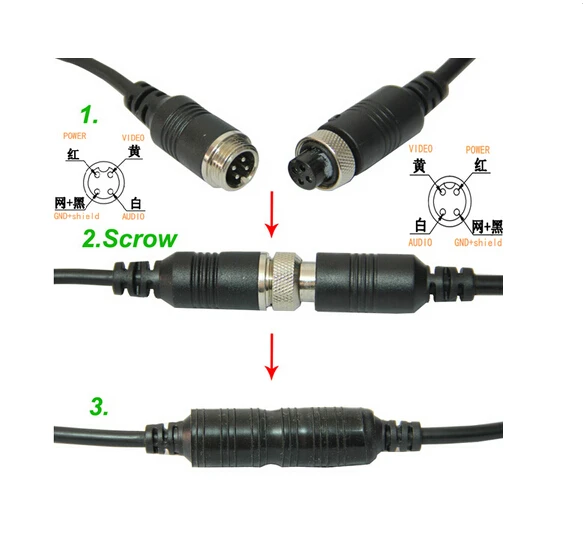

Red/green/black/yellow(wrap shield)
SHILED
MATERIAL
bare copper
CONFIGURATION
30/0.10±0.005
JACKET
AVG. THICK
1.25mm
OVER DIAMETER
5.0±0.1mm
MATERIAL
PVC
COLOR
black
ELECTRICAL CAPABILITY
RATED TEMPERATURE
-10~80
RATED VOLTAGE
30V
COND. RESISTANCE
159.15Ω/KM-20
INSU. RESISTANCE
5 MΩ/KM-20
SPARK TEST
500V
DICLECTRIC STRENGTH
500V/MIN
AL MYLAR
COVERAGE
100%
OVERLAP
25%
