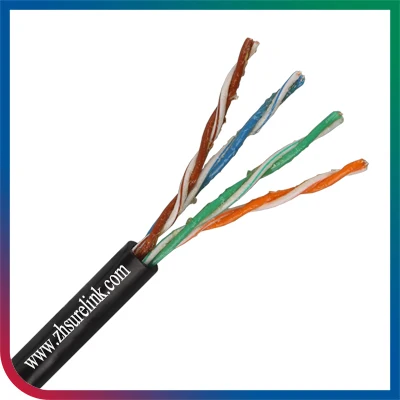

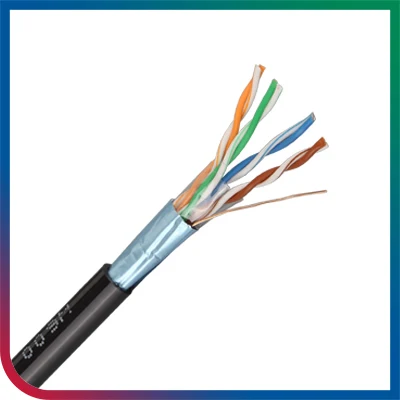

Surelink Water resistant underground Lan Cable ftp cat5e f/utp cat5e cat6 gel filled or jelly filled
Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation:Solid HDPE;
4.Eco-friendly PE Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability:Additional cable colors available.
Electronic Characteristics
Impedance:100± 15(ohms).
Rated Temperture:75º C
DC Resistance unbalance(%):Max2.5
DC Resistance 20º C:8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance:330(Pf/100m)
Transfer Impendance:Max 10 mohms/m@100MHz.
Installation Resistance:>5000MΩ *KM
Dielectric strength:DC 2500V 2S
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Transmission Performance for reference
| Item Name | FTP CAT5E Lan Cable |
| TYPE | Cat5E |
| Conductor | CCA or 24AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | HDPE |
| Drain Wire | 24AWG |
| Shielding | PET/ Aluminum Foil |
| Application | Lan cable |
| Jacket | PE |
| Operating temperature | -50 ° C - +70 ° C |
| Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
| Certificate | CE/ISO/RoHS Approved |
Package Details:
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
| OEM / Related Production For Lan Cable |
OEM custom-made production according to different customer~s request. Shape, PVC ,color, Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of below request are available.
| Product | Network Lan Cable |
| Type | CAT3/CAT5E/CAT6/CAT6A/CAT7 |
| Conductor | 23 AWG/24 AWG/26 AWG BC/CCA |
| Insulation | HDPE (high density polyethylene) |
| Shielding | Pet Tape/ Aluminum Foil |
| Ripcord | Nylon |
| Cross | PP |
| Drain Wire | 0.40mm tinned copper/CCA or BC |
| Jacket | PVC/LSZH/PE |
| Operating temperature | -20 ° C - +60 ° C |
| Working Life | 20~25 years |
| Applications | Computer network cabling project |
| Broadband network communication |
| Digital ISDN network and ATM 155mbps network |
| Long distance and local area network commubication |
